Product Description
Small jelly beans gummy bear ice candy pouch filling packing machine
Are you looking for an automatic sachet packing machine to start a new business or upgrade your current productivity? DOUBLE MACHINE provides a fully automatic packing solution suitable according to your requirement. Multiple filling systems are available for food packing, granule packing, liquid packing, or powder packing, including volumetric, multi-head weigher, servo auger, or liquid does option.

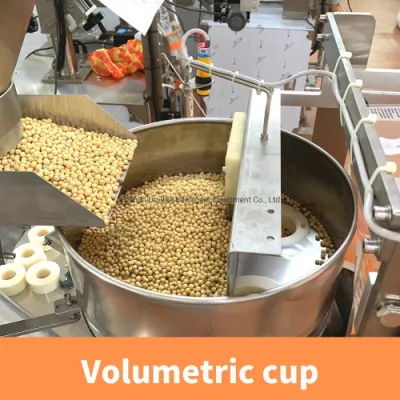

before we turn on the packing machine, we put the products into the hopper which is made of 304 stain steel. The product will be weighed by the different filling systems, for example, granules like rice, sugar, and tea leaves weighed by a volumetric cup or multi-head weigher.
2. P acking film transport

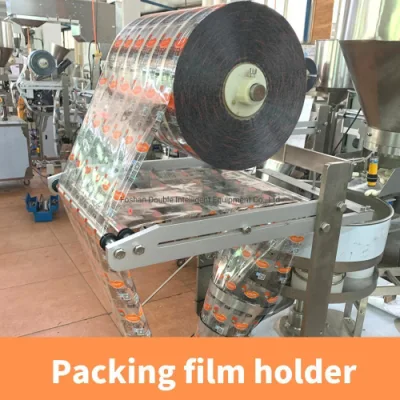

when the granule vertical packaging machine is operating, a single sheet of packing film material is usually pulled off the roll by film transport belts, which are positioned to the bag forming.
3. B ag forming
From here, the film enters a forming tube which is customized based on customer bag width. It is folded around the forming tube with the two outer edges of the film overlapping each other. This is the beginning of the bag-making process.
4. B ag sealing and cutting
After the product is filled and inside the bag, the cutter who has a heater inside moves forward and cuts the bag. This is the end of the whole packing cycle time on a vertical packing machine.
5. Other optional equipment
The finished bag can be discharged onto a conveyor or to other machines like a check weigher, metal detector, carton packing machine, etc.
Depending upon the packing products and customer requirements, below are some optional devices for reference.
- Various filling systems for powder, granule, liquid, snacks, coffee, etc.
- Date coding printer
- Nitrogen filling
- Role hole or euro slot hole punching
- Tear notch
- Weigh checker
- Metal detector
- Box carton packing machine
- Labeling machine
| Machine model | DB-320A |
| Packing speed | 10-60 bags/min |
| Filling range | 5-200 ml |
| Packing accuracy | depend on the material |
| Bag length | 40-200 mm |
| Bag width | 50-150 mm |
| Bag type | pillow bag, 3/4 side bag, stick bag, gusseted bag |
| Film material | Heat Sealable PE film & Laminated Film, such as PE/PET, PE/AL/PET, BOPP, LDPE, etc. |
| Film thickness | 0.05-0.09 mm |
| Film max film width | 320 mm |
| Machine dimension | L 1100* W 755 * 1540 mm |
| Machine voltage | 220V, 50Hz/60Hz |

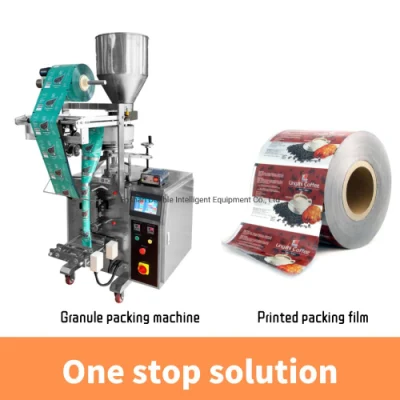

This automatic vertical form fill seal packing machine is suitable for weighing and packing grain, stick, slice, globose, and irregular shape products such as puffed food, snacks, candy, jelly, seeds, almonds, chocolate, nuts, pistachio, pasta, coffee bean, sugar, chips, cereals, pet food, fruits, roasted grains, frozen food, vegetable, fruits, hardware, etc.
The packing machine starts with a large roll of film, fills the package with a product, then seals it into the shape of a bag. This VFFS packaging machine put a stop to human error or mistakes, inconsistent quality, increasing labor costs, and inefficiency production process.
Bag types
Suitable for different bag types packing, pouch bags, stick bags, 3-side seal bags, 4-side seal bags, irregular shape bags, pouch bags, stand-up pouch bags, etc.
Foshan Double Intelligent Equipment Co., Ltd, one of the leading manufacturers of packing machines since 2010, we are engineers, designers, innovators, material and software specialists, and problem solvers. Whether your company is a start-up or a well-established business, Our machine, solution, and service have always been about return on investment, long-term value, and end-to-end solutions for customers.
With 5 professional workshops, we design and manufactures VFFS packing machine, flow wrap packing machine, and premade pouch packing machine. Our portfolio also includes the best-selling botting filling machine, capping machine, and cartooning machine.
Our systems and equipment help produce a wide range of solutions for food packing, liquid packing, powder packing, coffee powder packing, hardware packing, consumer product packing, etc.
Benefiting from favorable local material resources and our high flexibility as a direct factory, we ship reliable CE-certified packaging equipment to Europe, America, the Middle East, and Southeast Asia at more competitive prices and faster schedules. We will work with you to arrive at just the right manufacturing solution. Whatever you need to succeed, DOUBLE MACHINE is there for you, to deliver it.
1. How to find a solution suitable for my product?
2. How easy is it to operate packing machine?
3. How much does the packing machine cost?
4. Which packing machines are available in stock?
5. What is your after-sales services?
6. What others do you offer?
DOUBLE MACHINERY are the one-stop solution provider, not only providing only one transaction packing machine, but also the turnkey solution, such as guidance about how to choose the right packing film material, what other auxiliary equipment we need, or how we maintain our machine, etc.
