Basic Info.
Model NO.
HM
Driven Type
Electric
Manner of Packing
Both Ends Open
Adjust Speed
Electronic Speed Control
Type
PE Shrink Film Machine
Heating Mode
Quartz Heating Tube
Packaging Material
Film
Product Name
Shrink Wrapping Machine
Capacity
0-25 Package/Min
Max Package Size
600*400*350mm
Sealing and Cutting Time
0.5-1.5 Sec
Sealing and Cutting Temperature
160-260 Degrees
Air Pressure
0.6-0.8MPa
Packing Film
PE Film
Bottle Type
Round/Square
Package Type
Wooden Package
Transport Package
Wooden Package
Specification
10-30m3
Trademark
Honor Machine
Origin
China
HS Code
84224000
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
13000.00cm * 1800.00cm * 2000.00cm
Package Gross Weight
13000.000kg
Product Description

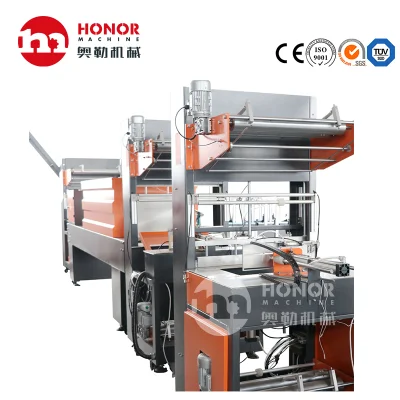

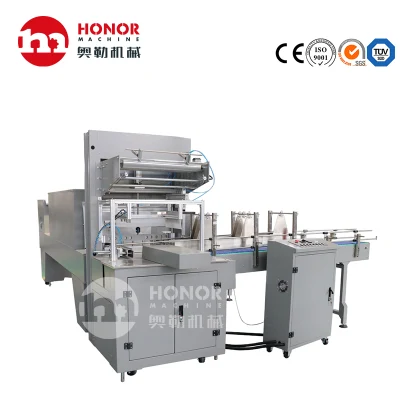

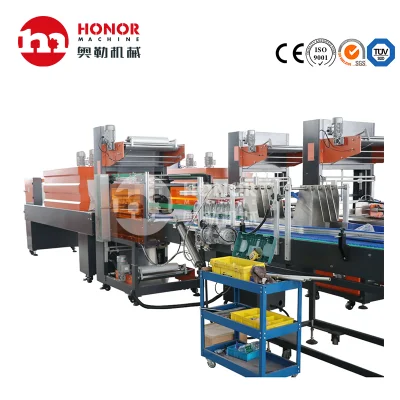

PE Film Sleeve Type Shrink Packaging Machine Shrink Wrap Wrapping Pack Packing Seal Sealing Tunnel Machine for Cosmetic Boxes and Fast Food Lunch Boxes
Specially designed for beverages, pure water, fruit juice, wine and other drinks. With full automatic functions of bottle
transfer and arrange, film wrapping, sealing and cutting, shrinkage, cooling and other qualities. It adopts the world's
advanced film thermostatic sealing technology, and the sealing is firmly cleaned. The PLC program is used for
automatic circulation control, and the performance is stable and reliable. Three-layer heat insulation, good heat
preservation performance, fast heating, energy saving.
1. Frequency converter speed adjust, two segment convey device.

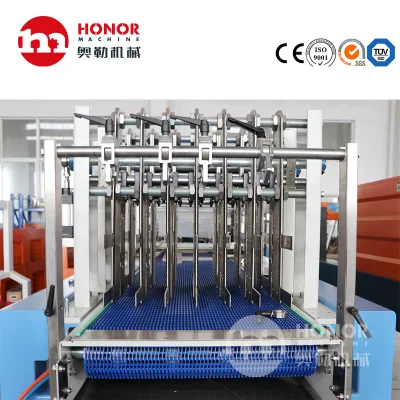

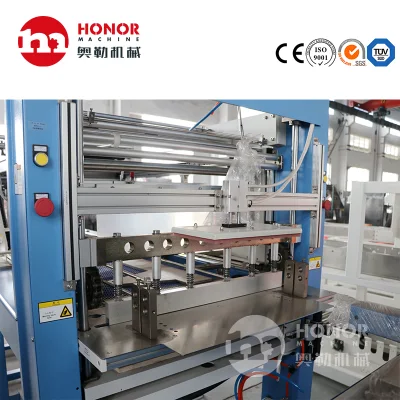

2. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture.
3. Proximity switch control film length
4. Touch screen, PLC system greatly increase facility movement reliability.
5. Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature.
6. Super big wind-volume cooling system, ensure quickly get into shape.
7. Anti-high temperature customized convey belt, convey steadily, high-strength anti-abrasion.
8. Frequency limitless speed adjust convey belt frame.
9. Convey belt height can make according client requirement, adjust range: ± 100mm
10. Wing stainless steel heating system, endurance
11. Meet with product instant stop requirement product-bearing rack device ensure production line consistency
| Model | WD-150A | WD-250A |
| Machine type | L type | Linear type |
| Capacity(package/min) | 0-12 | 15-25 |
| Transfer belt width(mm) | 304 | 550 |
| Sealing and cutting time/temperature | 0.5-1.5s 160-260ºC | 0.5-1s 180-260ºC |
| Max package size(mm) | 600*400*350 | 600*400*350 |
| Thermal shrinkage passage size(mm) | 1800*650*400 | 2400*650*450 |
| Overall dimension(mm) | 6500*3200*2100 | 13840*1100*2100 |
| Air pressure(Mpa) | 0.6-0.8 | 0.6-0.8 |
| Working power(kw) | 30 | 24 |
| Weight(kg) | 1.2 | 1.6 |
