Basic Info.
Product Description
| Technical Parameters | ||||
| Station | Four stations | Three station | Four stations | Three station |
| Model | TTF-700AF | TTF-700A | TTF-520AF | TTF-520A |
| Forming Area | 700mm x 600 mm | 520mm x 400 mm | ||
| Forming Depth (Max.) | 135mm | 110mm | ||
| Sheet thickness | 0.2-2.0mm | |||
| Forming Speed (Max.) | 30times/min | 30times/min | ||
| Air pressure | 0.6-0.8mpa | |||
| Air consumption | 3.6 m³/min | 3.0 m³/min | ||
| Water consumption | 0.8 m³/h | 0.7 m³/h | ||
| Sheet width (Max.) | 730mm | 550mm | ||
| Suitable Sheet | PP, PS, HIPS, PET, PVC, PLA etc. | |||
| Power supply | AC 380V, 50Hz, Three-phase, Four-wire | |||
| Used power | 105Kw | 95Kw | 55Kw | 50Kw |
| Rated power | 210Kw | 190kw | 110Kw | 100Kw |
| Heating power | 118Kw | 75Kw | ||
| Procedure | Forming-punching-cutting-stacking | Forming-cutting-stacking | Forming-punching-cutting-stacking | Forming-cutting-stacking |
| Dimension | L14000*W4700*H2750mm | L13000*W4700*H2750mm | L11000*W4600*H2700mm | L9700*W4600*H2700mm |
| Weight | About 25.0T | About 19.0T | About 11.0T | About 9.0T |
| Main Electrical Components | ||
| MODEL/PARTS | TTF520A/AF | TTF700A/AF |
| Filter | CKD(Japan) | |
| Forming Valve | NORGER(UK) | |
| Touch Screen | DELTA | KUNLUN TONGTAI |
| Proximity Switch | ROCKWELL(USA) | |
| Temperature Control Module | WEST(UK) | |
| AC Contactor/Circuit Breaker/Button | SCHNEIDER(France) | |
| Intermediate Relay | IDEC(Japan) | |
| Intermediate Relay Base | OMRON(Japan) | |
| PLC/Servo Motor | DELTA(Taiwan) | |
| Safety Door | - | Panasonic(Japan) |
| Sheet Sagging Detection | - | Sick(Germany) |
Application:

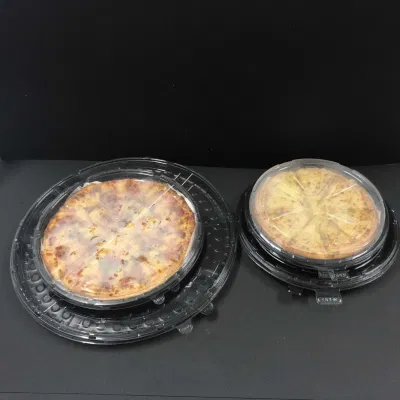

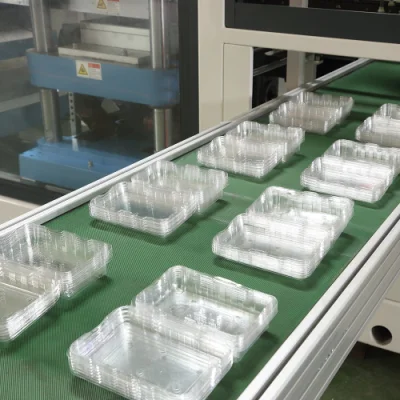

TTF series full-automatic thermoforming machine is our latest developed core product. The machine combines forming, punching, cutting, and stacking into process. widely used and suitable for most of the customer requested, it can produce plastic trays, containers, boxes, lids, etc. The machine is completely driven by servo motor. stable operation, low noise, high efficiency, high quality.

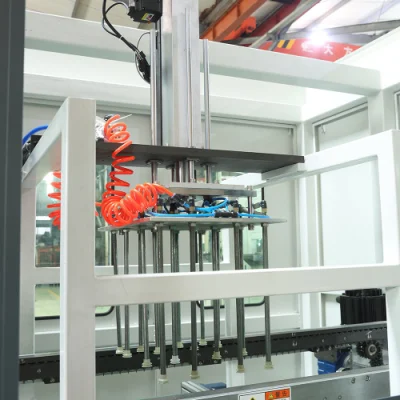

SUMMARY OF MACHINE

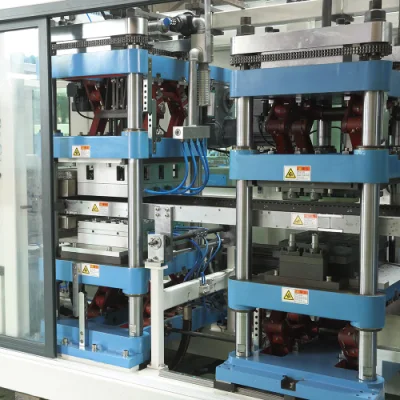

1.Every station is driven by the eccentric crank linkage structure.
2.Feeding and heating part have optoelectronic switch in order to prevent error operating from production process.
3.The toothed chain made of 65#Mn, helping convey sheet. Aluminum rails with water cooling, save water.

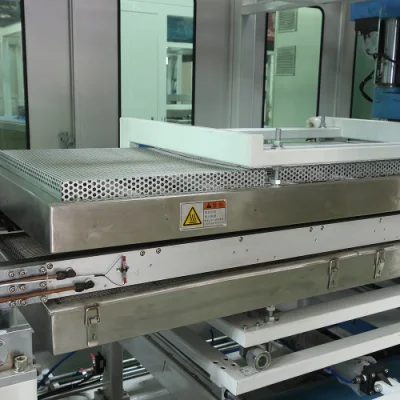

4.The machine adopts PID temperature system, it shows high precision, and temperature control tolerance <1ºc.
5.There is a rapid mould change device, which shortens the time for mould change extremely.
6.Each servo motor has overload protection for machine's overworking.
7.Low barycenter and height of finished products as well as steady running ensures easy operation and friendly viewing.
8.There is an alarm function of the sliding doors.
What is features and advantages of our plastic thermoforming machine?
1. Fully servo driven machine.no noise.no vibration,thermoforming good and fast.
2. Fully machine in compact structure,taking small floor space.
3. Can be adapted to a variety of materials,and the products thicker 8% than the average machine products.
4. Furnaces automatic removal device, can be turned down at any time during production without breaking the sheet reaching without
wasting materials.
5. Electric furnace temperature control system uses intelligent automatic compensation control,a control,a control of a
regulator,easy to adjust the temperature uniformity,easy to use,simple,fast heating,low temperature three times up and down the
oven roast slices.
6. Forming,cutting die servo-driven,two-way adjustable for upper and lower mold stroke,in which the upper mold electric adjustable
in clamping direction. The upper and bwer molds height position can be adjusted conveniently and fast under the clamping
state;lower mold in clamping direction readily accessible buffer,increasing the clamping speed,avoiding shock.
7. Auto cutting, auto counting,auto transmission by PLC.
8. Labor saving, only 1-2 workers packing.
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
