Product Description

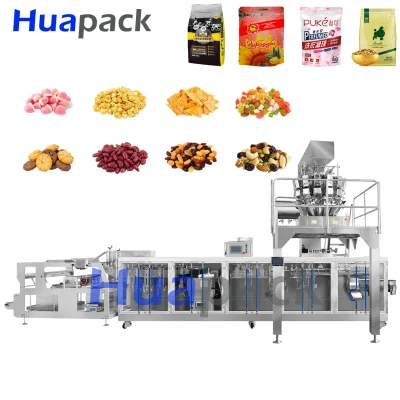

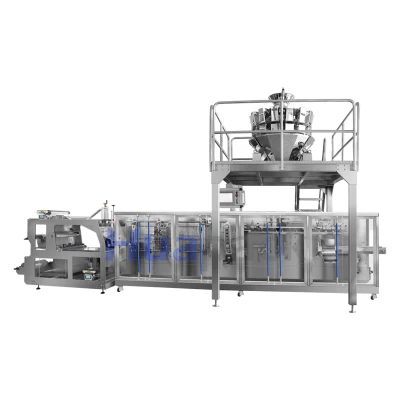

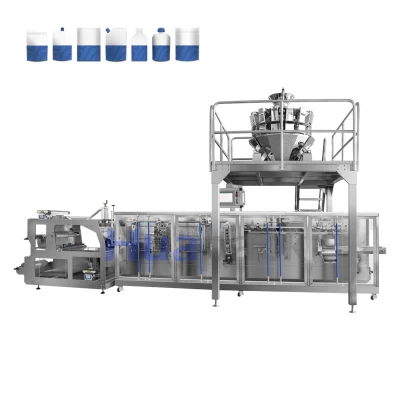

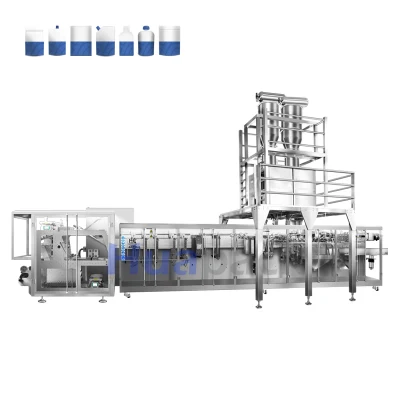

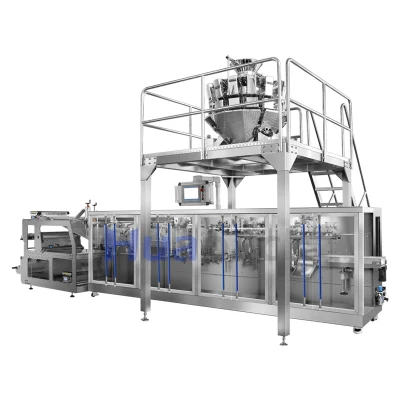

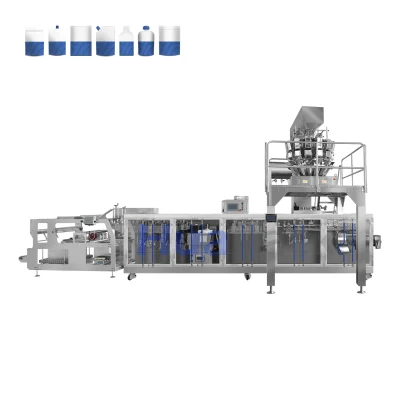

horizontal automatic doypack sachet pouch packing machine for liquid & powder & granules
Huacheng HC-S series designed for doypack,with functions of making hanging hole,special shape,zipper or spout.
horizontal automatic doypack sachet pouch packing machine for liquid & powder & granulesAdopt Euro technology improving along with Chinese production status. coming up with machine high quality with competitve price.
horizontal Form Fill Seal doypack machines are packaging machines in which filling, and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
HC packing machine has the wide range of Horizontal Form Fill and Seal machines in the market.
Our machines cover all the applications and are customized to be adapted to our customers' needs.
The design is based on the modular frame construction, composed of three independent modules: unwinder, pouch forming and dosing-sealing.
Pouches/sachets that are made using HFFS technology are less expensive than Pre-made ones.
The Technical Paramters of horizontal automatic doypack sachet pouch packing machine
| Item | doypack | 180SP/180SZ | 240SP/240SZ | 330SP/330SZ |
| Parameters | Min(W*H) | 90×110mm | 110×120mm | 130×160mm |
| Max(W*H) | 180×225mm | 240×320mm | 330×460mm | |
| packing vol max | 1000ml | 2000ml | 3000ml | |
| speed(bag/min) | ≤60 | ≤60 | ≤60 | |
| film thickness | 60-180ų | 60-180ų | 60-180ų | |
| film roll outer.dia | 500mm | 500mm | 500mm | |
| film roll inner.dia | 70-80mm | 70-80mm | 70-80mm | |
| machine size (mm) | 6700×1200×1800 | 7500×1200×1800 | 8500×1200×1800 | |
| work condition | machine weight | 2100kg | 2400kg | 2400kg |
| temperature | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC | |
| moisture | below 85% | below 85% | below 85% | |
| vol. | AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | |
| air | 400L/min | 400L/min | 400L/min | |
| power | 9Kw | 9.5Kw | 9.5Kw |
Duplex model , making double doypack bags per time
| Duplex model | 180SD | 240SD | 240SD |
| paramters | 70×110mm | 90×125mm | 90×125mm |
| 90×225mm | 120×250mm | 120×250mm | |
| 300ml | 500ml | 500ml | |
| 60-120 | 60-120 | 60-120 | |
| 60-180ų | 60-180ų | 60-180ų | |
| 500mm | 500mm | 500mm | |
| 70-80mm | 70-80mm | 70-80mm | |
| 6900mm×1200mm×1800mm | 7200mm×1200mm×1800mm | 7200mm×1200mm×1800mm | |
| 2100kg | 2500kg | 2500kg | |
| work condition | -10ºC-+55ºC | -10ºC-+55ºC | -10ºC-+55ºC |
| below 85% | below 85% | below 85% | |
| AC380V,50Hz | AC380V,50Hz | AC380V,50Hz | |
| 0.6-0.7Mpa | 0.6-0.7Mpa | 0.6-0.7Mpa | |
| 400L/min | 400L/min | 400L/min | |
| 8.8Kw | 9.8Kw | 9.8Kw |
1) HMI Display includes instruction manual and troubleshooting
2)Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.3)Full servo motion : This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.
4)Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
5) Multiple steps of sealing are needed to guarantee sealing quality
6) filling : allow hot and cold filling
1. independent film frame-stable film forming for doypack pouches and can add film align device and film sterilization
2. Servo film pulling 1,servo pulling is stable and easy to change sizes
3. can adding zipper and spout to doypack pouches
| 1.coding | cold press code or touch code form, date QR code, bar code can be realized |
| 2.easy notch | easy notch cutting |
| 3 Hanging hole | round hole or euro hole |
| 4.independent film frame | Independent doypack bag forming advice |
| 5.film align(optional) | align film automatically |
| 6.top spout (optional) | adding top spout inserting station |
| 7.corner spout (optional) | adding corner spout inserting station |
| 8.double time filling | increase the speed by double-head filling for big package |
| 9.bag support | adding bag support for big package |
| 10 conveyor | select the finished product conveyor belt to transport |
We are a technical-driven company in the manufacturing of horizontal sachet and pouch packaging machinery, bottle filling lines for a wide range of different sectors, like retail food & Beverages, pharmaceutical, cosmetic or chemical products, in many other applications, working from rollstock or pre-made pouches.
Our strong knowledge of this industry allows us to provide optimal customized solutions to each customer with the highest level of features, and the finest quality & Innovative packages.
We are committed to running our business in a sustainable way. And we sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
1.We can provide single machine or whole packing system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. 1 year warranty for main machine and 1 year spare parts
4. Contact us any time when you feel free.
Q1: Can your machine meet our need well?
A1: We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well.
Q2: Are you a factory or a trading company?
A2: We are the manufacturer, and have four experts who have more than ten years experience in packaging machine industry.
Q3: Warranty and after-sales service
A3: One year warranty and 1 year spare parts, 24 hours online technical service and solution can be offered, OEM, Customized can be all accepted.
Q4: How can you ensure the machine's quality after we put the order?
A4:Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
Q5: We are afraid you won't deliver us the machine after we pay you the money.
A5: Please note our above business license and certificates.
