Basic Info.
Model NO.
PPBG-750
Max. Forming Depth
80mm
Max. Forming Area
620X420mm
Total Power
28kw
Power Consumption
8 Kw/H
Transport Package
Wooden Pallet
Specification
CE; SGS
Trademark
Polyprint
Origin
China
HS Code
8477409000
Production Capacity
1200PCS/Hr
Product Description
Feature:
1.PPBG-750 lid forming machine is a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
2.With easy operation, calm running, convenient maintenance and stable function.
3.It can produce PLA, PVC,PS, PET etc. All kinds of covers.
Technical Parameter:
Sample Picture:
1.PPBG-750 lid forming machine is a new type one that combines advantages of several types of main forming machines and also brings to more improvement and innovation.
2.With easy operation, calm running, convenient maintenance and stable function.
3.It can produce PLA, PVC,PS, PET etc. All kinds of covers.
Technical Parameter:
| 1 | Suitable Products | Disposable plastic lids,egg trays,clamshell boxes,plates etc. |
| 2 | Suitable Materials | PET,PVC,PS PLA sheet |
| 3 | Thickness Range | 0.1-1.5mm |
| 4 | Stroke Range | 30-440mm |
| 5 | Max. Forming Depth | 80mm |
| 6 | Max. Forming Area | 620×420mm |
| 7 | Industry Voltage | 380V/50Hz (Three Phase, Four Wires) |
| 8 | Total Power | 28kW |
| 9 | Max. Speed | 10-40 Cycles/Min,with the robot max.25cycles/Min |
| 10 | Max. Cutting Force | 30Ton/0.8Mpa |
| 11 | Air Pressure | 0.5-0.7MPa |
| 12 | Air Consumption | ≥ 0.3 m3/h |
| 13 | Cooling Water | Normal Tap Water Recycle Cooling |
| 14 | Noise | <75Db |
| 15 | Machine Dimension | 7300×1500×1820mm |
| 16 | Machine Weight | 4300kg |

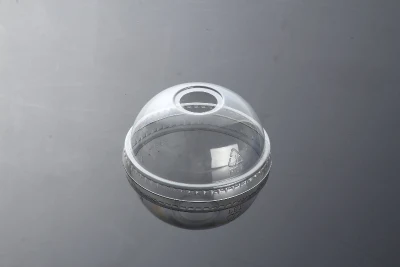

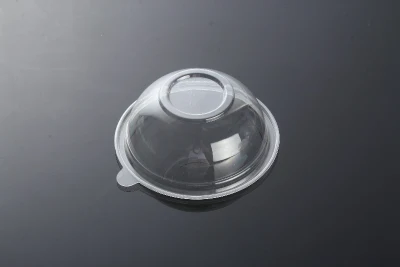

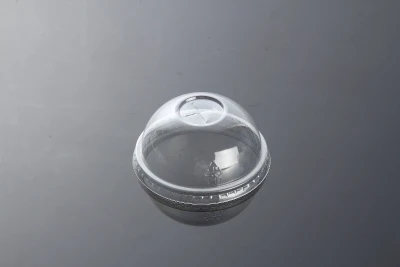

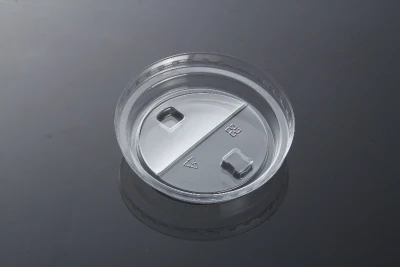

Sample Picture:
Our Services:
1.Warranty:1 year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.Quotation: valid for 60 days.
Packaging Shipping:
Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
