Basic Info.
Model NO.
LD-420A
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
Composite Materials
Bag Type
Pillow Bag,Stand Pouch,3 or 4 Side Seal Bag
Material Quality
201/304 Stainless
Packing Speed
5-60 Bag/Min
Film Width
Max. 420mm
Bag Length
80-300 mm
Transport Package
Export Wooden Case
Specification
(L)1217x(W)1015x(H)1343 mm
Trademark
landpack
Origin
China
HS Code
8422309090
Production Capacity
100 Set/Mouth
Product Description
Landpack LD-420A Automatic Food Figs Seafood Couscous Packaging Packing Machinery Machine
Application
It's suitable to use in packaging the high accuracy and easy fragile material such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardwares, medicine, etc.
* Various bag types are available, e.g. pouch, stand-up bag, cheerpack, back-sealing bag, 3 or 4 sides sealing bag, linking bags,etc.
* Various bag types are available, e.g. pouch, stand-up bag, cheerpack, back-sealing bag, 3 or 4 sides sealing bag, linking bags,etc.
Automatic Vertical Packing Machine for corn Grain, Cumin Seed,candy,popcorn,sesame
2.The machine adopts high precision servo film transport system, PLC program control, developed touchable human-machine interface of advanced automatic positioning, photoelectric tracking,digital temperature control,etc.
3.Operation is more simple,perfect.It is the first choice of food packaging industry to improve the production efficiency,reduce labor intensity, improve the grade of packaging equipment.
4.Packaging material can be PE/polyethylene,PE/aluminum plating, pet/PE, pp,and other heat-sealing packaging materials, etc.
5.It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),product out-putting automatically.
6.High precision, high efficiency without crash the materials.
The feature of Automatic Vertical Packing Machine for corn Grain, Cumin Seed,candy,popcorn,sesame Chinese & English touch screen display, intuitive and simple operation.
PLC computer control system,the operation is more stable,no need stop and adjust any parameters.
- It completes the whole procedure of filling,measuring,bagging,date printing,charging(exhausting),produt out-putting automatically.
- The volumetric cups can be make to open-close model measure equipment.Transverse and longitudinal sealing temperature control independently,suitable for all kinds of composite film, PE film packaging materials,etc.
- Packaging style diversified,back sealing,Gusset Bag,continuous bags,punching,etc.Work environment quiet, low noise, saving energy.

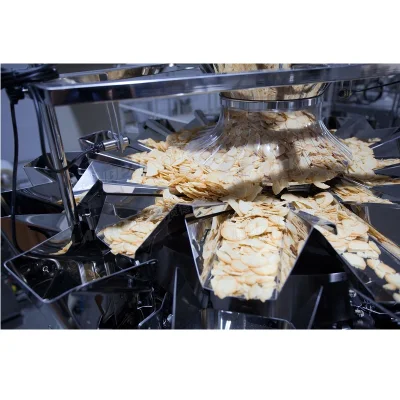

- Measuring system is Multi-head combination weigher,higher precision,suitable for Snacks,potato chips,cookies and also small granule,for example:sugar,rice,beans,coffee beans,etc.
- A complete set of equipment is economical.
The Samples Of Automatic Vertical Packing Machine for corn Grain, Cumin Seed,candy,popcorn,sesame:
Technical Pharameters Of Automatic Vertical Packing Machine for corn Grain, Cumin Seed,candy,popcorn,sesame:
| Combination Balance With Computer Specification (With the product size selection models) : | |||||
| Combination Balance Type | LD-8 | LD-10 | LD-12 | LD-14 | LD-16 |
| Measure Number | 8 | 10 | 12 | 14 | 16 |
| Unit Quality Range | 10-600g | 10-1000g | 10-1000g | 10-2000g | 10-1000g |
| Quality Precision | ±0.3-1.5g | ||||
| Quality Rate | 60bags/min | 70bags/min | 100bags/min | 120bags/min | 180bags/min |
| Quantify Capacity | 1300ml | 1700ml | 1300ml | 1300ml | |
| Hopper Form | Double row without memory bucket | Single row bucket | Double row without memory bucket | ||
| Predesign Pattern | 99 species | ||||
| Control Element | Fluorescent light display tube(256*64poxel) | 10.4LCD display tube | |||
| | 1.Combining the hi-precision and hi-rate can vote in the best compounding from the abundant weight compounding by computerizing.Hi-rate digital sensor can gage in a short time. 2.Operation system of LCD with Chinese-English. 3.All the part adopt the stainless with clean and sanitation by the design of waterproof and dustproof.Design of complete airproof can prevent the material stacking and ease to clean. 4.To adjust slightly the rate of the hopper door to avoid crashing and blocking the material. 5.Self-diagnosis function. 6.To fix directly above the packing machine and the structure is more close with better compatibility. 7.To save a lot of raw material and the cost of labour force and get the return quickly. | ||||
| Combined Parts: | ||
| LD series main frame | 10 heads weigher | Z type bucket elevator |
| Vibration feeder | Supporting platform | Product conveyor |
| Similar Main frame Model Specification (With the product size selection models): | ||
| Type | LD-520(upgrade) | LD-720(upgrade) |
| Film Width | Max.520mm | Max.720mm |
| Bag Lenth | 80-300mm | 180-350mm |
| Bag Width | 100-250mm | 100-500mm |
| Film Roll diameter | Max.320mm | Max.320mm |
| Packaging Rate | 5-60bags/min | 5-55bags/min |
| Range of Measurement | 2000ml | 4000ml |
| Film Thickness | 0.04-0.08mm | 0.04-0.12mm |
| Power | 220V 50/60Hz 3KW | 220V 50/60Hz 3KW |
| Machine Size | (L)1488*(W)1080*(H)1490mm | (L)1780*(W)1350*(H)2050mm |
| Machine Quality | About 680KG | About 750KG |
1. Using touch screen and PLC human-machine intelligent interaction system to realize fully automated production;
2. Unique and beautiful appearance, using 304 stainless steel;
3. It can be used with bottle unscrambler, capping machine, labeling machine and other equipment to form a fully automatic production line.
2. Unique and beautiful appearance, using 304 stainless steel;
3. It can be used with bottle unscrambler, capping machine, labeling machine and other equipment to form a fully automatic production line.
Get More Our Product & Company Information, Please Go To: landpack.en.made-in-china.com
Pre-sale Service1. Equipment model selection:
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
5. Acceptance of the product;
6. Assist the client in drafting the construction plan;
Medium-sales Services:
Landpack have the trained team to follow your orders methodically to guarantee the products can be finished
on time with high quality.
After-sales Service
1.One Year Warranty,As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement,Don't worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3.Engineer Asssignment,Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4.Online Instruction,We open online services,as long as your equipment failure,our engineers will be the first time for
a one-to-one trou-bleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
Our Organization
The manufacturing plant and facilities, designed with modern criteria complying with CE directives, and the advanced process technology based on an economy of scale production, place LANDPACK among China producers for the top quality of products as well as for the quantity and variety of solutions proposed and sold. Research and Development Department is equipped with advanced tools and disposes of a qualified team of informatics, electronics and packaging experts involved in the study and experimentation of new solutions, indispensable for new projects and for the improvement of standard equipment.
Our Mission
Our aim is the complete customer's satisfaction, through research and trials of new automated packaging systems and technical solutions.
Our Objective
Designing and building automatic packaging machines technologically advanced, durable and reliable, interfaced with modular composed automatic feeders, easy to be integrated into automated packaging systems.
Our Sales and Service Network
Entrusted to Certified Agents of proven professional competence and expertise, employing Record trained service engineers, stocking a suitable inventory of original spare parts for immediate delivery.
The manufacturing plant and facilities, designed with modern criteria complying with CE directives, and the advanced process technology based on an economy of scale production, place LANDPACK among China producers for the top quality of products as well as for the quantity and variety of solutions proposed and sold. Research and Development Department is equipped with advanced tools and disposes of a qualified team of informatics, electronics and packaging experts involved in the study and experimentation of new solutions, indispensable for new projects and for the improvement of standard equipment.
Our Mission
Our aim is the complete customer's satisfaction, through research and trials of new automated packaging systems and technical solutions.
Our Objective
Designing and building automatic packaging machines technologically advanced, durable and reliable, interfaced with modular composed automatic feeders, easy to be integrated into automated packaging systems.
Our Sales and Service Network
Entrusted to Certified Agents of proven professional competence and expertise, employing Record trained service engineers, stocking a suitable inventory of original spare parts for immediate delivery.
When the machines are finished:
1.we would inform the customers and ask them to come our factory to check the machines.
2.We also provide the test report of the machine. Before the machine leaving our factory, we need to receive the balance .
3.The machines would be wrapped by the waterproof membrane and packed in the wooden box.
4. Our long-term cooperative shipping company to send to the machine to your country in time.
Contact us
Company Address:
Building C7, New lighting Source Industrial Base, Nanhai District, Foshan ,China
If You Would Like To Visit Our Just Now,Plese Contact Us and We Will Arrange a Special Bus To Pick You Up.
Kindly Reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank
you in advance.
1. Product details
2.Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
LANDPACK MACHINERY is still developing, and the products are also being innovated. Welcome our old and new customers to visit our factory and make the consultation.
We will provide professional packaging solutions for you!
2.We also provide the test report of the machine. Before the machine leaving our factory, we need to receive the balance .
3.The machines would be wrapped by the waterproof membrane and packed in the wooden box.
4. Our long-term cooperative shipping company to send to the machine to your country in time.
Contact us
Company Address:
Building C7, New lighting Source Industrial Base, Nanhai District, Foshan ,China
If You Would Like To Visit Our Just Now,Plese Contact Us and We Will Arrange a Special Bus To Pick You Up.
Kindly Reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank
you in advance.
1. Product details
2.Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
LANDPACK MACHINERY is still developing, and the products are also being innovated. Welcome our old and new customers to visit our factory and make the consultation.
We will provide professional packaging solutions for you!
1. Q : Which one packing machine is suitable for us ?
A : Dear, before quoting, please kindly consult us and providing:
1.your product name,product picture.
2.your bag size,such as bag width and bag height.
3.ideal bag shape. For there is over 100 kinds of packing machine,different on bag size.
In order to recommend u the best,we need know that information.
If u just start this business,no bag size,we can help u to find similar weight bag for your reference.
2. Q: Is that packing machine ok for our product?How to operate it?
A : If you donnot mind,you can send u sample.we will use existing packing machine to test for u.
During that time,we will take video and clearer picture for you.If chance,we can take video online and show u.
3. Q: Is that pack many bag size in the same packing machine?
A:That is the common question from our customer.Every packing machine has its range for bag length and bag width.can u send us full details,i will calculate for u and give u exact reply.
