- Overview
- Product Description
Basic Info.
Model NO.
KL-420CD
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Snack, Potato Chips,Nut,Peanut
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Pneumatic
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Machine Name
Automatic Weighing Vertical Automatic Candy Floss
Region
Foshan, Guangdong, China Supply
Machine Material
304 Stainless Steel
Packing Material
OPP/CPP/PE/Pet/Po/PA/Al/VMCPP etc.
Controller System
PLC
Bag Length
Max.350mm
Bag Width
Max.250mm
Packing Speed
Max.80bags/Min
Packaging Accuracy
±0.5g
Optional Multi Head
2-14
Power
2.6kw
Optional Devices
Data Printer, Air-Filling Device, Pouching Devic
Packaging Type
Back Sealing Pillow Bag
Optional Bag Type
Gusset Bag,Resealable Bag,Quadsealing Gusseted Bag
Transport Package
Export Wooden Case
Specification
(L)2000*(W)2300*(H)2100mm
Trademark
Kinghanlong
Origin
Guangdong, China (Mainland)
HS Code
8401200000
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
954.00cm * 586.50cm * 513.00cm
Package Gross Weight
1000.000kg
Product Description

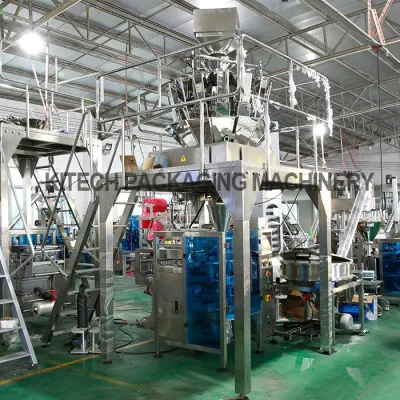

KL-420CD full automatic pouch seed rice grain granule 1 kg red bean packing machine
1,Requirement for high precision measurement and fragile packaging bulk goods, such as: puffed food, crispy rice, fruit chips, sweets, pistachio, apple slices, dumpling, chocolate, balloon, rubber, Screw the Nut hardware item, medicines etc.
2,Highly sensitive weighing sensor, with the highest measurement accuracy up to + / - 0.5g.
3, Anti-acid-base 304 stainless steel plate, meeting the standards of food SC certification and drug GMC.
4, The standard procedure is to make sheet metal parts by hand. The mounting error is as small as 1mm

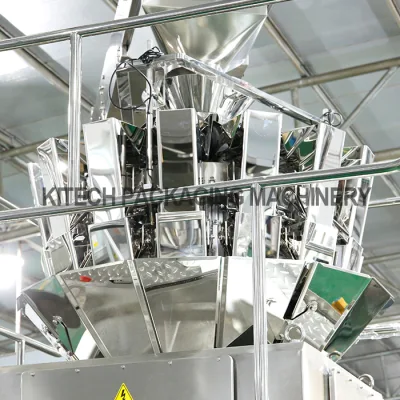

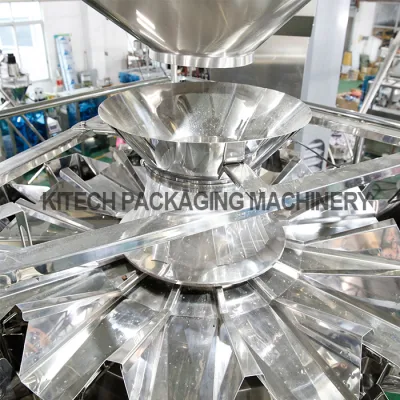

5, Automatic bayonet weighing hopper, storage hopper, main vibration and wire vibration without screw fixation.Simple disassembly and convenient cleaning
6, 10 sets of customized storage data, which can store 10 sets of commonly used parameters. When it is necessary to switch parameters, it is convenient and fast to switch with one key
7,There are 50 kinds of basic parameters of products with different attributes and shapes in the database. Only the same or should be selected when weighing
Similar material pictures, and then set the weight to complete the measurement part.Easy to understand.
8,Real-time monitoring screen can instantly check the weight of the blanking combination, check the stability and error of the weight.
9,The equipment is mainly calculated by mathematical combination. Many qualified combinations are made from multiple weighing hopper, and then the most similar combination is selected from them.
10, As many as dozens of languages can be switched at will.
11, You can customize the concavo-convex pattern plate, rotary weight, no material storage, non-stick material.One said multi-purpose, can achieve the same type of product diversified packaging.
Technical Parameters
| Machine model | KL-320CD | KL-420CD | KL-520CD | KL-620CD | KL-720CD | KL-820CD | KL-1050CD |
| Bag shape | Back sealing pillow bag/4-side sealing bag | ||||||
| Packing speed | 25-80bags/min | ||||||
| Roll thickness | 0.05-0.15mm | ||||||
| Max roll width | 320mm | 420mm | 520mm | 620mm | 720mm | 820mm | 1050mm |
| Roll diameter | 320mm | 320mm | 320mm | 320mm | 320mm | 320mm | 320mm |
| Bag width | 50-150mm | 60-200mm | 80-250mm | 100-300mm | 100-350mm | 120-400mm | Max:520mm |
| Bag length | 80-240mm | 80-300mm | 80-350mm | 100-450mm | 100-450mm | 120-550mm | Max:750mm |
| Packing weight | Max:0.5kg | Max:1kg | Max:3kg | Max:4kg | Max:8kg | Max:10kg | Max:15kg |
| Voltage | 220V | ||||||
| Power | 2KW | 2.2KW | 3KW | 3.4KW | 3.6KW | 3.8KW | 6KW |
| Additional configuration | Nitrogen fiiling device Coding printer gas-filled device punch device etc | ||||||
Application&Bag type
Food:Candy,Beans,Chips,Popcorn,Pasta,Corn,Rice cake,Jelly,Cookies,Cheese,Peanuts,Coffee Creamer,Almond,etc.
Daily necessities:Mothballs,Disposable Mask,Buttons,etc.
Hard&Ware:O ring,Screw,Dowel,etc.
Medical:Pill,Medicine,etc.
Daily necessities:Mothballs,Disposable Mask,Buttons,etc.
Hard&Ware:O ring,Screw,Dowel,etc.
Medical:Pill,Medicine,etc.
FAQ
Make sample bags
If it's necessary according to your requirements, we can make sample bags for your reference.
Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
Overseas door to door service
Our engineer overseas door to door service is available.
Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
Remark
1.Our company accept the payment of L/C,D/A,D/P,T/T,Western Union,MoneyGram,Visa,Mastercard,
e-checking,PayPay,apple pay etc,confirm with our sales personnel finally please.
2.There may be charge when adding the additional configuration, please confirm with our sales personnel.
3.The packing machine final price need to confirm with our sales personnel.
4.Our company reserve all the right for the final explanation.
