Basic Info.
Model NO.
BS-420G
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
Plastic
Driven
Pneumatic
Warranty of Core Components
1 Year
Core Components
Motor, PLC, Other
Optional
Coding Device, Conveyor
Filling Device
Weighter or Volume Cup Filler
Certificate
CE&ISO&Rosh
Function
Doypack Forming, Zipper, Filling and Sealing
Material
SS304 Food Grade+Plastic
Bag Width
50-200 mm
Bag Length
50-300 mm
Packing Speed
10-70 Bags/ Min
Voltage
220/380V
Weight
1680kgs
Packing Material
OPP/CPP, OPP/CE,Pet/PE etc
Key Selling Points
High-Accuracy
Transport Package
Plywood
Specification
1080*1300*1400 mm
Trademark
BOSHI
Origin
China
HS Code
84223030
Production Capacity
15 Set/Per Month
Product Description

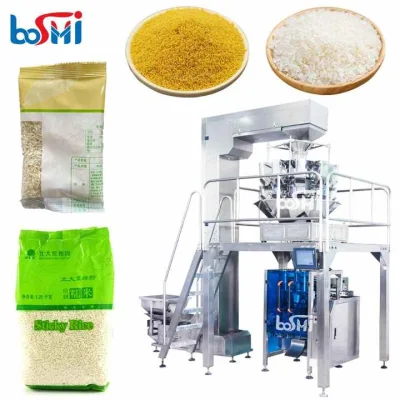

| Model | BS-420G 1 Kg 2kg to 5kg food packaging Automatic Rice Bag Packing Sealing Machine |
| Film width | Max.420mm |
| Film thickness | 0.03-0.1mm |
| Bag width | 50-200 mm |
| Bag length | 50-300 mm |
| Packing speed | 10-70 bags/ min |
| Type of sealing | Pillow bag,3 or 4 side seal and gusset bag |
| Packing material | OPP/CPP, OPP/CE,PET/PE etc. |
| Air consumption | 0.65 mpa |
| Gas consumption | 0.3 cubic meter/ min |
| Machine dimensions | 1080*1300*1400 mm |
| Machine weight | 600 kg |
| Multi-weigher | |

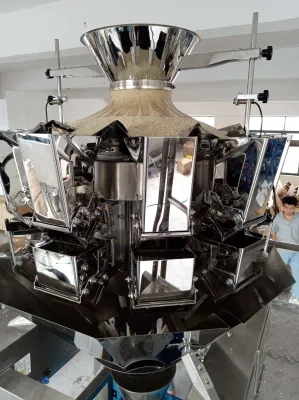

| Weighting and filling system | Head weighers |
| Weighting range | 10-3000g (Different product have different weighting range ) |
| Accuracy: | Bias:+-0.5g |
| Filling speed: | 65bags/min |
| Hoper volume | 1.6/2.5L/5L |
| Total power: | 1.0kw |
| Weight | 380KG |
The details of the main parts:
Automatic feeding +weighting +filling +sealing together .
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Master control circuit adopts imported PLC microcomputer with man-machine interface and frequency control,making setting parameters (to adjust bag length and width, packing speed,cutting position) convenient and quick and operation intuitive.
Full implement the humanizes automatic operatio
Applicable bag type:Snack food, chips, biscuits, cookies, nuts, coffee beans, oatmeal, sugar, rice, frozen food, IQF fruits, salad, vegetables, powder, liquid, paste etc.Applicable bag type:Pillow bag, gusset bag, seal type bag, pyramid bag, standup pouch bag, bag with holes, chain bag, zip lock bag, four side seal bag, three side seal bag etc.
Applicable film material: A variety of laminated films, plastic film, aluminum film, single layer PE film. Film thickness range from 0.04mm to 0.15mm
FOSHAN BOSHI PACKING MACHINERY CO., LTD.Located in Foshan city, next to Guangzhou city, is a professional manufacturer of series packing machine with morn than 13 years experience.
Main produce packing machine as follows:
Pillow packing machine (For food, commodities, hardware , toys, soft, loose, solid products packing);
Granule packing machine (Multi-head weigher packing machine - For dry food, such as nuts, chips, candy .-For frozen food, such as dumpling, chicken leg, fish, pork. -For hardware screws. For vegetables,small fruits ,etc)
Line weigher /Volumetric cup packing machine( For small granules like sugar, salt, rice,beans,nuts, grain )
Powder packing machine( For coffee powder, milk powder, instant powder,flour, and etc.);
Liquid packing machine( For sauce, jam, honey, juice, paste, jelly, oil, shampoo, and etc.);Extruder and packing machine(For play dough, clay, flour dough, light dough, gel, energy bar ,etc.soft materials)
Cling film packing machine (For vegetable,fruit,meat, fish);
Shrink packing machine (For bottles, toys, books, plate, CDS, foods , commodities, and any other solid products)
