Basic Info.
Product Description
MG-240 Water/Honey/Juice Sachets Packing Machine Vertical Small Bag Liquid Pouch Honey Stick Sachet Filling Packing Machine Milk Jam Soup Water Oil Packaging Machine
Automatic Liquid and paste packaging machine features:
Liquid And Paste Packing Machine:
1. Automatic liquid packaging machine can automatically complete the entire process of fastener delivery, metering, filling, bag making, date printing, charging (exhaust) meter heat sealing, cutting.
2.Imported servo film driving system and color sensor enable accurate position, beautiful packaging and excellent performance.
3. We have installed constant temperture heating system ensuring stable temperture and keep temperature is +/-1°c.
| Machine model | MG-350 | MG-240 |
| Bag shape | pillow bag/stick sachet /Back Sealing Edge seaing/3 side sealing/4 side sealing | |
| Packing speed | 20-60bags/min | 125-70bags/min |
| packing capacity | 10-500g/bag | 5-100g/bag |
| Roll thickness | 0.04-0.08mm | |
| Roll diameter | Max:300mm | |
| Roll width | 50-350mm | 50-240mm |
| Bag width | 15-163mm | 25-120mm |
| Bag length | 40-220mm | 40-200mm |
| Powder | 220V/50HZ/1.8KW | 220V/50HZ/1.2KW |
Optional device:
| Gusset device | Nitrogen charging device |
| Chain bag | Vibrating device |
| Punching device | Sealing device |
| Exhaust/Inflatalbe devices | Easy tear device |
| PE film sealing | Bag support device |
| Anti-Static electricity | Evacuating device |
| Horizontal seal cooling blowing device | Film rectify deviation adjust device |
Detailed Configuration
| F. | Control part | Brand | |
| 1 | Display Screen | XINJE from China | |
| 2 | PLC | XINJE from China | |
| 3 | Stepping motor | LICHUAN ELECTRICAL from China | |
| 4 | Temperature Control List | Yatai from Shanghai | |
| 5 | Photocell | OETAI from China | |

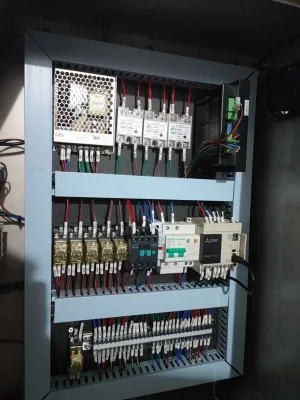

| S . | Electrical part | ||
| 1 | Intermediate Relay | Omron from Japan | |
| 2 | Solid State Relay | PEKEELEC from China | |
| 3 | Film-drawing Motor | Teco from TaiWan | |
| 4 | Stepper driver | LICHUAN ELECTRICAL from China | |
| 5 | AC contactor | CHNTfrom China | |
| 6 | Fuse | ZHENGRONG from China | |
| 7 | Thermocouple | Keyang from China | |
| T. | Power part: | ||
| 1 | Approach switch | CNTD from China | |
| 2 | emergency stop button | Sch- neider from France | |
| 3 | Power(3.6A) | Ming Wei from Taiwan | |
| F. | wiring par | ||
| 1 | Aviation plugs | WEIPU form China | |
| F. | Print date part | ||
| 1 | Date coder | Nanyun from China | |
| S. | Pneumatic parts | ||
| 1 | Cylinder | AirTAC from Taiwan | |
Please tell us about your bag size and we can match the suitable machine for you.
Scope of application:
Suitable for automatic packaging of liquid of foods, medicine and chemicals,such as pesticide,shampoo,body foam bath lotion, facial cream, ingredient oil, fruit sauce,tomato ketchup and honey shower gel, skin lotion, toothpaste, cosmetic cream, fruit jam, edible oil, soy etc

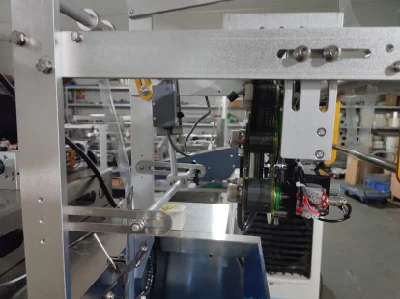

MACHINE DETAILS

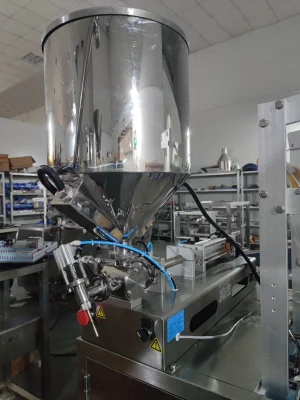

| high precision +_1% ,Weighter can be adjusted. #304 stainless steel measurement parts will measure the weight of each bag automatically. |  |
| Date printer is available to be equipped on this machine for printing production date on bags |  |
 | Touch Screen The display screen is super sensitive and intelligent, and can be used for various debugging of bag making. Language: Standard English and Chinese. Any language can be customized. PLC: Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier |

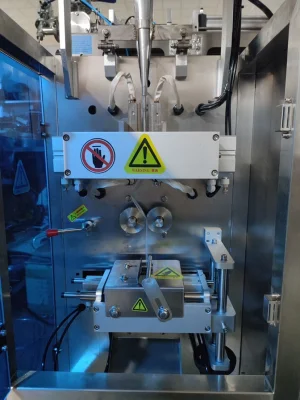

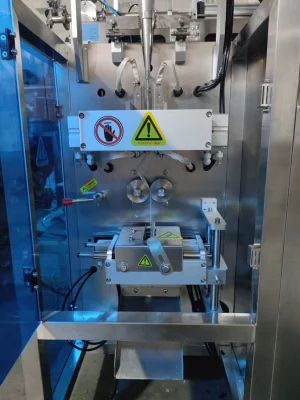

 | Bag Former Articulated bag former structure, high speed of accuracy and clean cutting, sealing bags. |
About US:
SME is a leading manufacturer in the field of front-of-line packaging devices since 2008. In the past 13 years, MOTECH has targeted on the technology development, precise manufacturing, professional marketing, satisfied technical support and OEM solutions. We offer Flow Packing Machine;Vertical Packing Machine;Metal Detector;Weight Checker and Weighter to fit the needs of different industries.
Due to continuous efforts in the field of end-of-line packaging devices, MOTECH Machinery was honored to obtain CE certificate and ISO 9001 certificate showed our emphasis on safety ,quality and has a successful sale in Asia, American, Africa and so on. MOTECH looks forward to establishing a long-term and mutual beneficial partnership with more agents or distributors all over the world. Moreover, We provide the OEM solution based on strict quality control for famous companies in Japan, USA etc.
In the future, MOTECH Machinery will keep to provide customers:
-Quality machines
-Competitive price
-Satisfied service
Our Team:
Exports of Wood Packaging. The list of countries requiring written statements and/or proof on the exterior of wood packaging fluctuates
FAQ
Q1: How should I choose the right VFFS packing machine?
Answer: We will recommend suitable models and configurations based on your product characteristics, size, and package type. Normally, volumetric cup filler or multi-head weigher are optional for granular, block, and flake materials; linear weigher or auger scale for powder; liquid pump for different kind of liquid. For different packaging bag types, such as pillow bags, three-side seal bags, four-side seal bags, pre-made bags, etc., we also have different models to meet your needs.
Q2: I'm worried that I don't know how to operate your machine
Answer: Do not worry. Our pouch packing machine is servo controlled, which greatly simplifies the difficulty of operation and commissioning. Most of the daily operation of the machine can be conducted by a few start-stop buttons and HMI. If you have different products or packages that need to be changed, we can provide instructional videos to give you step-by-step tutorial. Also, the HMI has memory function, which is convenient for you to reload the settings in the future.
Q3: If I buy your automatic packing machine, what technical support can I get?
Answer: Whether buying a food packing machine or a grocery packing machine, we will provide you with 24-hour online technical support. In addition, we can also provide you with instructional videos on the installation and daily commissioning and maintenance. For some big project with custom-made packing machine, our professional after-sales technicians can also provide on-site installation and commissioning services as per request (buyer should bear the cost for the service).
Q4: How do we build trust in the first business?
Answer: We believe that a win-win business must be based on our professional services and excellent products. Our team will fully study your needs, and clearly explain our products and solutions to you so that you can understand our services. We can take you to visit our modern factory through a video call, so that you can understand how your machine will be produced and let you know more about our products. Before delivery, we can cooperate with your partners to carry out factory acceptance test, or carry out acceptance through test video or video call. Make sure that the high quality packing machine you need is ready before shipment.
Q5:How can I find the custom packing machine I need?
Answer: We will fully communicate of the information of your products, packaging scheme, and feeding method. We have nearly 12 years of experience as a packing machine factory and can provide you with similar case videos for your reference. If necessary, we will ask you for samples of products and packing films for testing, in order to find the most suitable and cost-effective solution for you.
EXPO
Our service:
- Professional and experienced after sales team for field installation & maintenance service.
- Proficient English communication.
- 24 hours Online service
- Remote diagnose & resolve problem.
- Sufficient spare parts supply.
- One-year warranty of machine.
