Product Description

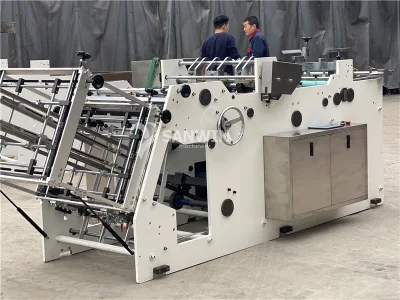

Automatic High Speed Paper Box Making Machine
Application:

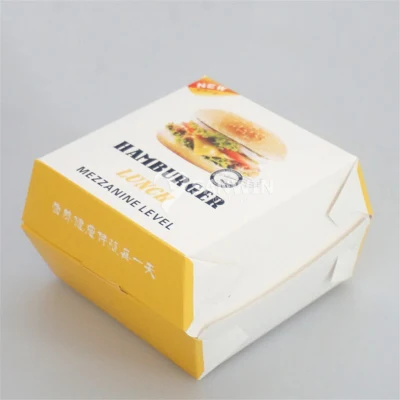

The paper carton erecting machine is an ideal choice to produce hamburger boxes,chips boxes,take away box,etc.It adopts micro-computer,PLC,servo feeding,alternating current frequency converter ,the vacuum-sucking,auto gluing,automatic paper tape counting,chain drive.All of these main parts and electric control system adopts famous brand to guarantee steady working,precise positioning,smooth running,safety and reliability operation.
Main Features :
2 .Using the British TRIO Motion Controller (PC), through the integration with the optical fiber to ensure high-speed operation and stability.
3 .Using the Japanese Original YASKAWA servo motor with the German original SICK photoelectric eye correction, accurate tracking printing bag size.
4 .The raw material loading and unloading adopts the pneumatic cylinder lifting structure, the roll adopts the full automatic constant tension control.
5 .Raw materials China correction using Taiwan Pasource , reduce the roll adjustment time alignment
| Type | HB-800 | HB-1200 |
| Production capacity: | 50-180 pcs/min | 80-320pcs/min |
| Suitable Material: | 200-600gsm card paper,PE coated paper, kraft paper, corrugated paper | |
Paper open length: | L100-450mm,degree:5°-40° | |
Paper open width: | B100-600mm Height H15-200mm | B100-400mm Height H15-200mm |
| Total Power: | 5KW | 6.25KW |
| Weight: | 1.7T | 2.4T |
| Dimension: | 3600 x1400 x 1700 mm | 3600 x 1850 x 1700 mm |
| power source | 380V 50HZ | |
NOTE: Please send your bag samples to us as well as its bag size, it is better for us to check each details and work out a proper offer.
1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer for 25 years
and focus on bag making machine,printing machine,film blowing machine,etc.
and we also have one trading company
2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the machine.
