Basic Info.
Model NO.
MZ-350B
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Film Width
Max.450mm
Bag Length
65-190 or 120-280mm
Bag Width
30-100mm
Product Height
Max.40mm
Max.Width of Roll Film
320mm
Packaging Speed
40-230bags/Min
Voltage
220V 50/60Hz
Power
2.4kw
Machine Weight
500kgs
Machine Size
4090*680*1420mm
Packing Mateiral
Film
Structure
Dual Frequency Conversion Control
PLC
Panasonic
Touch Screen
Siemens
Applications
Fish Packing
Transport Package
Wood Box
Specification
4090*680*1420mm
Trademark
DESEN
Origin
China
HS Code
8422309090
Production Capacity
500PCS/Month
Product Description

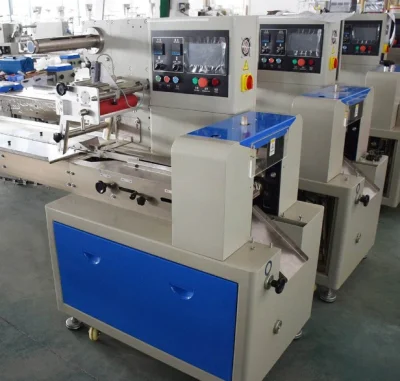

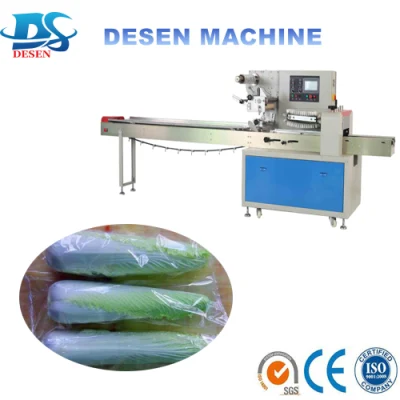

Machine Picture
Main Performance And Structure Features 1. The dual invention allows easy and soft cutting of bags.
Main Performance And Structure Features
2. Diagnosis of self failure, clear failure display; Positioning stop function, no knife stuck and waste of packaging materials.
3. High sensitivity photoelectric eye color mapping, numerical entry of cutting sealing position for additional precision.
4. The alternative sealing device allows a firmer seal and reduces film loss.
5.Using the famous brand PLC intelligent controller unit and inverter, the quality is more trustworthy.

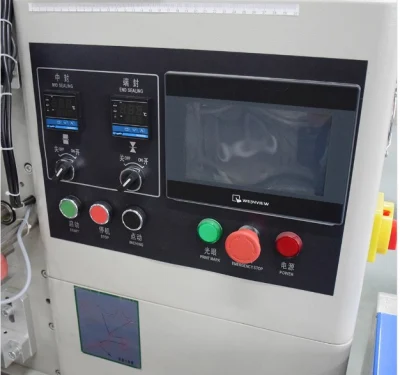

6.7 inch famous brand touch screen, the system is more intelligent and easy to operate.
7.Independent temperature control system, the temperature error is within ±2ºC.
8.Photocell sensor, automatically compensate the length deviation of the film.
9.The interface of the system is simple and easy to understand, and the parameter setting is easy and simple.
10.Automatic fault detection function, safe operation, protected equipment.
11.Flexible operation, high applicability, can be packed with a variety of materials, a machine for multi-purpose.
12.Automatically complete filling, bag making, sealing and date printing functions to realize industrialized rapid packaging.
13.It has high compatibility and can be matched with diversified equipment to meet diversified production requirements, such as punching, bagging, exhaust, aeration, QR code printing, etc.
14.The software operating system is stable. It also can customize the display of personalized logo and name in the boot screen of the system.
Machine Specification
(We have several Models. Don't Worry! We can customize the suitable one for you according to your requirements.
Just Tell us : Weight or Bag Size required.)
Just Tell us : Weight or Bag Size required.)
| Item | MZ-250X | MZ-350X | MZ-450X |
| Film Width | Max.250mm | Max. 320mm | Max. 450mm |
| Bag Length | 45-90mm/ 65~190mm/ 90-220mm/ 150-330mm | 65-190mm/ 120-280mm/ 90-220mm/ 150-330mm | 120-450mm |
| Bag Width | 30~110mm | 50~160mm | 60~210mm |
| Product Height | Max.40/70mm | Max.45/80mm | Max.110mm |
| Packing Speed | 40~230 bags/min | 40~230 bags/min | 30-150 bags/min |
| Power | 220V, 50/60HZ, 2.4KVA | 220V, 50/60HZ, 2.4KVA | 220V, 50/60HZ, 2.4KVA |
| Machine Size | L)3920 * W)670 * H)1320mm | L)4020 * W)720 * H)1450mm | L)3990 * W)900 * H)1468mm |
| Machine Weight | 800kg | 900kg | 900kg |
| 1.PLC Panasonic from Japan | |||||
| 2.Inverter Panasonic from Japan | |||||
| 3.Close to Switch Omron from Japan | |||||
| 4.Switch Button Schneider from German | |||||
| 5.Terminals Wade Miller from German | |||||
| 6.Display Screen WeiLun from TaiWan | |||||
| 7.Motor Jiangcheng from Guangdong | |||||
| 8.Photocell Yetai from Taiyan | |||||
| 9.Temperature Control List Omron from Japan | |||||
| 10.Pushbutton Switch Schneider from German | |||||
| 11.Power Ming Wei from Taiwan | |||||
| 12.Solid State Relay Schneider from German | |||||
| 13.Intermediate Relay Omron from Japan | |||||
| 14.Two Wire Switch Schneider from German | |||||
Main Electrical configuration( Above)
Spare parts for free:
1. Three pushers
2. A Mid-seal belt
3. A solid-state relay
4. Two heating tubes
5. One set tools
6. User manuels
7.Four foot cups
8.One set power cable.
Packing film material
Heat-sealable laminated film: such as OPP,Aluminized,POPP& other special sealable packing film.
