Basic Info.
Model NO.
AP-8BT
Forming Species
Melt Molding
Forming Function
Filling, Seal
Driven Type
Electrical and Pneumatic
Material Type
Multi Material by Differnt Dosing Unit
Packaging
Pre-Made Laminated Pouch
Packaging Material
Pre-Made Laminated Pouch
Transport Package
Standard Wooden Case
Specification
CE
Trademark
Alpha-Pack
Origin
Shenzhen, China
HS Code
8422303090
Production Capacity
500pieces/Year
Packaging & Delivery
Package Size
2660.00cm * 1810.00cm * 1950.00cm
Package Gross Weight
1790.000kg
Product Description

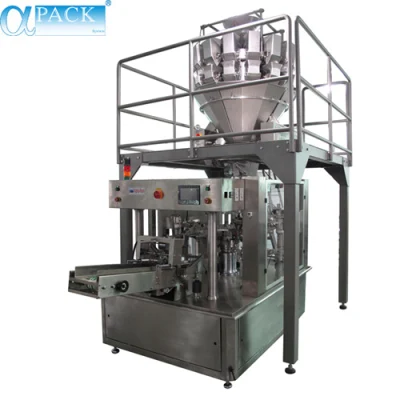

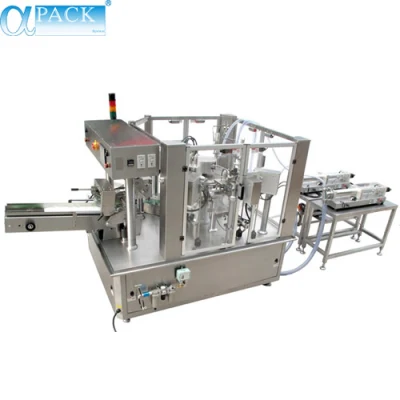

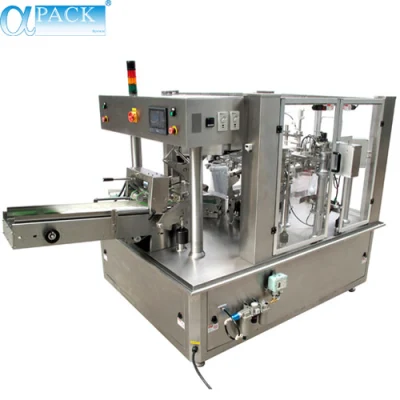

Rotary Filling and Sealing Packing Machine for pre-made pouches, Doypack Packing Machine, model AP-8BT
Application:

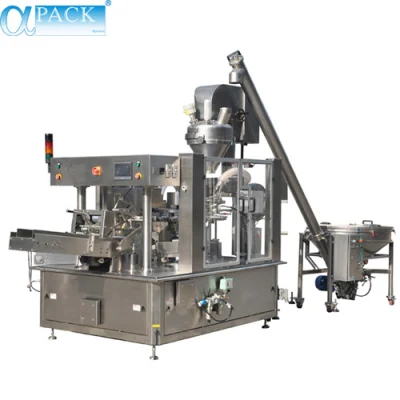

-Powder: Wheat flour, condiment, soup -(By use auger System)
-Granule: Sugar, Rice, Seasoning, pet food, coffee -(By use Volumetric Measure or Scale
-Liquid: Detergent, Shampoo, Rinse, Drinks -(By piston pump or rotary Pump)
-Paste: Retort food -(By spiral pump or rotary Pump)
Features:
1. Intermittent rotary machine with 8 Stations is designed for handling Pre-made pouches such as Flat and Stand-up Pouches (with / without Zipper)
2. Operating and adjusting via TOUCH SCREEN.
3. Fault indication on the TOUCH SCREEN.
4. Hygienic Construction and Easy cleaning.
5. High quality and long life of all machine part.
6. Integration of various filler, such as Auger filler weighting machine, volumetric doser, Liquid doser, Paste doser and other special doser.
7. Simple integration of peripheral equipment.
Packing Process:
1. Pouch feeding conveyor & pickup the pouch
2. Date coding & Zipper open device (option)
3. Open the bottom of pouch, for self stand pouch
4. Pouch top opening
5. First filling position
6. Second filling position (option)
7. First sealing position
8. Second sealing position (cold seal) and Pouch feed out conveyor
Standard Equipments:
-Bag feeding conveyor
-Bag opening blade with full opening detector
-Deflator
-P. I. D. Temperature controller
-Stainless Steel Construction
-Graphical color touch panel
-Discharge conveyor
Optional Equipments:
1. Zipper opening and closing device
2. Second filling position
3. Safety-guards with safety-switches
4. Date coder (Ribbon or Embossing or ink-jet type)
Standard Specifications:
Application:
-Powder: Wheat flour, condiment, soup -(By use auger System)
-Granule: Sugar, Rice, Seasoning, pet food, coffee -(By use Volumetric Measure or Scale
-Liquid: Detergent, Shampoo, Rinse, Drinks -(By piston pump or rotary Pump)
-Paste: Retort food -(By spiral pump or rotary Pump)
Features:
1. Intermittent rotary machine with 8 Stations is designed for handling Pre-made pouches such as Flat and Stand-up Pouches (with / without Zipper)
2. Operating and adjusting via TOUCH SCREEN.
3. Fault indication on the TOUCH SCREEN.
4. Hygienic Construction and Easy cleaning.
5. High quality and long life of all machine part.
6. Integration of various filler, such as Auger filler weighting machine, volumetric doser, Liquid doser, Paste doser and other special doser.
7. Simple integration of peripheral equipment.
Packing Process:
1. Pouch feeding conveyor & pickup the pouch
2. Date coding & Zipper open device (option)
3. Open the bottom of pouch, for self stand pouch
4. Pouch top opening
5. First filling position
6. Second filling position (option)
7. First sealing position
8. Second sealing position (cold seal) and Pouch feed out conveyor
Standard Equipments:
-Bag feeding conveyor
-Bag opening blade with full opening detector
-Deflator
-P. I. D. Temperature controller
-Stainless Steel Construction
-Graphical color touch panel
-Discharge conveyor
Optional Equipments:
1. Zipper opening and closing device
2. Second filling position
3. Safety-guards with safety-switches
4. Date coder (Ribbon or Embossing or ink-jet type)
Standard Specifications:
| Model No. | AP-8BT-IV | AP-8BTXL |
| Pouch size | Width: 130 ~ 250mm, Length: 150 ~ 350mm | Width: 150 ~ 300mm, Length: 200 ~ 500mm |
| Mechanical speed | 20 ~ 45 pouches / min | 15 ~ 35 pouches / min |
| Pouch material | Laminated film | |
| Pouch pattern | Flat, Stand-up, Zipper, Slider-zipper | |
| Safety device | No pouch-No fill - No seal Pouch open error - No fill - No seal Heater disconnection alarm Machine stop at abnormal air pressure Machine stop when safety guard is open or electrical cabinet is open Safety guard Non-open Pouches could be recycled | |
| Power consumption | 220V/ 380V, 3Phase, 50/ 60Hz, 3.8kw | |
| Air consumption | 500N liter / min, 6kg/ cm2 | |
