Basic Info.
Model NO.
KL-100YD
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Seasoning, Hand Sanitizer Gel Sachet Filling
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Liquid
Packaging
Bag
Packaging Material
Film
Machine Name

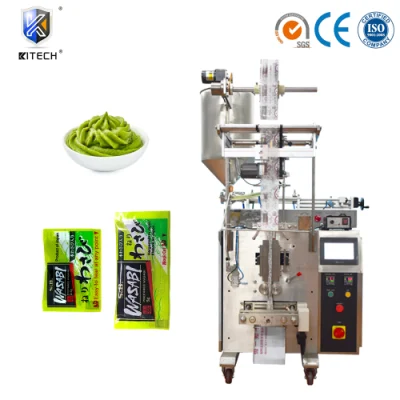

Wasabi Salad Paste Sauce Sachet Filling Machine
Region
Foshan, Guangdong, China Supply
Machine Material
304 Stainless Steel
Packing Material
OPP/CPP/PE/Pet/Po/PA/Al/VMCPP etc.
Controller System
PLC
Bag Length
Max.200mm
Bag Width
Max.150mm
Packing Speed
Max.70bags/Min
Packaging Accuracy
±0.5g
Power
1.6kw
Optional Devices
Data Printer, Air-Filling Device, Pouching Devic
Packaging Type
Back Sealing Pillow Bag
Optional Bag Type
3/4 Side Sealing Sachet
Transport Package
Export Wooden Case
Specification
(L)2200*(W)1580*(H)1450mm
Trademark
Kinghanlong
Origin
Guangdong, China (Mainland)
HS Code
8422303090
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
125.00cm * 90.00cm * 188.00cm
Package Gross Weight
280.000kg
Product Description
Applicable for laundry detergent, detergent,stuffing, shampoo,shower gel,oil etc.
1,Stainless steel surrounds the part where contact to the material. The machine is accordant with the European CE standard.
2,The computer controller is the first patented product in China, an advanced frequency converter, and supports multi-language control.
3,Unique embedded sealing, enhanced heat sealing organization, intelligent temperature controller with heatbalance to suitable for various of packaging material, good performance,clear sealing texture,firm sealing.

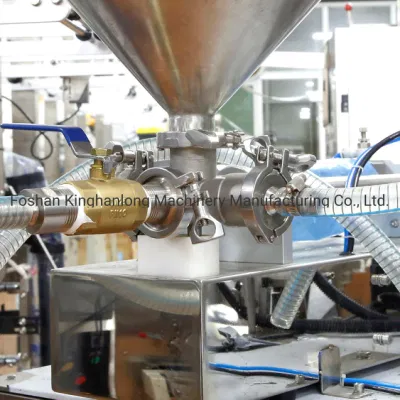

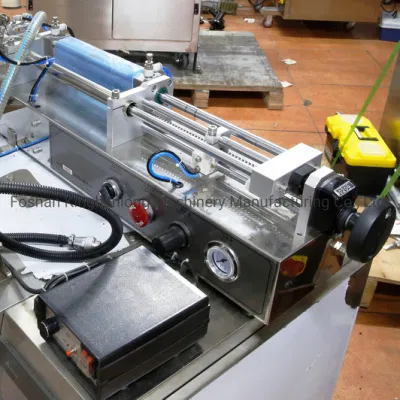

4,pump measurement adjusting device can adjust packaging capacity during running the machine, reduce the lost of material and improve productivity.
5,Bag system with stepping motor subdivision technology, high precision, and the error is less than 0.5mm.
Technical Parameters
| Machine model | KL-160YS | KL-100YS |
| Bag shape | pillow bag/stick sachet/3 side sealing/4 side sealing | |
| Packing speed | 10-70bags/min | 10-60bags/min |
| Packing capacity | 1-500ml | 1-60ml |
| Roll thickness | 0.05-0.15mm | |
| Roll diameter | Max:300mm | |
| Roll width | 30-320mm | 30-240mm |
| Bag width | 50-150mm | 30-100mm |
| Bag length | 40-200mm | 30-150mm |
| Power specification | 220V/50HZ/1.2KW | 220V/50HZ/1.4KW |
| Additional configuration | Coding printer/Gas-filled device/Bag connecting device/punch device/Easy to tear gap device | |
Please tell us about your bag size and we can match the suitable machine for you.
Application
Application
Suitable for ketchup,honey,oil,shampoo,sauce,oyster sauce,chili sauce,salad sauce,soy sauce,thick sauce,milk,water,liquid,automatic packaging.
FAQ
Make sample bags
If it's necessary according to your requirements, we can make sample bags for your reference.
Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
Overseas door to door service
Our engineer overseas door to door service is available.
Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
