Basic Info.
Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
Film
Weight (Kg)
500
The Biggest Roll Diameter
Max.300mm
Measurement Rang
50-500ml
Dimension(L*W*H)
(L)2860*(W)755*(H)1540mm
Packing Speed
30-80bags/Min
Warranty of Core Components
2 Years
Film Roll Width
Max.320mm
Key Selling Points
High-Accuracy
Voltage
220-380V
Modle Packaging Type
Automatic Grain Microwave Popcorn Sugar Packing
Film thickness
0.04-0.08mm
Net Weight/Gross Weight
350kg/430kg
Film Roll Length
Max.200mm
Transport Package
Standard Export Plywood Case Packaging
Trademark
OCPACK
Origin
Guangdong, China
Production Capacity
50bag/Min
Product Description
| Technical specifications | ||||
| MODEL | OC-320A | OC-420AZ | OC-520AZ | |
| FILLING RANG | 50~800ML | 150~1500ML | 150~2000ML | |
| PACKAGING SPEED | 30~80BAGS/MIN | 5~60BAGS/MIN | 10~50BAGS/MIN | |
| BAG WIDTH | 50~150MM | 50~200MM | 80~250MM | |
| BAG LENGTH | 40~280MM | 80~300MM | 80~350MM | |
| FILM WIDTH | MAX.320MM | MAX.420MM | MAX.520MM | |
| POWER | 220V,50/60HZ/1.2KW | 220V,50/60HZ/2.2KW | 220V,50/60HZ/3KW | |
| MACHINE WEIGHT | 550KG | 650KG | 750KG | |
>What do you want to pack?
Suitable for packaging granular objects such as soybeans, peanuts, coffee beans, cashews, rice, wheat, oats, corn kernels, etc.
Optional Devices

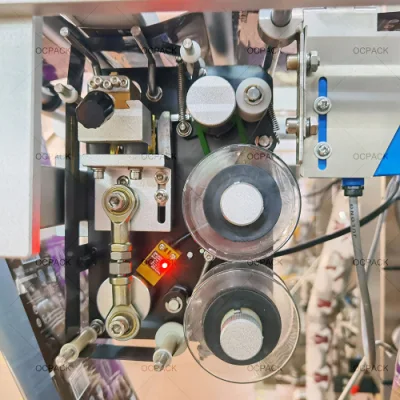

The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.
1.Smart screen
Brand: Weinview or customized according to your needs Language: You can choose seven languages, for example: English,Russian, Spanish, French, etc. You can also customize the language as needed. Function: You can set and change the weight of the packaging material and the length of the bag.

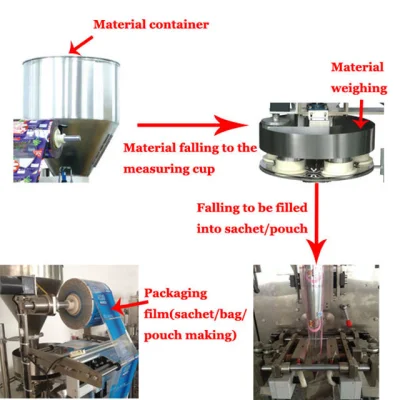

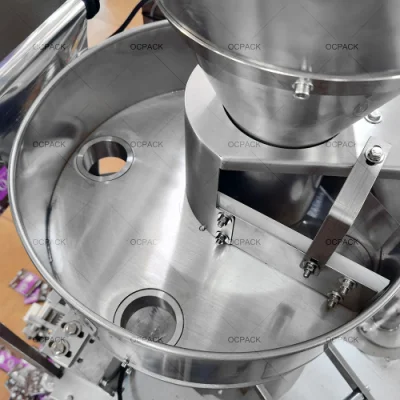

2.Cup metering device
Material: Food Grade 304SUS+ plastic Quantity: 4 pcs Volume Stainless Steel Size: 10-500ml * Using volume conversion principle technology, simple and small error range * Automatic filling goods if full will be stop filling,not need people maual. *It suitable for all small granule products,like rice, white sugar, beans, washing powder,candy
3.Bag maker
*The bag making machine is made of 304 stainless steel and driven by a servo. *The packaging film ispulled into the bag making machine by friction. *The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various widths.
4.Cutting & sealing parts
High speed of fine and clean cutting and sealing bags.
*Positioned stop function avoides sticking blades and wasting materials.
*According to customer needs,the bag types can be changedback seal, three sides seal, four side seal.
*Positioned stop function avoides sticking blades and wasting materials.
*According to customer needs,the bag types can be changedback seal, three sides seal, four side seal.
1. Professional and Strong Team
Ocpack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
2. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.
3. Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail. 3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
1: How to find a Packing machine suitable for my product?
Tell me about your product details.1. What kind of product you have. 2. The size of your product( the length, width, and height).
2: Is an engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
3. Are you a factory or trading company?
We are the factory, and especially R&D, manufacture and sell various packing euipments. We have engaged in the packing R&D and production for over 10 years. Automatic liquid packing machine
4. What's your payment way?
T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash.
5. How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
7. Why we should choose your company?
We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
