Product Description

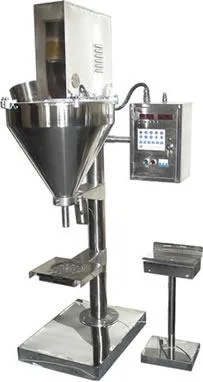

curry powder/chilli powder weighing packing packaing filling bagging machine
Auger filler can filling machine Powder packing machine
(10g-5000g)
Characteristics:
A, The powder packing machine is a machine with mechanical, electrical, optical, instrument in whole one, single-chip control, with functions of automatic quantitative, automatic filling, automatic adjustment of measurement errors and so on.
B, Fast speed: adopting spiral blanking, the light-control technology
C, High precision: adopting the servo motor and electronic weighing technology
D,Materials from 5-30KG can be on the same quantitative packing machine continuously adjustable, by adjusting the electronic keyboard and different models of blanking screw
E, Applicable to a wide range: a certain fluidity of powder-like, granular material all can be packed.
F, Suitable for bags, cans, bottles and other containers powder packing
G, The error caused by the proportion of materials and materials level changed can be automatically tracked
H,Photoelectric-switch control, only the need of manual bagging. The pocket is clean, easy to seal.
I, Parts contacted with the material are made of stainless steel, easy to clean to prevent cross-contamination
J, The machine can be configured for feed device, more user-friendly.
Introductions:

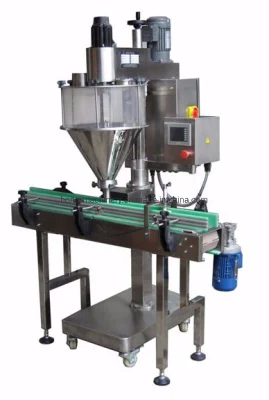

1# This is a automatic auger type can/bottles metering filling machine ,designed for metering and filliing various dry powder into different rigid containers: Can/Bottle/Jar etc.
2# The Machine provides powder metering and filling functions.
3# Bottles and cans are introduced by conveyor belt combined with gating system.
4# There is a photo eye sensor for bottles detection so as to achieve bottle-fill ,no-bottle no-fill.
5#Automatic bottle postioning-filling-releasing,optional vibration and elevation.
6# Featured with compact design,stable performance,easy to operate and good cost performance!
Specifications:
| Model | HN-L1W | HN-L5W |
| Control System | PLC and Full color HMI | |
| Hopper Volume | 25L | 50L |
| Filling Weight Range | 1-500g(With different size auger tools) | 10-5000g(With different size auger tools) |
| Filling Accuracy | <100g <+/-2% 100-500g <+/-1% >500g <+/-0.5% | |
| Filling Capacity | 10-40Units/Min(Depends on fill weight, container size and product density) | |
| Contact Parts | Fully Stainless Steel Construction and SUS304 for product contact parts | |
| Power Supply | 3P 208-415V 50/60HZ | |
| Total Power | 1.2KW | 1.6KW |
| Total Weight | 170KGS | 300KGS |
| Air Consumption | 4-6Bars | |
| Overall Size | 1500*760*1850MM | 2000*970*2030MM |
| Optional: Unscrambling Table, Collecting Table,Screw Conveyor, Capping Machine, Induction Sealer, Labelling Machine etc. | ||
Factory Show
Welcom to visit our fatory !
Our Service
1.We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.
2. OEM, Customized can be all accepted.
3. Contact us any time when you feel free.
Package Show
FAQ
Q: Can your machine be customized ?
A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 10 years and we have a strong design&technical team. We can design and manufacture as per your requirements.
Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawing and dimensions.
Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address with code. We have reliable shipping agent to ensure the safe, convenient and timely delivery.
Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid on delivery.
Minimum order quantity: 1 set, FOB Shanghai
Delivery time: about 20-30 working days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype,
Email etc. You can contact us any time, if urgently, please call us.
Q: what's the package ?
A: All goods are packed in wooden box
Q: Do you offer Installation&debugging?
A: Our engineers are available to service machinery overseas to help customers to solve machine problems.
bag packing machine
packing machine
Q: what's policy for guarantee and broken parts ?
A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
