Basic Info.
Model NO.
LZ520
Forming Function
Forming, Filling, Seal, Cutting
Driven Type
Pneumatic
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Other Functions
Vacuum, Gas Flushing, Nitrogen
Performance
200-4000 PCS/H
Certificates
CE, ISO9000
Mold
Two Sets for Free
Installation
Negotiation
Sullpier
Manufacturer
Transport Package
Strong Wooden Box
Specification
Length*Width: 60-600 mm * 60-460 mm
Trademark
Longbeier
Origin
Shandong, China
HS Code
8422400090
Production Capacity
550 Sets/Year
Product Description
Thermoforming Packaging Machine,it is a full automatic machinery with all functions of forming sealing cutting,with vacuumizing or nitrogen filling.
It uses all kinds of heat-sealing film or aluminium film,transparent or opaque, printed or unprinted film,flexible or rigid,to automatic pack your products.The films will become soft and be shaped as per the die shape under heating and air pressure(positive&negative) in the forming chamber,some cases an auxiliary mould(plug) will assist the shaping process.The whole process is under precisely control of PLC,continuously and automatically.
Technic Datas:
Details:
Preparation Functions:
Interface and program that can be connected to the feeding robot is reserved.
Interface for volumetric automatic metering system is reserved.
Interface for all the popular electronic scale/weighers is ready.
Interface for the automatic liquid filling is reserved.
Code, date and batch number,and various messages can be printed on each package when printer installed.
Optional Functions/compoments:
Top film shaping.
Vacuum or none vacuum
Gas/Nitrogen filling
Nitrogen generator
Inkjet printer
Printer is an optional device for our customers.
Product Features:
External high vacuum pump from Busch Germany,no pollution.
Busch Vacuum Pumps and Systems is one of the largest manufacturers of vacuum pumps in the world. Its headquarters is located in Maulburg (Germany), where the main German manufacturing facility is located.
Banner American photoelectric tracking system.
Equipped with cooling system for heat-sealing chamber.
Power off phase and reverse phase protection.
Electric leakage protection, automatically cut off power supply when leakage occur, to protect safety of operators.
Pneumatic components from AirTAC Inc, key parts (Pneumatic Festo/Vacuum valve/Valve Terminal)from Japan SMC.
Aluminum alloy integral side plate(Patent No.ZL2004200390983),high strength good straightness,hardly to distort.
Push-pull Siemens smart touch screen(include communication cables) and Siemens PLC.
Film moving controller&driver made by Mitsubishi or by Siemens.
Guide rail system of printer made by German Igus with Panasonic servo driving system.
Maintenance-free linear bearings of the cross-cutting knife made in Germany.
Panasonic inverter speed-regulating system(include communication cables).
Temperature sensors and controllers made by Siemens Germany or made by Omron Japan.
Stainless steel chain from REGINA Italy.
Pneumatic tensioning mechanism, pneumatic brake, prestress adjustable for both top and bottom film.
Equipped with film deviation automatic correcting system.
Equipped with film tension regulating system, the computer can automatically identify the sizes of rollers, automatically adjust tension to keep the same stress of upper and lower films.

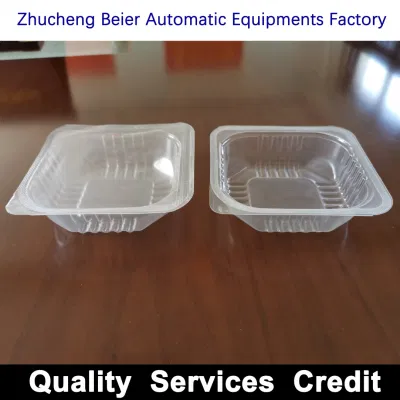

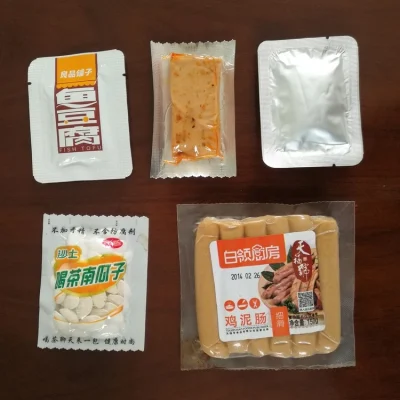

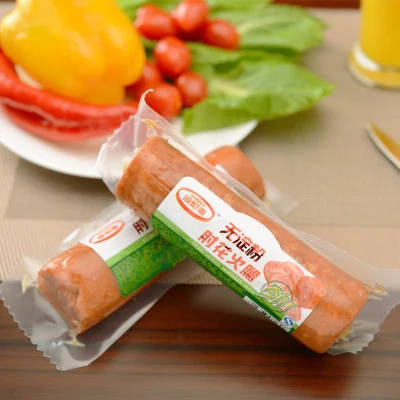

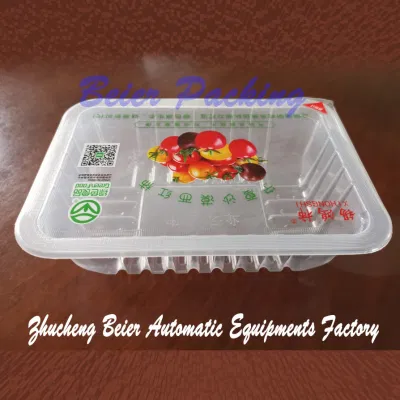

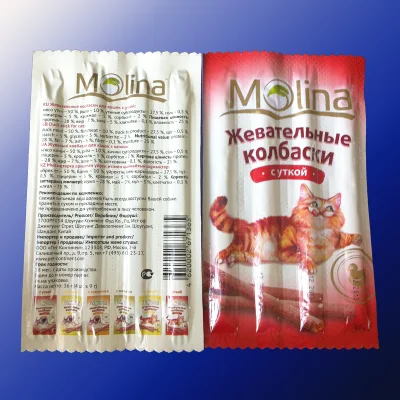

Packing Samples:
It uses all kinds of heat-sealing film or aluminium film,transparent or opaque, printed or unprinted film,flexible or rigid,to automatic pack your products.The films will become soft and be shaped as per the die shape under heating and air pressure(positive&negative) in the forming chamber,some cases an auxiliary mould(plug) will assist the shaping process.The whole process is under precisely control of PLC,continuously and automatically.
Technic Datas:
| Model | LZ320 | LZ420 | LZ520 |
| Width of top film | 296mm | 396mm | 396mm |
| Width of bottom film | 322mm | 422mm | 422mm |
| Chamber sizes | 300 x (200-400) mm | 400 x (200-400) mm | 500 x (200-600) mm |
| Maximum forming depth | 80mm | 80mm | 80mm |
| Producing capacity | 1000-11000 pcs/h | 1800-16000 pcs/h | 2400-18000 pcs/h |
| Vacuum | ≤200Pa | ≤200Pa | ≤200Pa |
| Compressed air | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
| Cooling water | ≥0.15MPa | ≥0.15MPa | ≥0.15MPa |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power rate | 7 KW | 12 KW | 14 KW |
| Dimension | 4500mm X 710mm X 1780mm | 7000mm X 900mm X 1800mm | 8000mm X 1000mm X 1800mm |
| Weight | 1300kg | 2200kg | 2800kg |
| Pumping rate | 60~100 m³/H | 160~200 m³/H | 300 m³/H |
| Working speed | 5-7 step/min | 4-6 step/min | 4-5 step/min |
| Free mould | 2 sets | 2 sets | 2 sets |
Details:
Preparation Functions:
Interface and program that can be connected to the feeding robot is reserved.
Interface for volumetric automatic metering system is reserved.
Interface for all the popular electronic scale/weighers is ready.
Interface for the automatic liquid filling is reserved.
Code, date and batch number,and various messages can be printed on each package when printer installed.
Optional Functions/compoments:
Top film shaping.
Vacuum or none vacuum
Gas/Nitrogen filling
Nitrogen generator
Inkjet printer
Printer is an optional device for our customers.
Product Features:
External high vacuum pump from Busch Germany,no pollution.
Busch Vacuum Pumps and Systems is one of the largest manufacturers of vacuum pumps in the world. Its headquarters is located in Maulburg (Germany), where the main German manufacturing facility is located.
Banner American photoelectric tracking system.
Equipped with cooling system for heat-sealing chamber.
Power off phase and reverse phase protection.
Electric leakage protection, automatically cut off power supply when leakage occur, to protect safety of operators.
Pneumatic components from AirTAC Inc, key parts (Pneumatic Festo/Vacuum valve/Valve Terminal)from Japan SMC.
Aluminum alloy integral side plate(Patent No.ZL2004200390983),high strength good straightness,hardly to distort.
Push-pull Siemens smart touch screen(include communication cables) and Siemens PLC.
Film moving controller&driver made by Mitsubishi or by Siemens.
Guide rail system of printer made by German Igus with Panasonic servo driving system.
Maintenance-free linear bearings of the cross-cutting knife made in Germany.
Panasonic inverter speed-regulating system(include communication cables).
Temperature sensors and controllers made by Siemens Germany or made by Omron Japan.
Stainless steel chain from REGINA Italy.
Pneumatic tensioning mechanism, pneumatic brake, prestress adjustable for both top and bottom film.
Equipped with film deviation automatic correcting system.
Equipped with film tension regulating system, the computer can automatically identify the sizes of rollers, automatically adjust tension to keep the same stress of upper and lower films.
Packing Samples:
