Basic Info.
Weight (Kg)
350
The Biggest Roll Diameter
Max.300mm
Packaging Film Material
OPP/CPP,OPP/CE,Mst/PE, Pet etc.
Dimension(L*W*H)
(L)3770*(W)670*(H)1450mm
Packing Speed
50-230bags/Min
Warranty of Core Components
2 Years
Film Roll Width
Max.250mm
Function
Filling, Labeling, Sealing, Slitting, Wrapping
Key Selling Points
Multifunctional
Products Heigh
Max.55mm
Voltage
220-380V
Machinery Test Report
Provided
Condition
New
Film thickness
0.04-0.06mm
Packaging Type
Bags, Cans, Case, Film, Foil, Pouch
Transport Package
a. Standard Export Plywood Packagingb. According T
Trademark
OCPACK
Origin
Guangdong, China
Production Capacity
50bag/Min
Product Description
| Technical specifications | | | | | ||||
| Type | OC-250B | OC-350B | OC-450B | | ||||
| Film width | Max.250mm | Max.350mm | Max.450mm | | ||||
| Bag length | 65~190mm/120mm~280mm | | 130~450mm | | ||||
| Bag width | 30~110mm | 50~160mm | 50~180mm | | ||||
| Product height | Max.40mm | Max.45mm | Max.80mm | | ||||
| Film roll diameter | Max.320mm | | | | ||||
| Packing rate | 40~230bags/min | | 30~180bags/min | | ||||
| Machine weight | 410KG | 490KG | 550KG | | ||||
>What do you want to pack?
Suitable for packing regular objects, such as bread, biscuits, moon cakes, cereal bars, ice cream,
Vegetables, chocolate, rusks,tableware, lollipops, etc.
Optional Devices
The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.

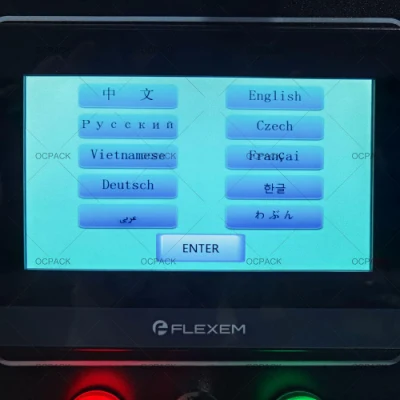

Smart Screen
Brand: Weinview or customized according to your needs
Language: You can choose seven languages,
For example: English,Russian,Spanish, French,etc. You can also customize the language as needed.
Function: You can set and change the weight of the packaging material and the length of the bag

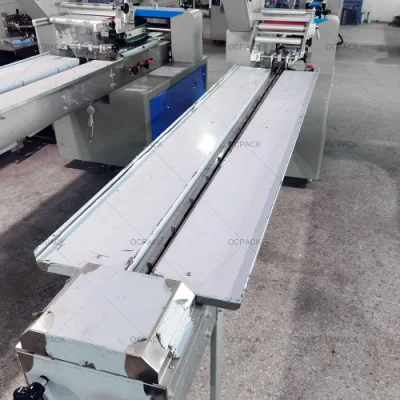

Material Conveyor Belt
* 304 Stainless steel fader type, PVC Belt, fader and plastic tray.
*Conveyor used food grade 304 stainless steel to ensure the good safely.
*The function of anti-aircraft bag can be added to keep materials in the packaging. When there is no material, the machine can automatically stop or alarm.

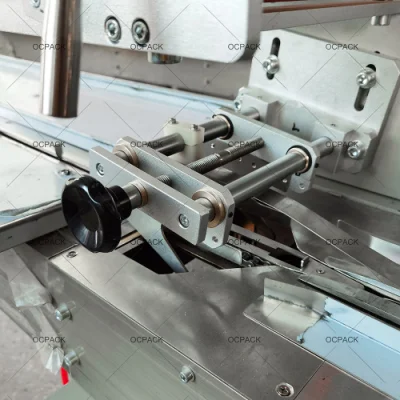

Bag Maker
*The bag making machine is made of 304 stainless steel and driven by a servo.
*The packaging film is pulled into the bag making machine by friction.
*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various widths.
Cutting & Sealing Parts
*It is Stainless steel of material to making it will than the irol will be strong more, he life can using more then 2 years.
*According the products to choice the single knife or double knife. *Customized sealing patterns and notch or automatic punching
device. * Positioned with two screws, it is easy to replace,and it is easier to clean with a copper brush.
*According the products to choice the single knife or double knife. *Customized sealing patterns and notch or automatic punching
device. * Positioned with two screws, it is easy to replace,and it is easier to clean with a copper brush.
Contact us now
Tell us your requirements, tell us your product information,
we will have a professional staff to provide you with a most suitable packaging solution!
You can also send us samples, we can provide free trial packaging service!
1. Professional and Strong Team
Ocpack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.
2. Excellent transportation service
According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.
3. Timely and effective after-sales service
Choosing us is not only buying a machine, but also our professional and timely service.
1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.
2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail. 3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.
4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.
