Product Description

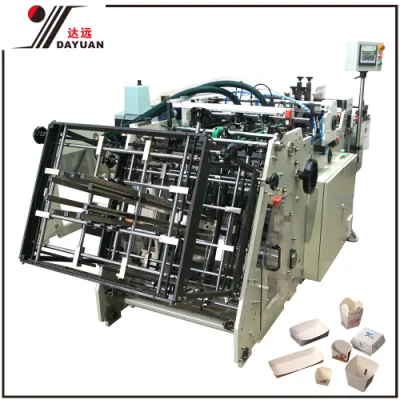

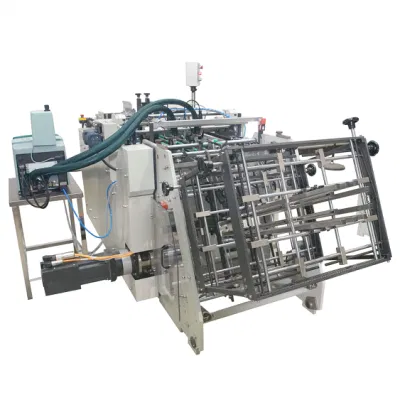

Features of Carton Erecting Machine
1. The finished products are counted automatically by a counter device.
2. It has low load power, 5KW and 8KW. Speed adjust by inventor brings more accurate.
3. The carton erecting machine uses a PLC encoder, has high automatic function, easy to operate and adjust, and causes less fault. Maintenance is convenient.
4. It uses a servo control system, making it more smooth, accurate, stable and with small vibration.
Machine type | L800-A / L800-C | |
Blank length | L | 100mm-450mm |
Blank length | B | 100mm-680mm |
Height of side flaps | H | 15mm-260mm |
Height of side flaps+lid | HI | 15mm-260mm |
Conicity |
| 5°-40° |
Machine Specification
| Voltage | 380V/50HZ |
| Covering Area | 4.0M*1.2M |
| The total Power (L800-A) | 8KW |
| The total Power(L800-C) | 5KW |
| Maximum Production Speed | 200 pcs/min |
| Air Pressure | 0.6Mpa(Dry and clean compressed air) |
| Materials | Paper Board 200-600gsm; corrugated board paper with thickness not exceed 1.5MM. |
| Machine Model NO | L800-A and L800-C |
| The differences between L800-A and L800-C | 1.L800-A adopts servo system to control the punching head,but L800-C adopts mechanical device to control the punching head,so L800-A is easier to change different box than L800-C. 2.L800-A is better to make eight corners boxes than L800-C. |
| Paper Box Sample | Free |
| Sample time | 1-3 days |
| Production Time | 45 days |

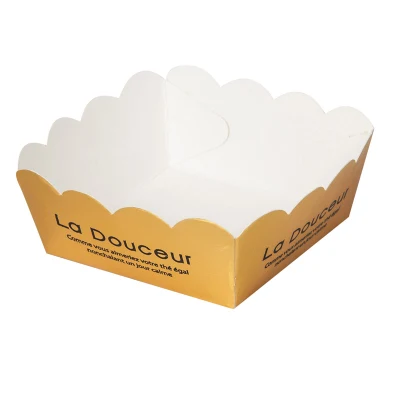

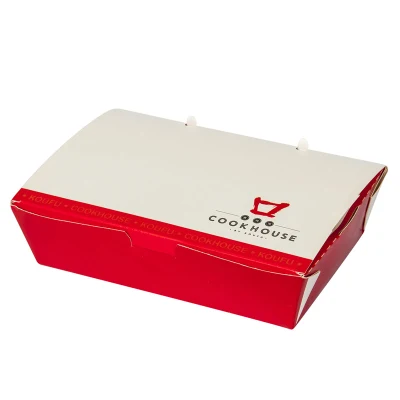

Sample Picture

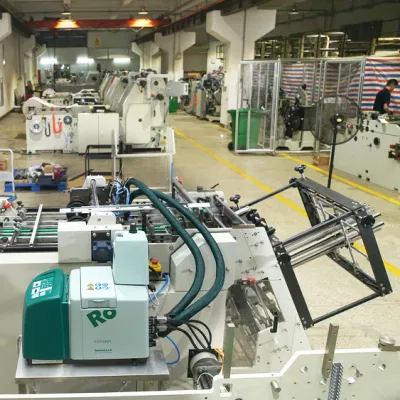

Dayuan Industrial Co. Ltd
Established in 1995, Dayuan is a carton erecting machine manufacturer and supplier based in China. We provide a wide array of paper processing machines, including ice cream paper cone machine, automatic paper punching machine, paper cone cup machine, etc.
Due to their high quality, stable performance and long service life, our products are sought after by customers in Spain, Chile, Venezuela, Greece, Honduras, Malaysia,the Philippines, Russia, etc.
Shipping And Packaging
| Shipping | By sea, or as your requirement to do | |
| Packaging | By Strong Wooden Case | |
| Packaging Dimensions | Case 1 | Size: 2980mm* 1560mm* 1320mm |
| Net weight : 1500KG | ||
| Gross weight: 1600KG | ||
| Case 2 | Size:1310mm*1170mm*900mm | |
| Net weight :250KG | ||
| Gross weight:290KG | ||
What's your advantage? Why we choose you?
A1:We have the most professional techniques and team, according to the customer requirements, we supports customized machine.A2:We are a professional manufacturer and warmly welcome clients from worldwide to visit our factory and cooperate with us.
Warranty of the machine?
One year warranty except the consuming spare parts.
What is the service?
7 days 24 hours on line service, engineer oversea service is also available if necessary.
What is the delivery terms ?
FOB Zhongshan, CNF destination port under LCL and FCL is available.
What is the delivery time?
45 working days after the confirmation of the order.
What's the payment terms?
T/T would be better with quick transfer and few bank fees,30% deposit, balance before shipment.
