Basic Info.
Product Description
Lin-pack Automatic Grain Beans Seeds Cndy Chips Puffed Food Snack Pouch Packing Machine
Machine General Properties: The system is designed for handling premade pouches (flat , stand-up , zipper pouches etc ), stored in a magazine , picks up an empty pouch, transfer into grippers, opens the pouch, fills with product, heat seals then discharges the product.
Technical Parameter:
| Model | MR8-200RH | MR8-200R | MR8-300R |
| Pouch Type | Four-side seal bags, stand-up pouches with or without spout, zipper bags, three-side seal bags, paper bags, etc. | ||
| Bag Size | W:50-200 mm , L:100-350mm | W:50-200 mm , L:100-350mm | W:50-200 mm , L:100-350mm |
| Max. Filling | 2000g | 2000g | 2500g |
| Max. Speed | 60 bags/min | 60 bags/min | 45 bags/min |
| Power | 4kw | 4kw | 4kw |
| Dimension | 2200×1550×1410 | 2200×1550×1450 | 2450×1750×1450 |
| Weight | 1500kg | 1500kg | 1700kg |
| Air consumption | ≥0.6m3/min | ||
We can customize the suitable one for you according to your requirement. Just Tell us : Weight or Bag Size required. | |||
Features :

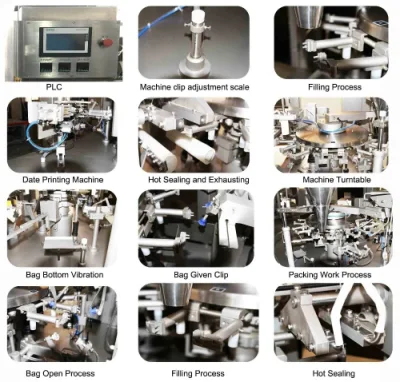

1) Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
2) The speed of the machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
3) Automatic checking system can check bag situation, filling and sealing situation.
The system shows 1.no bag feeding, no filling and no sealing. 2.no bag opening/opening error, no filling and no sealing 3.no filling, no sealing..
4) The product and pouch contact parts are adopted stainless steel and other advanced material to guarantee the hygiene of products.
Safety Measures:
1.no bag feeding, no filling and no sealing.
2.no bag opening/open error, no filling and no sealing
3.Machine alarm and stop when inadequate air pressure.
4..Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Applications : Candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked food, pickles, puffed food, daily necessities, etc. MSG, chicken, sugar, melon seeds, nuts, capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials.etc...
Suitable Pouch Type: Various bag types are available, Heat sealable performed side seal bags, 4 side seal , zip-lock ,stand-up pouch with or without spout,paper bag.
COMPANY INFORMATION
5 INVENTION PATENTS & 58 UTILITY PATENTS
WITH CUSTOMERS
OUR SERVICE / WHY CHOOSE US?
The machine can be remote controlled after it connect the Ethernet ,. If any problems with the machine/programming,we can connect the machine and check the problem in our factory directly. It Improves the after-sales service efficiency.
1.One Year Warranty, As long as there is a non-human fault in a year,free re-placement parts.
2.Parts Replacement, Don't worry about the parts damaged or not sell after the machine is sold. we have a field factory with hundreds of employees to serve you.
3.Engineer Assignment, Lifelong maintenance.
4.Online Instruction,We open online services,our engineers will be the first time for a one-to-one troubleshooting.
5.Feedback Survey,The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
QHow can I know your machine is designed for my product?
AYou can Send us product samples and Have a test on our Machine
QDo you test all your goods before delivery?
AYes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.
QDo you have any technical supports?
AYes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
QHow can I know the machinery quality before shipping?
AWe will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
IF YOU HAVE ANY OTHER QUESTIONS, PLEASE CONTACT US !
