Basic Info.
Model NO.
TFD-380S
Application
Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Vegetable, Fruit, Fish, Meat, Snack
Type
Filling and Sealing Machine
Forming Species
Melt Molding
Forming Function
Forming
Driven Type
Electric
Material Type
Solid
Packaging
Bag
Packaging Material
Film
Transport Package
Wooden Case
Specification
(L)4000mmx(W)1150mmx(H)1700mm
Trademark
Tefude
Origin
China
Production Capacity
200set/Month
Packaging & Delivery
Package Size
165.00cm * 120.00cm * 180.00cm
Package Gross Weight
650.000kg
Product Description

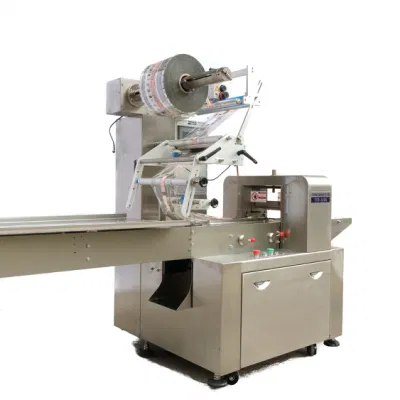

The TFD-380S automatic flow wrapper with 3 servo motors. The packing speed is up to 250 bags in one minute. Good quality and competitive price make our products are hot sell in our domestic and oversea markets.
Mode of product | TFD-320S | TFD-380S | TFD-480S | |
Packing speed | 35-300bags/min | 35-300bags/min | 35-300bags/min | |
Bag size | (L)80-480(W)30-220(H)5-35MM | (L)80-480(W)30-220(H)5-60MM | (L)80-480(W)30-220(H)5-80MM | |
Film width | 80-300mm | 80-350mm | 80-450mm | |
Packing material | OPP/CPP PT/PE KOP/CPP ALU-FOIL | |||
Dimension | (L)3000mmx(W)1150mmx(H)1700mm | |||
Heat power | 2.4KW | 3.8KW | 3.8KW | |
Motor power | About 5.0KW | About 6.8KW | About 6.5KW | |
Power supply | AC 200-240V 50HZ | AC 200-240V 50HZ | AC 200-240V 50HZ | |
Gross Weight | 650kgs | 680kgs | 680kgs |
