Basic Info.
Model NO.
LZ420
Driven Type
Pneumatic
Material Type
All
Packaging
Tray/Bag/Box/Pouch
Packaging Material
Film
Other Functions
Vacuum, Gas Flushing, Map, Skin Packing
Certificates
Ce, ISO9001
Transport Package
Strong Wooden Box
Trademark
BEIER
Origin
Shandong, China
HS Code
8422
Production Capacity
500 Sets/Year
Product Description

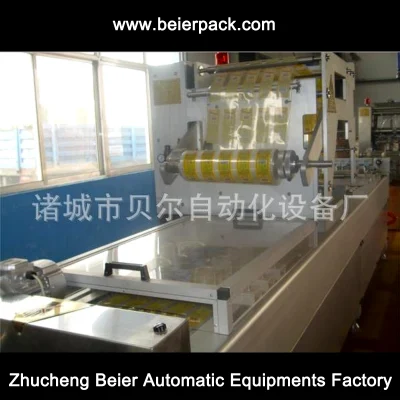

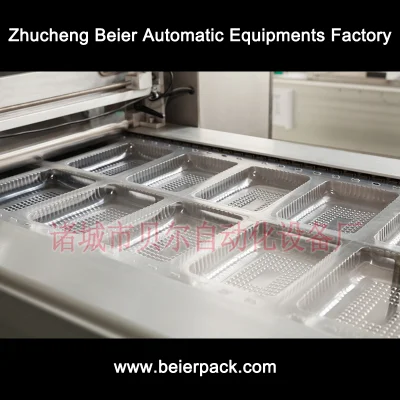

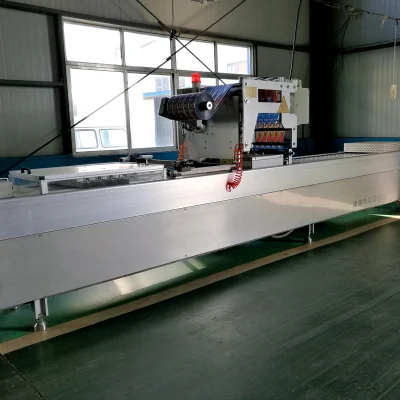

It is also named continuous film stretch vacuum MAP packing machine by Chinese people.The equipment consists of two types of working chamber:Thermoforming chamber&Heat sealing chamber.The package materials are aluminium foils or a variety of films:transparent or opaque, printed or unprinted,flexible or rigid.They will become soft and be shaped as per the die shape under heating and air pressure(positive&negative) in the forming chamber,some cases an auxiliary mould(plug) will assist the shaping process.There are two types of films/foils:Top film&bottom film according to their usages in the packing process.Generally,film thermoforming refers to the bottom film,top film is the cover.Top&bottom films will be sealed together in the heat sealing chamber. To get a more beautiful and triaxial vision of the package, the top films also can be shaped into some different shapes,it is call 'Top Film Thermoforming'.The whole process is under precisely control of PLC,continuously and automatically.
Application:
All kinds of food,delicatessen,omophagia,meat, snacks,seafood,fruits and vegetables,pickles,animal feed,pharmaceutical,hardware components,etc.
Technic Datas:
Important message:
*Type of cutting knife: Linear cutting,zigzag cutting,rounded corner cutting,etc.
*Single/Double thermoforming:Only bottom film thermoforming or Dual films thermoforming(for both top and bottom films).
*Gas inflating and none gas-inflating (such as nitrogen,carbon dioxide)
*Typical machine types:LZ320, LZ420, LZ520.
Preparation Functions:
Interface and program that can be connected to the feeding robot is reserved.
Interface for volumetric automatic metering system is reserved.
Interface for all the popular electronic scale/weighers is ready.
Interface for the automatic liquid filling is reserved.
Code, date and batch number,and various messages can be printed on each package when printer installed.
Optional Functions:
Top film thermoforming.
Vacuum or none vacuum
Gas/air inflating
Format/die fast change system
Nitrogen producer
Rounded corner cutting knife
Inkjet printer
Product Features:
External high vacuum pump from Busch Germany,no pollution.
Busch Vacuum Pumps and Systems is one of the largest manufacturers of vacuum pumps in the world. Its headquarters is located in Maulburg (Germany), where the main German manufacturing facility is located.
Banner American photoelectric tracking system.
Equipped with cooling system for heat-sealing chamber.
Power off phase and reverse phase protection.
Electric leakage protection, automatically cut off power supply when leakage occur, to protect safety of operators.
Pneumatic components from AirTAC Inc, key parts (Pneumatic Festo/Vacuum valve/Valve Terminal)from Japan SMC.
Aluminum alloy integral side plate(Patent No.ZL2004200390983),high strength good straightness,hardly to distort.
Push-pull Siemens smart touch screen(include communication cables) and Siemens PLC.
Film moving controller&driver made by Mitsubishi or by Siemens.
Guide rail system of printer made by German Igus with Panasonic servo driving system.
Maintenance-free linear bearings of the cross-cutting knife made in Germany.
Panasonic inverter speed-regulating system(include communication cables).
Temperature sensors and controllers made by Siemens Germany or made by Omron Japan.
Stainless steel chain from REGINA Italy.
Pneumatic tensioning mechanism, pneumatic brake, prestress adjustable for both top and bottom film.
Equipped with film deviation automatic correcting system.
Equipped with film tension regulating system, the computer can automatically identify the sizes of rollers, automatically adjust tension to keep the same stress of upper and lower films.
**************************************************************************************
**************************************************************************************
Packing Samples:
Application:
All kinds of food,delicatessen,omophagia,meat, snacks,seafood,fruits and vegetables,pickles,animal feed,pharmaceutical,hardware components,etc.
Technic Datas:
| Model | LZ320 | LZ420 | LZ520 |
| Width of top film | 296mm | 396mm | 496mm |
| Width of bottom film | 322mm | 422mm | 522mm |
| Chamber sizes | 300 x (200-400) mm | 400 x (200-400) mm | 500 x (200-600) mm |
| Maximum forming depth | 80mm | 80mm | 80mm |
| Producing capacity | 1000-11000 pcs/h | 1800-16000 pcs/h | 2400-18000 pcs/h |
| Vacuum | ≤200Pa | ≤200Pa | ≤200Pa |
| Compressed air | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
| Cooling water | ≥0.15MPa | ≥0.15MPa | ≥0.15MPa |
| Power supply | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Power rate | 7 KW | 12 KW | 14 KW |
| Dimension | 4500mm X 710mm X 1780mm | 7000mm X 900mm X 1800mm | 8000mm X 1000mm X 1800mm |
| Weight | 1300kg | 2200kg | 2800kg |
| Pumping rate | 60~100 m³/H | 160~200 m³/H | 300 m³/H |
| Working speed | 5-7 step/min | 4-6 step/min | 4-5 step/min |
| Free mould | 2 sets | 2 sets | 2 sets |
Important message:
*Type of cutting knife: Linear cutting,zigzag cutting,rounded corner cutting,etc.
*Single/Double thermoforming:Only bottom film thermoforming or Dual films thermoforming(for both top and bottom films).
*Gas inflating and none gas-inflating (such as nitrogen,carbon dioxide)
*Typical machine types:LZ320, LZ420, LZ520.
Preparation Functions:
Interface and program that can be connected to the feeding robot is reserved.
Interface for volumetric automatic metering system is reserved.
Interface for all the popular electronic scale/weighers is ready.
Interface for the automatic liquid filling is reserved.
Code, date and batch number,and various messages can be printed on each package when printer installed.
Optional Functions:
Top film thermoforming.
Vacuum or none vacuum
Gas/air inflating
Format/die fast change system
Nitrogen producer
Rounded corner cutting knife
Inkjet printer
Product Features:
External high vacuum pump from Busch Germany,no pollution.
Busch Vacuum Pumps and Systems is one of the largest manufacturers of vacuum pumps in the world. Its headquarters is located in Maulburg (Germany), where the main German manufacturing facility is located.
Banner American photoelectric tracking system.
Equipped with cooling system for heat-sealing chamber.
Power off phase and reverse phase protection.
Electric leakage protection, automatically cut off power supply when leakage occur, to protect safety of operators.
Pneumatic components from AirTAC Inc, key parts (Pneumatic Festo/Vacuum valve/Valve Terminal)from Japan SMC.
Aluminum alloy integral side plate(Patent No.ZL2004200390983),high strength good straightness,hardly to distort.
Push-pull Siemens smart touch screen(include communication cables) and Siemens PLC.
Film moving controller&driver made by Mitsubishi or by Siemens.
Guide rail system of printer made by German Igus with Panasonic servo driving system.
Maintenance-free linear bearings of the cross-cutting knife made in Germany.
Panasonic inverter speed-regulating system(include communication cables).
Temperature sensors and controllers made by Siemens Germany or made by Omron Japan.
Stainless steel chain from REGINA Italy.
Pneumatic tensioning mechanism, pneumatic brake, prestress adjustable for both top and bottom film.
Equipped with film deviation automatic correcting system.
Equipped with film tension regulating system, the computer can automatically identify the sizes of rollers, automatically adjust tension to keep the same stress of upper and lower films.
**************************************************************************************
Zhucheng Beier Automatic Equipments Factory
Yangjialing Industrial Park, Mizhou District, Zhucheng city, Shandong,China
Packing Samples:
