Beans Thermoforming Vacuum Map Packaging Machine

Discover the efficiency of our Beans Thermoforming Vacuum Map Packaging Machine. As a factory, we offer top-quality packaging solutions. Contact us now.
Request a Quote


  • Overview
  • Product Description
  • Detailed Photos
  • Our Advantages
  • Product Parameters
  • After Sales Service
  • FAQ
  • Company Profile

Basic Info.

Model NO.
Material Type
Packaging Material
304 Stainless Steel
6-8cycles Per Minute
Max. Forming Depth
Film Max, Thickness
Transport Package
Plastic Wooden Case
HS Code
Production Capacity
50-60 Sets Per Year

Product Description


Product Description

Automatic Thermoforming Packaging Machines:

Currently, vacuum and gas flush packaging is widely applied to pack various food, such as nuts, dates, beans, and more. It offers an unparalleled combination of freshness and retail presentation, enabling processors and retailers to offer customers the highest quality products available.

Our machine is able to do the whole process from package forming, vacuum-sealing, cutting to final output.

With innovative technology, it's helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.

Beans Thermoforming Vacuum Map Packaging Machine


Detailed Photos

Beans Thermoforming Vacuum Map Packaging Machine
Beans Thermoforming Vacuum Map Packaging Machine

More application
Beans Thermoforming Vacuum Map Packaging Machine
Beans Thermoforming Vacuum Map Packaging Machine
Beans Thermoforming Vacuum Map Packaging Machine


Our Advantages

1) Long shelf life
Various packaging options are offered for the top freshness

2) Cost-effective
Each package is sealed using only the necessary amount of film,resulting 40 percent less material than other traditional wrapping packaging

3) Easy operation
By finger touch on PLC screen,you can easily control the whole machine

4) Reliable quality
Spare parts of international top brands, and experience workman

5) Flexible design
The package shape, column, packaging speed can all be customized

6) Packing speed
Usually, the capacity is usually 5-7 circles/min, and the max capacity can reach 12 circles/min.
7) Thermoforming depth
Our max forming depth is 120mm with homogeneous deformation


Product Parameters

Beans Thermoforming Vacuum Map Packaging Machine

Machine details:

Beans Thermoforming Vacuum Map Packaging Machine

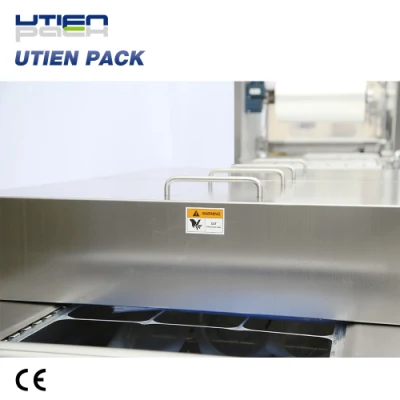

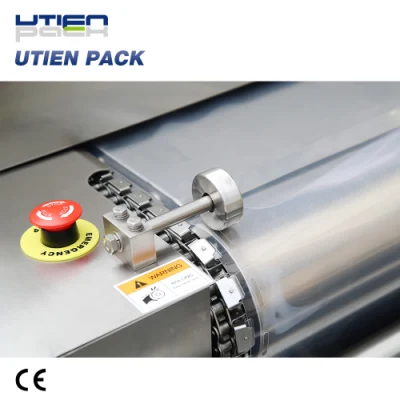

Safety is our top concern in machine design. To ensure the security of workers and machines, many sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.




The machine is fully automatic from package forming to final product output. And it can be fully controlled by 10'' PLC touch screen.
Beans Thermoforming Vacuum Map Packaging Machine
Beans Thermoforming Vacuum Map Packaging Machine


We have a team of engineers to design every machine detail for customers' satisfaction. Also, we're capable to apply other third-party equipment to make a better auto packaging line.


Technical data for reference

Machine Parameters
Speed 5-7Cycles/min
Forming Depth ≤150mm
Film widths ≤520mm
Advance Length ≤500mm
Bottom Film
Material Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print Unprinted Color Bottom Film or Transparent Film
Roll Diameter 500mm
Thickness ≥300um
Top Film
Material Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print Pre-printed Top Film or Transparent Top Film
Roll Diameter 250mm at most
Thickness ≤200um
Vacuum Pump BUSCH(Germany)
Electrical Components Scheneider(French)
Pneumatic Components SMC(Japanese)
PLC Touch Screen & Servo Motor DELTA(Taiwan)
Machine Parameters
Dimensions 6000mm*1300mm*1870mm
Weight 2000kg
Working Height 1000mm
Loading Area Length 1500mm(Customizable)

The parameter in this sheet is for reference only, some of the data may be different with different case.

After Sales Service

1) The whole machine has 12 months warranty exclude wearable parts such as silicone plate, film, heating elements and so on.
2) Special overseas engineering service is not included in the warranty.
3) Other items or service require can be negotiated.

2. Information
1) We offer information about packages and machinery before making a special offer.
2) We have multiple after-sale services include online guiding, engineering service, install & tuning service, and so on.

3. Design
1) We can provide package design service at the request of the customer.
2) We can customize machine function, appearance, and special requests within a reasonable range.
3) We can make a certain design of the package under request.



Q1: How long does it take to deliver the machine after the order & deposit?

A1: Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At the first 30 days, the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days, the machine will be assembled and tuned to make sure it is ready to deliver.


Q2: What do you need to make a specific offer for my product?

A2: To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.


Q3: Can you offer oversea service?

A3: Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange an engineer to go to your factory personally to solve the issue.
