Basic Info.
Model NO.
MODEL-500/600L
Computerized
Computerized
Certification
QS
After-sales Service
All Time
Maximum Width
640mm
Maximum Depth
90mm
Quantity Heater
141PCS
Production Rate
15-30die/Min
Power
25kw
Heater
Germany
Transport Package
Wrapping Film Packaging
Specification
size: 600mm*500mm
Trademark
Mingdu
Origin
China
HS Code
8477409000
Production Capacity
5sets/Month
Product Description
MODEL-600L MULTISTATION THERMOFORMING MACHINE
Model-600L thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PSP/PLA plastic products.
Main Feature:
1. This Machine is with PLC program control and lift HIM, with function of forming, punching, cutting and stacking.
2. The main parts are used with high quality and international brand.
3. Machine with stable running, easy operation features, servo motor control, large power of punching and cutting, temperature control by PID, convenient for all kinds of plastic products.

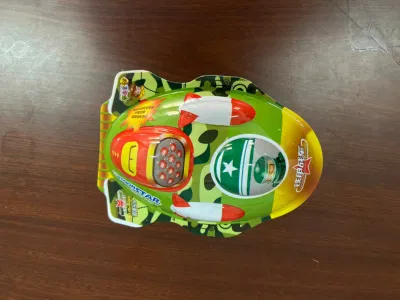

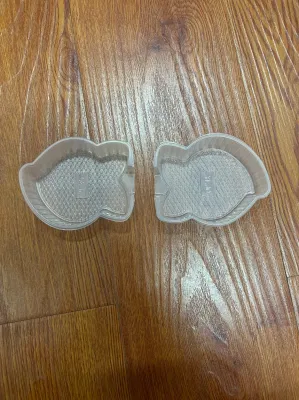

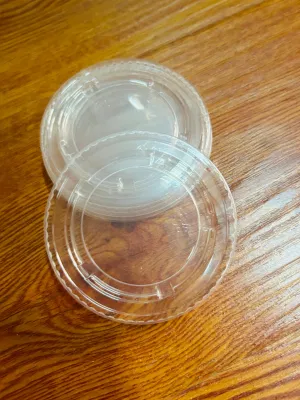

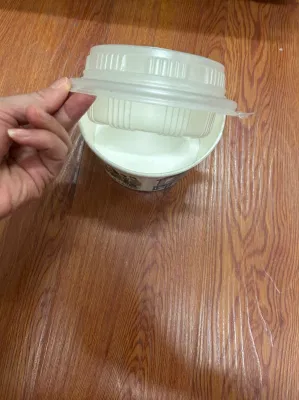

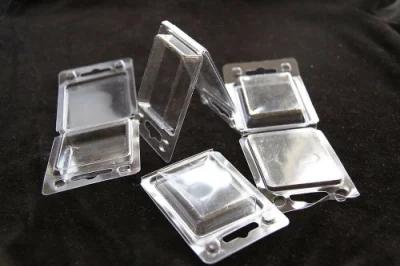

Sample:
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
Quotation: valid for 30days.
| technical parameter: | MODEL-500/600L |
| Suitable Sheet | PP+PE, Casting PP, PLA, PET, PVC, PS, |
| Largest Forming Area | 600mm*500mm |
| Maximum Width | 620mm |
| Maximum Depth | 90mm |
| Power | 68Kw |
| Air Pressure | 0.6-0.8Mpa |
| Production rate | 10-30die/min |
| Depth of Sheet Material | 0.10mm-1.50mm |
| Weight | 5200Kgs |
| Overall Dimension | 7500mm*2000mm*2200mm(L*W*H) |
Model-600L thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC/PSP/PLA plastic products.
Main Feature:
1. This Machine is with PLC program control and lift HIM, with function of forming, punching, cutting and stacking.
2. The main parts are used with high quality and international brand.
3. Machine with stable running, easy operation features, servo motor control, large power of punching and cutting, temperature control by PID, convenient for all kinds of plastic products.
Sample:
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
Quotation: valid for 30days.
