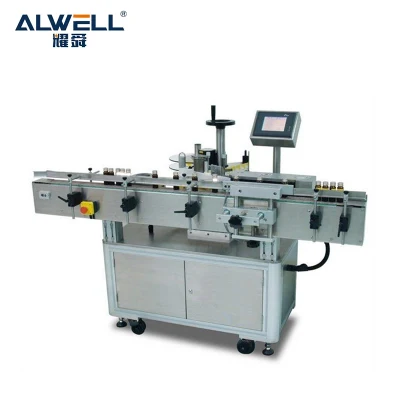

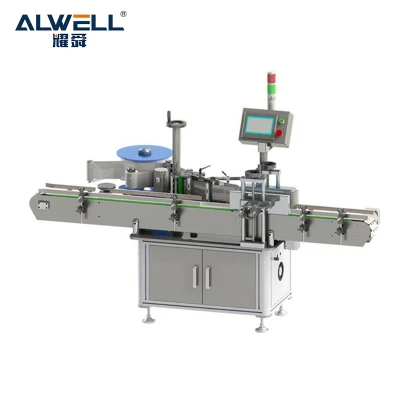

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine

Automatic Bottle Labeling Machine: Factory-made square, round, flat bottle sticker wrap for shampoo, detergent, butter. High-quality, auto adhesive.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Applicable Label Length
20mm ~ 285mm
Applicable Label Width (Bottom Paper Wid
20mm ~ 160mm
Voltage
220V
Frequency
50Hz
Air Pressure
0.6 ~ 0.8MPa
Power : Traction Servo
980W
Power : Traction Step
570W
Conveying Speed
5 ~ 18m/Min
Labeling Speed
Step: 25 ~ 55PCS/Min Servo: 30 ~ 65PCS/Min
Marking Speed
Servo: 5 ~ 25m/Min Step: 5 ~ 19m/Min
Labeling Accuracy
1mm
Transport Package
Wooden Box
Specification
195*120*153
Trademark
ALWELL
Origin
China Shanghai
HS Code
8422303090
Production Capacity
1 Piece/ Weeks

Product Description

Product Description

The round bottle positioning self-adhesive labeling machine is designed to achieve rational production goals. The labeling process is automated, with simple operation, fast production speed, uniform labeling position, beautiful and neat; suitable for round container labeling in the pharmaceutical, chemical, and food industries, and can be used for full-circle labeling and half-circle labeling. Optional ribbon printer and inkjet printer, labeling and printing production batch number, production date and other information at the same time. Realize the integration of labeling and coding, reduce packaging procedures, and improve production efficiency.

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine

Advantage:

1.Machine design beautiful, Using PLC automation control, simple operation, high precision label, fast production speed.
2. Servo motor control labeling,match with LEUZE Photoelectric,the accuracy is high.
3. Machine structure design is simple, easy to adjust.


Technical Parameters:
Power supply AC220V ;50HZ (or according to client voltage requirement )
Power  2.5kw
Label length 6-300mm,label width:20-150mm
Bottle size flat or square lenght ≥40mm,20≤width≤160mm,20≤height≤ 300mm
round bottle:20≤diameter≤150mm,20≤height≤300mm
Label speed 20-120pcs/min
Label inner diameter 76mm,Label outer diameter:350mm label precision:±1mm
Dimensions  1800L * 800W * 1600H mm
Machine weight  400kg

Detailed Photos

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
Roll stock label
Label: sticker label, adhesive film, electronic supervision code, bar code and so on.
Industry : Widely used in food , medicine , cosmetics , daily , electronic , hardware , plastic and other industries
Application examples: PET circular bottle labeling, plastic bottle labeling, food canned and so on
Darts mechanism: motor control is synchronized with the conveyor belt, and labels are output.

Photoelectric detection: Control the bottle to correspond to the label, and the label will not be repeated if there is no bottle.
Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
Stability
Full stainless steel 304 frame,and very think aluminum block part,with unique supporting design,makes machine stable and durable.
Bottle Dispersing
The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function , can be produced in a single machine , and also can be connected with the production line . The adjustment is simple , the labeling speed , the conveying speed and the bottle separating speed can realize stepless speed regulation , and the adjustment is carried out according to the requirement.
Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
Compatibility
Has strong compatibility , and the same equipment can realize single side and double sided and adjacent right - angle surface labeling of various types of products ( such as flat bottle , round bottle , square bottle , special - shaped bottle , etc . )
Type:Round and square bottle,jar,can,tin. Material:Plastic,glass,metal. Label:preprinted label or transparent label

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine Other Corollary Equipment Introduction:
1. Different labeling solutions for flat surface, round labeling, taper wraping labeling can be supplied. One product can accomplish one sticker, two stickers or more stickers labeling, also can one sticker to finish one side, two sides, three sides or more sides labeling.

2. We can supply you the optional rotary table bottle unscrambler machine, which can be connected directly before the labeling machine, the operators can put the bottles on the rotary table, then the rotary table will send the bottles to the labeling machine to the labeling machine automatically.

3. It also can match with weight checker, metal detector,  bottle filling machine, capping machine, can seaming machine, cover impressing machine, inkjet /laser / TTO printer etc.
Certifications

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine

Packaging & Shipping

The machine will be fixed and then packed in wooden cases.Fast Delivery!

The earliest delivery is 5 days after payment.
Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
Company Profile

Shanghai ALWELL have more than 2000 Square meters factory.

We have 10 years experience in the industry. Factory direct sale,we can prove very competitive price and durable quality guarantee Our main products are check weigher, metal detector, weight sorting machine, liquid filling machine, powder filling machine,Syringe filling machine,capping machine,labeling machine, and supporting production lines.

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine

Our Advantages

Our Services & Strength

We have a large stock.
We can fast delivery within days at the earliest. We support OEM.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3..We provide one year warranty

4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

5 .12 Months guarantee and life-long technical support.

6.Your business relationship with us will be confidential to any third party.

7. Good after-sale service offered, please get back to us if you got any questions.Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
FAQ
1.Are you manufacturer or trader? Where are your factory located?
We are manufacturer and we are located in Shanghai,China.

2.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos.

3.How long is your warranty?
12 months free warranty, life-long maintenance.

4.Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.

5.What are your company requests of payment terms?
TT,L/C,International Credit Card.

6. What is the validity time of the quotation?
15 days since quotation date

7. What is the delivery time?
Within 15 days after receipt of your deposit.

8. Are you a manufacturer?
Yes, we are a manufacturer, and we can provide the competitive price and good quality.

Automatic Square Round Flat Butter Detergent Bottle Sticker Auto Adhesive Wrap Bottle Shampoo Labeling Machine
