Basic Info.
Product Description
BT-200 Cosmetics Perfume Playing Card Soap Automatic 3D Cellophane Overwrapping Machine
Features:
The machine is designed on the basis of absorbing and digesting foreign advanced equipment, using imported digital display transducer and elec components, stable and reliable in operation, a firm steal, smooth an beautiful. It can do automatic packing, feeding, folding, heat-sealing, counting and automatically sticky tear tape. Packing speed can be adjusted steplessly. Changing few parts can wrap different specification (dimension, height, width) of box products.
Three Prevention: anti-forging anti-damping anti-dusting
Improve product additional calue, improve product grade, improve decorative quality.
Main technical data:
| Model | BT-200 | BT-260 | BT-350 |
| wrapping speed | 30-60 cases/minute | 20-60 packs/min | 15-40 Packs/min |
| Size wrapping range | L+H+(5-10mm)≤200mm | L+H+(5-10mm)≤250mm | L+H+(5-10mm)≤350mm |

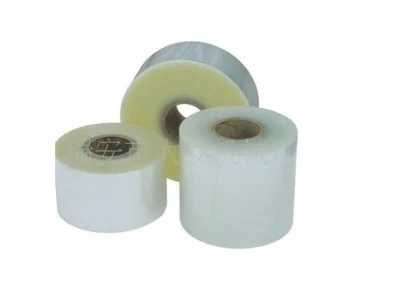

| Wrapping material | OPP/BOPP | OPP/BOPP | OPP/BOPP |
| Machine dimension | 2600x790x1550mm | 1930x800x1700mm | 2300x1000x1650mm |
| Weight | 600KG | 700KG | 950KG |
| Total power | 4.5KW | 5KW | 5KW |
| Voltage | 220V/380V(50Hz) single phase or three phases | 220V/380V(50Hz) single phase or three phases | 220V/380V(50Hz) single phase or three phases |

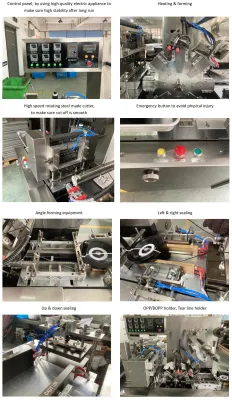

Machine details:
Samples:
Working procedure:
Factory tour:
Since 1996 years, 25 years experience in packing field,
About 20000 squre meter for 2 buidling,
The giving below is the phtos of 1st floor - 4th floor
