Product Description
Bag Bundling Packaging Machine (bale)
This unit is designed to fully automate the packaging process of neatly loading small pre-packaged products (150-1000g) into composite film plastic bags, and heat sealing them according to the required arrangement, such as single or double-row horizontal grouping. This fully automatic operation significantly reduces the need for manual labor, materials, and financial resources, leading to reduced production costs and increased production efficiency.
Automatic secondary packaging machine
HUIDA AUTOMATIC SECONDARY PACKAGING MACHINE
At Huida Packing, we are not just manufacturers of equipment, but are also responsible for the entire operation from the start to the finish. We believe in providing complete turnkey automated secondary packaging solutions that will meet your secondary packaging requirements effectively.
Introduction :
Secondary packaging solutions are the repacking of already packed products. This ensures that products are packed properly and therefore goods do not get spoiled or damaged. Packaging products well help in maintaining quality and standard as well as keeping count of the number of pouches and boxes.
Purpose:
To pack pouches of grains and powders into pre-formed bags
To replace high cost cartooning and baling
To overcomes manual and disorderly packaging
Space reduction as compared to manual packaging.
Packaging becomes efficient and hence the productivity increases.
System can be aligned for further warehousing automations making the overall packaging and logistics not dependant on workforce.
Every bag produced is check for correctness in the pouch count with the help of secondary bag weighment.
Way of inner bag arrange:
Feature:
Online Dynamic Check Weigher for pouches with auto rejector.
Metal detection of pouches with auto rejector.
Fully automatic with Bag placer & Auto-stich feeder.
Automatic Pouch Counter.
Metal Detector & Weighing for bag available.
Single machine can handle multiple product varients.
Centralized Data Logging System.
TECHNICAL SPECIFICATIONS
Machine Model | GFP1D5 | GFP1D5-2 |
Pouch Weight | 0.2Kg - 10Kgs | |
Secondary Bag | 10-50Kg | |
Machine Speed | Infeed - 40-110 Pouches/min | Infeed - 80-220 Pouches/min |
Types of bags | Preformed Open Mouth, Pillow/Gusset Bags | |
Material of bags | PE/HDPE/Pape/Woven bag | |
Bag feeding system | Magazine Feeder | |
Type of sealing | Thread Stitching / Heat Sealing | |
Pouch weight check | Optional | |
Bag Weight Check | Optional | |
Metal Detection | Optional | |
Secondary Packaging Machine Applications
The Huida's secondary packaging machine is often used for the packaging of powdery and granular materials such as washing powder, salt, rice, sugar, seeds, peanut, grain, nuts, fertilizer, snacks, corn, pet feed, and milk powder. It is a fully automatic machine for major companies to achieve secondary bagging. It is widely used in food, medicine, condiments, chemical, and other industries.
Model | Type of big bag | Film width range | Packaging speed bags/min | Form of arrangement |
VFS1100 | Pillow bag,gusset bag(Formed by roll film) | 1100mm | 4~8 for big bags 50~110 for small bags | Horizontal single or double-row grouping |
VFS1500 | Pillow bag,gusset bag(Formed by roll film) | 1500mm | 2~5 for big bags 50~110 for small bags | Horizontal single , double-row grouping,three-row grouping |

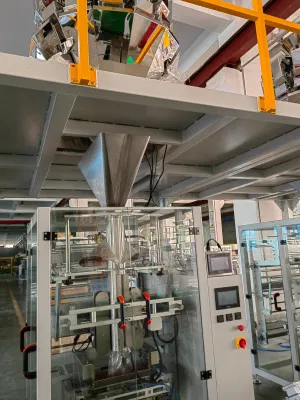

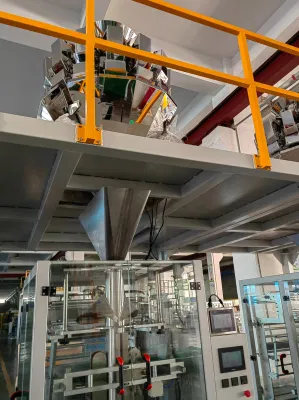

This unit is designed to fully automate the packaging process of neatly loading small pre-packaged products (150-1000g) into composite film plastic bags, and heat sealing them according to the required arrangement, such as single or double-row horizontal grouping. This fully automatic operation significantly reduces the need for manual labor, materials, and financial resources, leading to reduced production costs and increased production efficiency. The unit is widely used for packaging powdery and granular materials, including washing powder, salt, seeds, milk powder, and more. It is an ideal secondary packaging machine for many large companies. The equipment includes a double-layer inclined conveyor, high-speed conveyor, counting and unscrambling machine, vertical bag-making, filling and packaging machine, and product conveyor, among others.
Automatic Bundling machine is used for secondary packaging of the primary bags. It uses the same Vertical Form Fill Seal principal and makes large bags of LDPE films(Laminated films).
Production process:

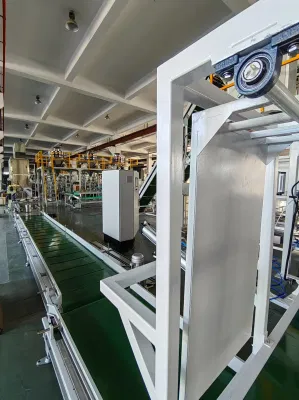

Inner pouches → horizontal conveyor → double-layer inclined conveyor → high-speed conveyor → counting and unscrambling machine → vertical bag-making packaging machine → Sealing → product output.
Advantages:
1.This machine is equipped with a touch screen control system, which ensures ease of operation, efficient specification changeover and maintenance, and provides high levels of safety and reliability..
2.The bundling machine offers various forms of arrangement to meet the specific needs of customers. It can be customized to perform single or double-row horizontal grouping or other forms of arrangement to achieve the desired packaging effect. This flexibility in arrangement allows for a wide range of packaging options and enhances the versatility of the machine.
