Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business

Find high-quality Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business at our factory. Perfect for small-scale food packing needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • Packaging & Shipping
  • Contact Us
  • FAQ
Overview

Basic Info.

Model NO.
pm0220
Application
Food, Chocolate Packing Plant
Type
Multi-Function Packaging Machine
Forming Species
Special Shape
Forming Function
Wrapping, Sealing, Chocolate Packing Plant
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
Film, Foil
Voltage
380V
Packing Speed
300~400grains/Min(Double)
Packing Material
0.01-0.012mm Aluminum Foil
Bleed Pressure
0.6MPa
Specification
2700X1320X1420mm
Trademark
Customized
Origin
China

Packaging & Delivery

Package Size
275.00cm * 137.00cm * 147.00cm
Package Gross Weight
1600.000kg

Product Description

Details Images

Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business
Product Paramenters
Product Name
packaging machine
Packing Speed
300-400 Grains/Min
Product Size
(10~80) x (4~45) x (4~35) mm (length X width x height)
Packing Material
0.01-0.012mm aluminum foil
Power and Voltage
10.2Kw/380V/3P
Dimensions of Packing Machine
2700X1320X1420mm (length X width X height)
Dimensions of Feeding Machine
3500X980X800mm (length X width X height)
Net Weight of Packing Machine
1600kg
Net Weight of Feeding Machine
700kg
Bleed Pressure
0.6MPa
Products Description

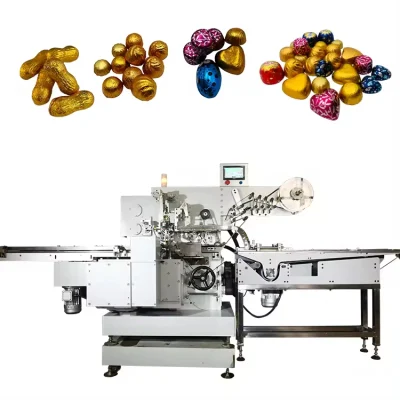

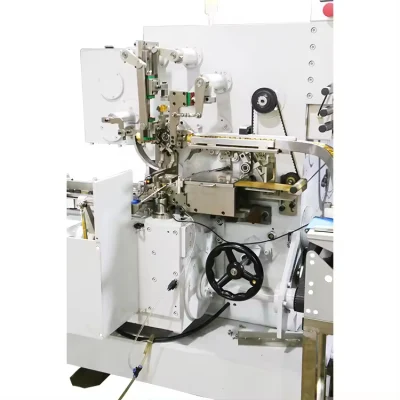

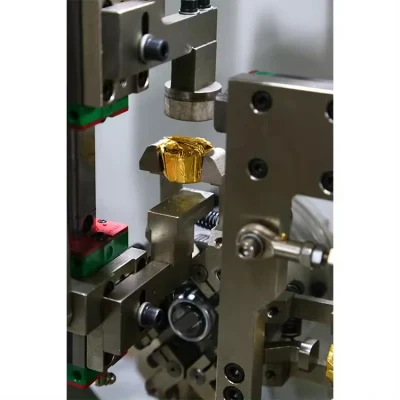

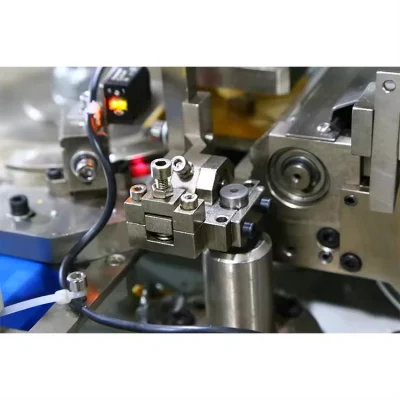

Function and Characteristics 1.The machine is designed for allocating, feeding and packing hemispheric, heart-shaped, polygonous,and flat-bottom chocolates/candies/tea automatically. It can pack various types of products and also ensure the aluminum foil closely attached to the surface of product/the packing fits tightly. 2.Accurate high-speed CAM mechanism and rational machinery design increase the precision, stability and productivity of the machine. 3. Equipped with Panasonic Servo System, PLC (Programmable Logic Controller), multi-station sensor control system, the machine can supply double layer paper, correct paper lengths, stop paper delivery with no sugar, position colorful trademarks and thus improve yields. 4.The Panasonic touch screen, display both in Chinese and English, achieves human computer interaction and provides easy way to operate such as setting the parameters. 5. Equipped with high-speed automatic feeding transmission line, the machine can directly butt to casting machine and feeding machine, achieving fully automatic. 6. Coding machine, an optional configurator, helps labelling machine to achieve coding and labeling automatically. 7.Automatic alarm for abnormality is designed for convenient use and easy maintenance.


Company Profile

Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small BusinessAutomatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business

Packaging & Shipping

Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small BusinessAutomatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business

Contact Us

Automatic Multifunction Sugar Chocolate etc Food Packaging Machinery for Small Business

FAQ

Q1. What's your transportation way?
A1. LCL and FCL by sea, by express (DHL, TNT, UPS) and by air.

Q2. How about your packing?
A2. Professional export package,wooden case

Q3. What are your payment terms?
A3. T/T in advance

Q4. What is the lead time ?
A4. Generally if we have stock, we will deliver the machine in one week. If it need custom made, the lead time will be around 20-50 days which depends on the real situation.

Q5. How does your factory control the quality?
A5. Quality is very important, we take much attention to control our quality from raw materials to the end. We will test every machine before it leaves our factory to make sure it's working good. Our factory has passed ISO. We also have audit periodically to make sure our products qualified.

Q6. How long is the guarantee?
A6. Our machine guarantee is for one year for no human damage factor.

Q7. How should we do if we meet troubles while production?
A7. About our after sale service, if any problems or operation questions, we will show you how to solve it or offer the
