Basic Info.
Model NO.
Vertical Form Fill Seal Machine
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Mechanical
Material Type
Grain,Solid,Powder,Liquid,Paste and So on.
Packaging
Bag
Packaging Material
Film
Type of Bag
Pillow Bag, Gusset Bag and Die Cut Bag
Metering Range
100g-50kg
Measuring Accuracy
0.2%-0.5%
Packaging Speed
30-70bags/Min
Transport Package
Wooden Box
Specification
snacks packing
Trademark
HUIDA
Origin
China
HS Code
8422303090
Production Capacity
3000sets/Year
Product Description
VFS320/5000D/5000B/7300B/9000/1100/1500/1700 VFS320/5000D/5000B/7300B/9000/1100 /1500/1700
vertical form fill and seal packaging machine
Equipped with sensor check the colour mark for bag length
Film pulling centralized system
Film easy and connect Unit easy to change roll of film
Film Pulling - Servo Driven
Horizontal Sealing - Servo Driven(Vertical Sealing - Pneumatic)
Motor driving film roll unwinding system
Sealing temperate, film roll, print ribbon, film used up, door locking all have sensor checking and alarm shows on screen
Have film antistatic function
Diamond plate forming collar
HMI touch screen display
Dust extraction outlet in the forming pipe
Pneumatic air shaft
Air removal device (Pin hole system)
Film pulling centralized system
Film easy and connect Unit easy to change roll of film
Film Pulling - Servo Driven
Horizontal Sealing - Servo Driven(Vertical Sealing - Pneumatic)
Motor driving film roll unwinding system
Sealing temperate, film roll, print ribbon, film used up, door locking all have sensor checking and alarm shows on screen
Have film antistatic function
Diamond plate forming collar
HMI touch screen display
Dust extraction outlet in the forming pipe
Pneumatic air shaft
Air removal device (Pin hole system)

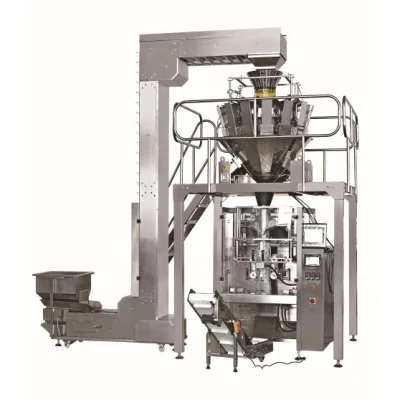

VFS 5000/7300A5 VFS 5000/7300 A5 Automatic stabilo & quad bag making packaging machine with multihead scale
Suitable for the quantitative packaging of a variety of irregular materials, such as snack foods potato chips, rice crackers, candies), nuts (walnuts, pistachios, hazelnuts, etc., frozen foods (dumplings, shrimp, frozen vegetables), and various other materials with irregular shapes such as granules, chunks, balls.

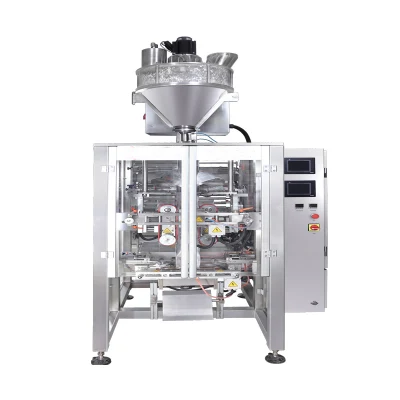

Powder packaging unit - pillow bag & gusset bag with hole punching
This unit is a combination of a CJSL2000 auger weighing machine and a 5000D/5000B/7300B/1100 vertical filling packaging machine, designed specifically for measuring and packaging ultrafine powders that tend to generate heavy dust during the process. It offers a range of functions including metering,bag-making, packaging, sealing, printing, and counting. Additionally, the machine comes equipped with advanced level switches and can be fitted with anti-static and dust extraction devices for optimal performance. This unit provides an effective solution for fully automatic packaging of powdery materials, such as rice flour, milk powder, building materials, coffee powder, seasoning powder, and toner.

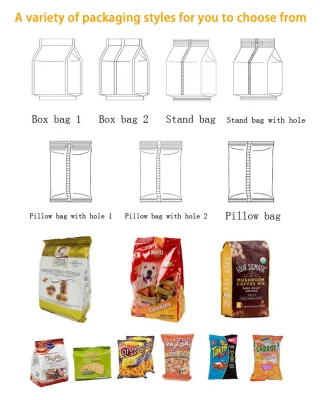

Type of bag: pillow bag, gusset bag and die cut bag
Type of bag: pillow bag, gusset bag and die cut bag

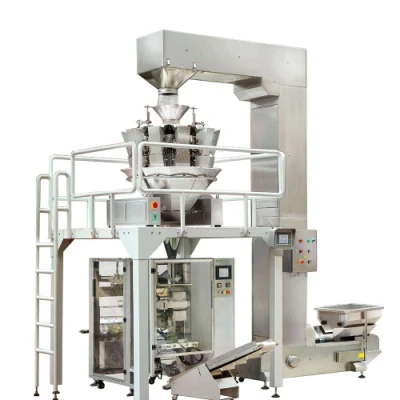

VFS5000D/5000B/7300B/1100 Granule Packaging Unit
This integrated unit comprises a vertical filling packaging machine, servo-driven scale (or CJS2000-F weighing machine), and a bucket elevator, which together perform muliple functions including weighing, bag-making, edge-folding, filling, sealing, printing, punching, and counting.
The machine uses servo motor-driven timing belts for both film pulling and horizontal sealing, and all control components are sourced from reputable international brands with a proven track record of reliable performance. Additionally, the machine's advanced design makes it easy to adjust, operate, and maintain, offering great convenience to users. Suit for granular packing such as rice, beans, salt, white sugar, and other similar materials with a wide weight range.
Type of bag: pillow bag, gusset bag and die cut bag
The machine uses servo motor-driven timing belts for both film pulling and horizontal sealing, and all control components are sourced from reputable international brands with a proven track record of reliable performance. Additionally, the machine's advanced design makes it easy to adjust, operate, and maintain, offering great convenience to users. Suit for granular packing such as rice, beans, salt, white sugar, and other similar materials with a wide weight range.
Type of bag: pillow bag, gusset bag and die cut bag
VFS5000D volumetric cup packing machine
This unit of machine comprises of a volumetric cup filling system and a VFS5000 vertical filling packaging machine.It is designed to pack small particle size materials with uniform specific gravity that weigh less than 1kg, including rice,beans,salt, white sugar, and other similar materials. The machine integrates automatic metering, bag-making, packaging, sealing, printing, and counting functions, all controlled through an advanced touch screen interface. For slat packing, the material contact parts will all made by 316L stainless steel.
VFS7300GY cream/thick sauce packaging unit
This machine is specifically designed for metering and filling high viscosity cream and paste materials. It adopts a servo rotor metering pump for accurate material metering and can be equipped with a insulation storage hopper and transfer pipes to ensure the material remains heated and easy to flow.
In addition to automatic metering and filling, this machine also has the capability of automatic bag-making and packaging. It has a memory function that can store up to 100 product specifications and can easily switch between each type of parameter setting with the press of a single button.
This machine is perfect for packing paste materials such as red bean paste, ketchup, mayonnaise, peanut butter and so on.
In addition to automatic metering and filling, this machine also has the capability of automatic bag-making and packaging. It has a memory function that can store up to 100 product specifications and can easily switch between each type of parameter setting with the press of a single button.
This machine is perfect for packing paste materials such as red bean paste, ketchup, mayonnaise, peanut butter and so on.
| Model | Bag Size(mm) | Metering Range | Measuring Accuracy | Packaging Speed(bags/min) |
| VFS5000D | (80-300)x(B0-200) | 100-1000g | 0.2%-0.5% | 30-70 |
| VFS5000B | (100-350)x(100-250) | 200g2000g | 20-60 | |
| VFS7300B | (100-460)x(100-350) | 1000g-5000g | 10-50 | |
| VFS1100 | (300-650)x1300-550) | 5-10kg | 5-15 | |
| VFS1500 | (300-1000)x (350-750) | 10-25kg | 3-8 | |
| VFS1700 | (200~1000)x(500-850) | 10-50kg | 2-5 |
| Model | Extemal Dimersions (LxWxH)mm | Type of Bag | Range of Bag Width (LxW)mm | Packaging Speed bags/min | ID of Reel | Max. Allowable OD of Reel | Compressed Air Requirement | Power Supply |
| VFS5000A5 | 2455X1230X1660 | Quad bag, bag with hole punching | Front face width: 50-190 Side face width: 50-90 Width of corner seal: 5-8 Bag length range: 100-350 Max. width of packaging material: 520 | 15-55 | Φ75mm | Φ450mm | 0.6MPa 350 L/min | 380V 50-60Hz 3kW |
| VFS7300A5 | 2550X1420X1930 | Front face width: 60-260 Side face width: 60-120 Width of side seal: 5-10 Bag length range: 100-460 Max. width of packaging material: 730 | 2-45 | Φ75mm | Φ450mm | 0.6MPa 0.36L/min | 380V 50-60Hz 3kW |
| Model | Bag Size(mm) | Metering Range(g) | Measuring accuracy | Packaging Speed(bags/min) |
| VFS5000DS | (80~300)x(80200) | 100~1000g (cup volume will make according to materlaldensity) | 1% | 50-70 |
| Model | Bag Size(mm) | Matering Range | Measuring Accurecy | Packaging Speed(bags/min) |
| VFS7300GY | (100-480)x[100-350) | 100-5000g | ≤ 0.5% | 8-25 |
| VFS1100GY | ((300-6501x[300-550) | 5-25kg | ≤ 0.5% | 3-8 |
