Basic Info.
Model NO.
hc-180sz
Application
Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Fish, Meat, Seasoning
Type
Forming Filling Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling, Seal
Driven Type
Mechanical
Material Type
Liquid
Packaging
Bag
Packaging Material
Film
Shipping Package
Plywood Case
Voltage
220 V
Keywords
Automatic Filling Sealing Packing Machine
Certificate
CE & ISO & SGS
Material
SUS304
Packing Material
Sauce/Liquid/Powder/Oil
Power
9 Kw
Transport Package
Wooden Case
Specification
6900*1210*1500
Trademark
Grepack
Origin
Shanghai, China
Production Capacity
5 Set Per Month
Product Description
Automatic horizontal Fruit/Vegetable/Drip Coffee Food Powder Granule Sachet Filling Packaging Packing Sealing film Wrapping Machine for doypack Bag
Introduction
fully automatic powder sauce surger peanut butter cream jar zipper pouch sealing bag doypack filling sealing packing machine for packaging equipmet can be used to pack liquid product such as milk, juice, ketchup, paste, shampoo, detergent etc. up to 1000mlFinishing bag forming, filling, easy tear notch making, print date, finished bag discharged. Reclosable zipper, spout , nitrogen flushing, unique bag shape ,hole and Round corner punching are optional.
Characteristics
1) PLC control, English and man-machine interface, easy to operate and simple maintain.2) Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) versatile machine could make doypack bag spout(top or slant spout), unique bag shape could be designed according to requirement.
4) independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .
6) smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment.
![]() | combination weigher It is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt pet food, frozen foods, etc. It is also suitable for weighing small hardware and plastic component |
Z type bucket chain elevator Available for lifting of frangible and non-frangible material such as fried chips, prawn cracker, crispy rice, metals and medicines, etc. | ![]() |
![]() | Support Platform Adopting support ten head weigher, easy to operation and watch the weigher runing . |
Finish Product Conveyor Adopting imported miniature motor and featured with low noise and long tifetime. It can transport finished goods to platform, reduce waste during packing, making the machine work more smoothly. | ![]() |
Technical Specifications
Modle | HC-180SZ | HC-240SZ | HC-330SZ |
Pouch Size | 90*110mm(Min) 180*260mm(Max) | 100*120mm(Min) 240*320mm(Max) | 150*200mm(Min) 330*450mm(Max) |
measuring method | liquid filler /auger filler /weigher | liquid filler /auger filler /weigher | liquid filler /auger filler /weigher |
Filling capacity | 1200ml | 2000ml | 4000ml |
Packing capacity | 40-50ppm | 30-50ppm | 30-40ppm |
Powder | 8KW | 10kw | 12KW |
Air consumption | 200NL/min | 300NL/min | 400NL/min |
Machine Dimensions | 6450mm(L) 1100mm(W) 1400mm(H) | 7500mm(L) 1250mm(W) 1550mm(H) | 7800mm(L) 1100mm(W) 1400mm(H) |
Weight | 2300kg | 2800kg | 3400kg |
Function | Doypack, Shape, Hanging Hole,Zipper | Doypack, Shape, Hanging Hole, Zipper | Doypack, Shape, Hanging Hole zipper |
Application

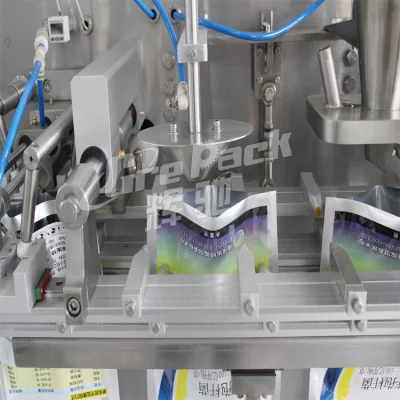

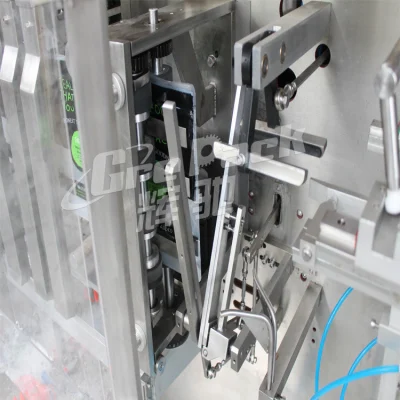

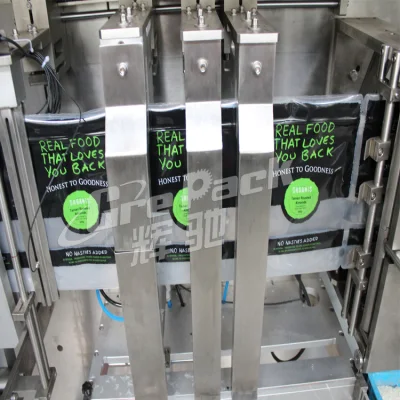

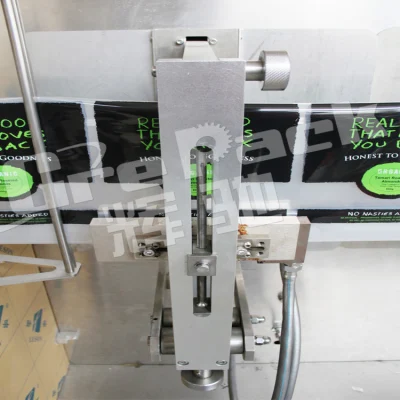

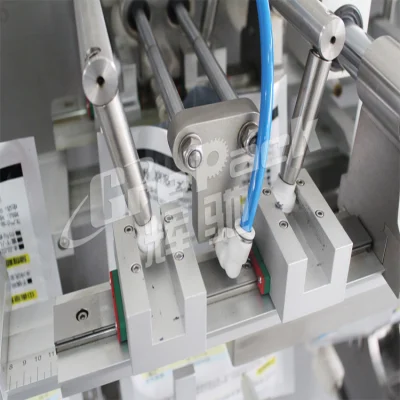

![Automatic Horizontal Fruit/Vegetable/Drip Coffee Food Powder Granule Sachet Filling Packaging Packing Sealing Film Wrapping Machine for Doypack Bag](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00uBqiVQTPVEok/Automatic-Horizontal-Fruit-Vegetable-Drip-Coffee-Food-Powder-Granule-Sachet-Filling-Packaging-Packing-Sealing-Film-Wrapping-Machine-for-Doypack-Bag.webp)
![Automatic Horizontal Fruit/Vegetable/Drip Coffee Food Powder Granule Sachet Filling Packaging Packing Sealing Film Wrapping Machine for Doypack Bag](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00uvcWVgTaIQbq/Automatic-Horizontal-Fruit-Vegetable-Drip-Coffee-Food-Powder-Granule-Sachet-Filling-Packaging-Packing-Sealing-Film-Wrapping-Machine-for-Doypack-Bag.webp)
![Automatic Horizontal Fruit/Vegetable/Drip Coffee Food Powder Granule Sachet Filling Packaging Packing Sealing Film Wrapping Machine for Doypack Bag](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00zvkiWlEsgToc/Automatic-Horizontal-Fruit-Vegetable-Drip-Coffee-Food-Powder-Granule-Sachet-Filling-Packaging-Packing-Sealing-Film-Wrapping-Machine-for-Doypack-Bag.webp)
![Automatic Horizontal Fruit/Vegetable/Drip Coffee Food Powder Granule Sachet Filling Packaging Packing Sealing Film Wrapping Machine for Doypack Bag](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00zebVWMElYTqc/Automatic-Horizontal-Fruit-Vegetable-Drip-Coffee-Food-Powder-Granule-Sachet-Filling-Packaging-Packing-Sealing-Film-Wrapping-Machine-for-Doypack-Bag.webp)
