Basic Info.
Product Description

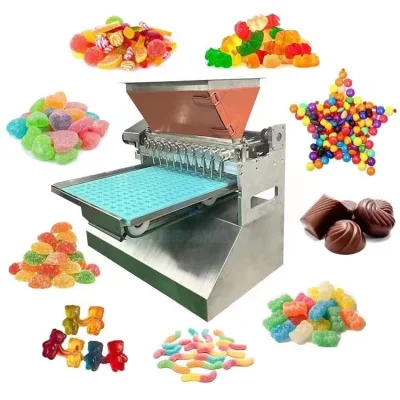

YZ10 Mini Semi Automatic Gummy Candy Depositor
Mini Gummy Candy Line(Complete production process)
The semi automatic candy machine can make soft candy, hard candy,chocolate. The weight range of the candy/chocolate is 1-7g. If you need a larger candy/chocolate, we can customize it. Re-design the candy machine according to customer requirements to meet customer requirements.
The depositing machine is assisted by PLC screen, which is easy to operate and the number and speed of depositing, hopper temperature, etc.
The candy machine is simple to clean after use, and the cleaning steps can be completed by depositing heated water several times.
The machine has almost no wearing parts, and it can be used for 5- 10 years or even longer under the premise of non-human damage.
Technical Parameters
| Name | Cooker | YZ-10 Mini Semi-auto Candy Machine |
| Voltage | 380V | 110-240V 50/60HZ AC |
| Power | 12.75KW | 2.2kw |
| Depsiting Speed | / | 30-40 times/min |
| Capacity | 50L | 10kg/h |
| Material | SUS 304 | SSS 304 |
| Max.Temperature | 210ºC | 130ºC |
| Applicable Depositng Amount | / | 1-7g |
| Weight | 100KG | About 60kg |

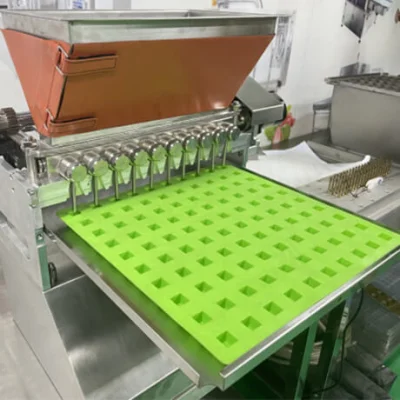

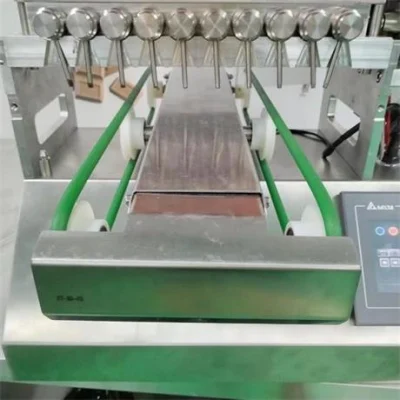

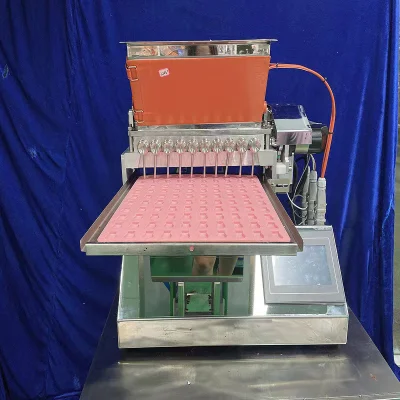

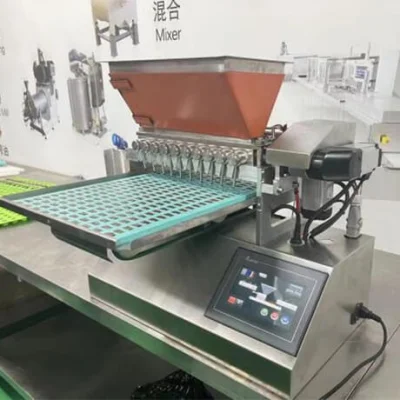

Details Pictures
Characteristic
1.Servo depositing. Can be adjust so that make different candy/chocolate weight.
2.The depositing speed can reach 30-40 times/min. It is easy to operate, clean, and replace. More advantages than other manufacturers.
3. All made of SUS 304 stainless steel.
4.Buy using a tray to hold silicone molds,the depositing process can be more stable and convenient.
5.Easy to clean,using heat water to clean after deposited.
6.Using demoulding device can be more easy to demould.
Types Of Candy (Shapes can be customized)
Product Informations
1.Cooker System
Cooker, by Heating Method:
1. Electric cooking: heating with heat conduction oil, the temperature range is
70-210°C
2. Steam cooking: steam heating, the temperature range is 70-280 ºC
3. Electromagnetic cooking: electromagnetic heating, maximum temperature 300°C
According to the structure form:
1. Tiltable sandwich cooker, the tiltable sandwich cooker can be tilted up to 90°, and the tilting method is manual flipping
2. Vertical (fixed) sandwich cooker
Divided by process: with or without stirring
Q1: What should I chose for mine cookers by steam or electrical heating?
A:Depending on the customer's requirements,whether or not the steam system/quality/cost requirements,steam heating is usually faster.
For example,if the customer has a boiler,it is recommended that the customer use steam heating.
Q2: Does the mixer speed and high shearing speed can be adjust?
A:The high shearing is a fixed value,immutable;
The mixer speed is adjustable,usually a transmission or reducer is added.
Eg:The reducer used in high viscosity.
Q1: How many types of molds can be used on machine?
A:metal mold;silica gel mold;3D mold;
Metal molds are divided into quick release mold and planar mold .
Q2: How does the demoulding system working about this mini machine?
A:Using silicone mold,Manual ejection.
Related Products
FAQ
Q:Are you a factory or trading company ?
A:We are a factory specializing in manufacturing, R&D, and have our own foreign trade rights and production equipment.
Q:Could you please send me your best price?
A:Yes, we cherish every cooperative customer and work hard to facilitate transactions.
And before quoting,please kindly consult us and provide:
1)The type of candies you produce.
2)Your product's size, and your expected capacity for machine.
So that we can recommend the most corresponding machine.
Q:When is your delivery time ?
A:Single machine:30-45 working days.Production line:60-75 working days after 30%-50% deposit received.
Q:When is your payment term ?
A:Payment shall be 30%-50% deposit by T/T,balance 50%-70% paid by T/T,D/P after inspection but before shipment.
Q:Can you make machines based on customer's design ?
A:Yes,we can customized. According to your special request,we can design solution and provide service scheme.
Q:How to handle the installation and test for machine?
A:Our engineers are available to service overseas to install and train local staff.Specific arrangements will be explained clearly in each quotation.
After-sales Service
Technical Support
1. Customised machine;
Spare Parts Service
Maintenance
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (Free). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
Usually shipping by sea, Packed in wooden crates, wooden pallets.
And before we pack, we will apply protective oil on the machine to reduce the contact between the machine and the air.
About Our Company--Yingzoom
Shanghai Yingzoom Industrial Co., Ltd. is a professional manufacturer of candy machine, biscuit machine and other food machine, supplying high-quality candy production line.
We are also a professional labeling machine manufacturer, focusing on the research and development of candy machinery and labeling machines,Sales and formulate professional solutions for special industries.
