Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines

Shop our wide selection of Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines. As a leading factory, we offer top-quality packaging solutions for all your needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Forming Function
Forming, Filling, Seal
Driven Type
Electric
Material Type
Grain
Packaging
Cartons
Packaging Material
Paper
Capacity
30-60 Cartons/Minute
Carton Size
Min: 80*25*80mm
Carton Size1
Max: 220*90*200mm
Paper Quality of Carton
200-400G/M³
Power
3 Phase 220/380V 50/60Hz 3.5kw
Air Supply
0.5-0.7 MPa
Weight
1500kg
Transport Package
Wooden Case
Specification
3800*3650*3450mm
Trademark
kXITE
Origin
China Wenzhou
HS Code
8422303090
Production Capacity
30 Sets / Month

Product Description

Product Description

The operation of a vertical cartoning machine, or vertical cartoner, is quite simple. The cartoner process begins with taking flat, side seamed cartons one by one from a vertical carton magazine feeder. Each carton is placed by a vacuum powered rotary carton feeder into a carton "pocket" mounted to a carousal conveyor. Next, the carton bottom flaps are folded closed and sealed, employing a variety of closure styles. The cartons are then proceed to an area ample enough to hand-load or automatically load product into the cartons from both sides of the machine. After the load area, the top flaps are plowed closed and sealed, and then the finished carton is discharged from the machine.
Bags of cereal, stick packs of yogurt, sticky dried fruits, bottles of vitamins and more can be properly handled to load into cartons. This can be done by hand, with an auger, net weigh scale, combination weigher, volumetric cup filler, or custom robotic automation. We can assess your application to find the best way to carefully and efficiently transfer your product into the cartons.

This machine is a fully automatic vertical type cartoning machine. which speed is the fastest in China now. It is applicable for coffee products, snack, oatmeal, wash powder, chocolate,pet food, penicillin bottle, perfume bottle, etc. It is widely used in the industries of cosmetics. pharmacy. food, and agricultural chemicals. This cartoning machine is able to encase irregular bulk items.

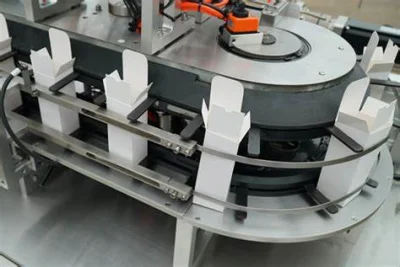

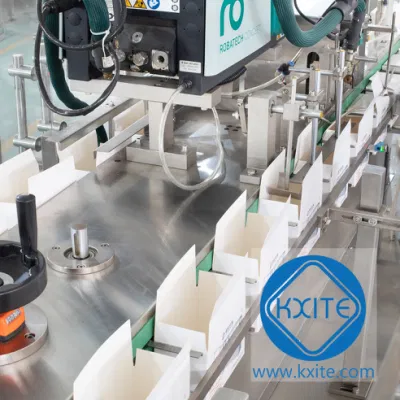

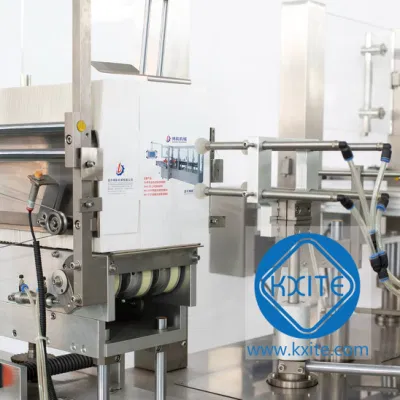

Detailed Photos

Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines

Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines



Product Parameters

CAPACITY 30-60 cartons/minute (accord to clients' box and products)
CARTON SIZE Min: 80×25×80mm
Max: 220×90×200mm
PAPER QUALITY OF CARTON 200-400g/m³
POWER 3 phase  220/380v  50/60hz  3.5kw
AIR SUPPLY 0.5-0.7 Mpa
WEIGHT 1500Kg
DIMENSION 3800×3650×3450mm

Features:

This cartoner performs packaging in a continuous and fully-automatic mode with high speed and advanced technology.
The cover is made of 304 stainless steel with an aluminum alloy tempered glass protective door.
The machine features a man-machine interface to adjust every step conveniently. It has the functions of statistical monitoring and will display any errors while sounding an alarm.
The PLC and electro-optical tracking system are applied to monitor the process of packaging. The machine will alert users of errors like when the equipment runs out of cartons or if there is a paper jam. When such problems occur, an alarm will sound to alert the operator. The number of products cartoned is displayed on this system.
The packaging machine adopts several reliable mechanical and automatic overload protection devices, which enable the machine to protect itself and avoid damage during operation.
When change the items, it is no need to replace the parts, it can be changed directly


Sample:

Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines
Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines

Main performance structure features.
1. Suitable for measuring higher precision bulk products.
2. The control system is modular and adopts 7-inch touch screen, which improves the control accuracy, reliability and intelligence of the whole machine and humanizes the operation.
3. Control weighing sequential discharge function to avoid material blockage.
4. Can adjust the amplitude individually, configured with multinational language operating system.

Packaging & Shipping

Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing Machines

Company Profile

Automatic Coffee Products, Snack, Oatmeal, Wash Powder, Chocolate, Pet Food, Penicillin Bottle, Horizontal and Vertical Cartoning Packaging Packing MachinesWenzhou Kxite Machinery Technology Co., Ltd. was established in 2010.As a manufacturer of packing machines serving the world, we always put quality innovation first, from R&D design, parts procurement, assembly production, quality inspection and evaluation, sales to after-sales and other systems, to truly meet customer needs
Precise sales, think what you think
By inspecting the global packaging machine production status, comprehensively considering the suggestions of printing and packaging industry veterans, according to the actual needs of different customers, we design and produce a variety of configuration models, allowing customers to choose flexibly.
Excellent R&D management
We have an excellent R&D design team and excellent management talents in the packaging industry. We fully understand the actual needs of the packaging industry, ensuring that every piece of equipment we manufacture can be affirmed by customers and create greater benefits.
After-sale guarantee
Provide customers with comprehensive and timely after-sales service and a sense of service in the end.

Blister packing machine Tube Filling Sealing Machine labeling machine cartoning machine
Stationery packing machine ointment Filling Sealing Machine sticker labeling machine Stationery cartoning machine
Pharmaceutical packing machine cream jellies Filling Sealing Machine bound bottle labeling machine Pharmaceutical cartoning machine
Food packing machine toothpaste Filling Sealing Machine shrink sleeve labeling machine Food cartoning machine
Daily necessities packing machine lotion Filling Sealing Machine adhesive labeling machine Daily necessities cartoning machine
Fragile items packing machine cosmetics Filling Sealing Machine hotmelt glue labeling machine Fragile items cartoning machine
Auto parts packing machine medicine Filling Sealing Machine bound bottle labeling machine Auto parts cartoning machine
Tissue paper packing machine Plastic Tube Filling Sealing Machine packing box labeling machine Tissue paper cartoning machine
pen packing machine aluminum tube Filling Sealing Machine paper box labeling machine pen cartoning machine
oral liquid packing machine bearings Blister packing machine cosmetics packing machine oral liquid cartoning machine
toothpaste packing machine napkin cartoning machine cosmetics cartoning machine toothpaste cartoning machine


FAQ

Pre-sales issues
How to answer technical guidance?
For some customers who need non-standard equipment, we will communicate with the company's relevant technical personnel according to the customer's specific requirements, taking into account the technical feasibility and production costs, and give customers solutions.

How to recommend products?
We can also provide non-standard equipment production and new product development services according to customer requirements. According to the customer's picture of the paper bag to be produced, the purpose of the product to be purchased, the environment, the purchase volume and other related conditions, we will recommend several cost-effective products for the customer to choose.

How to make a quotation?
Based on our company's research and development costs, production costs and customer purchases, we conduct calculations to determine the price of the product.

Problems in sale
About payment
After signing the contract, 30% of the total payment will be paid in advance, and the factory will accept the payment and pay the full amount of the machine for delivery.

About delivery time
About 90 working days after receiving the deposit (non-standard machine), the factory will re-decide whether to change the delivery date when the order is confirmed. The standard machine is generally within 60 working days after receiving the deposit.

Order tracking
After the customer places an order, our company will send professional personnel to track the order and regularly report the production progress to the customer. Customers can check the order status on the official website (delivery query).

Product testing
During the production process, our company will adopt strict inspection process to ensure product quality. Through internal inspection, we ensure that the components produced by our company meet the technical requirements; through external inspection, we ensure that the components produced by our company are not subject to quality problems; and then pass the whole machine inspection to ensure that the mechanical equipment meets the technical production requirements .

Product packaging
Before the product is shipped, it will be packed in a strict vacuum plus bottom tray (wooden tray or steel tray)

Product Transportation
Products are generally shipped from Ningbo Port, China to the destination port by sea.

After sales question
Shelf life/warranty period of the product
The product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it through the following ways: a. Send spare parts to the customer. b. Remotely assist customers in maintenance. c. Notify our agent company to send personnel to the customer's factory for maintenance. d. Our company directly dispatches relevant personnel to the customer's factory for maintenance.

About transportation damage
In the process of product transportation, if product damage occurs, it is determined that our product packaging and reinforcement work is not in place, and our company will bear the corresponding losses.

About machine maintenance
We will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.

Problems during use
If there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and make a decision on the response measures within 24 hours.
