Basic Info.
Model NO.
HT25G
Application
Cleaning, Detergent, Cosmetics, Dairy Products, Tea, Fish, Meat, Rice, Flour, Seasoning, Sugar; Seeds; Beans
Type
Filling and Sealing Machine
Forming Species
Bag Closing
Forming Function
Filling, Seal, Sew
Driven Type
Electric
Material Type
Grain
Packaging
Bag
Packaging Material
Open-Mouth Bag
Packing Weight
25kg; 50kg (as Per Requirement)
Bag Shape
Open Mouth Pre-Made Bag
Packing Product
Granular Product(Sugar, Beans, Grain, Seeds, etc.)
Packing Speed
360-540bph
Transport Package
Wooden Case for Export
Specification
11000x4000x5000mm
Trademark
P&Q
Origin
China
HS Code
8422303090
Production Capacity
100 Sets/Year
Product Description
DESCRIPTION

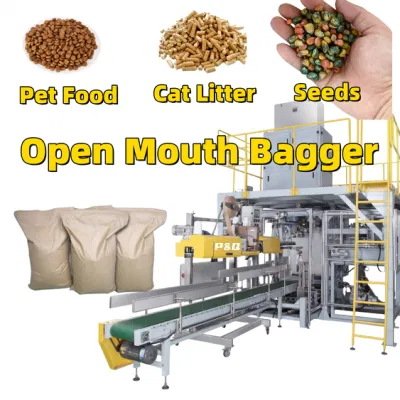

This unit is used for automatic bagging of 25-50kg granules like sugar, rice, seeds, beans, feed, fodder, plastic particles, cat food, dog food etc. It includes one set of weighing machine, one set of bag-feeding machine, one set of platform with ladder and railing, one set of bag closing machine, one set of product conveyor and one set of controlling system. It has functions of automatic weighing, bag feeding, filling, sewing, conveying etc. This unit has been widely used in food, agriculture and chemical industries etc.
TECHNICAL SPECIFICATIONS
Packing Range: 25-50kg
Suitable for: granular product
Packing Speed: 500-750bags/h
Bag Length: 800-1000mm
Bag Width: 500-600
Power: 380V 50Hz 12KW
Air: 0.5-0.7MPa 15Nm³/h
Machine Size: 5600x3500x4700mm
MAIN COMPONENTS LIST
APPLICATION
granular product, such as seeds, feed, sugar etc
DIMENSIONAL DRAWING
Fully Automatic Bagging Machine with Sewing Machine
Fully Automatic Baging Machine with Sealing Machine
BAG SAMPLE
This unit is used for automatic bagging of 25-50kg granules like sugar, rice, seeds, beans, feed, fodder, plastic particles, cat food, dog food etc. It includes one set of weighing machine, one set of bag-feeding machine, one set of platform with ladder and railing, one set of bag closing machine, one set of product conveyor and one set of controlling system. It has functions of automatic weighing, bag feeding, filling, sewing, conveying etc. This unit has been widely used in food, agriculture and chemical industries etc.
TECHNICAL SPECIFICATIONS
Packing Range: 25-50kg
Suitable for: granular product
Packing Speed: 500-750bags/h
Bag Length: 800-1000mm
Bag Width: 500-600
Power: 380V 50Hz 12KW
Air: 0.5-0.7MPa 15Nm³/h
Machine Size: 5600x3500x4700mm
MAIN COMPONENTS LIST
| NO. | ITEM | BRAND | BRAND ORIGIN |

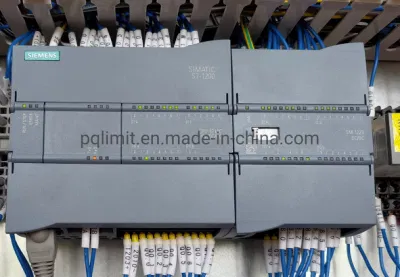

| 1 | PLC | Siemens (1200) | Germany |
| 2 | Touch Screen | Siemens (10") | Germany |
| 3 | Vacuum Pump | ZD | China |
| 4 | Bearing | HRB | China |
| 5 | Servo Motor | Inovance | China |
| 6 | Motor | CPG/WANSHSIN | China |

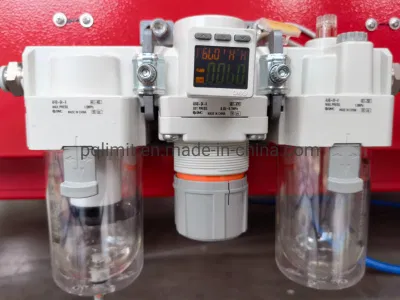

| 7 | Air Unit | SMC | Japan |
| 8 | Magnetic Switch | SMC | Japan |
| 9 | One-way Throttle Valve | SMC | Japan |
| 10 | Solenoid Valve | SMC | Japan |
| 11 | Indicator Light, Button | Schneider | France |
| 12 | Low-voltage Circuit Breaker | Schneider | France |
| 13 | Intermediate Relay | Schneider | France |
| 14 | Air Switch | Schneider | France |
| 15 | Rotary Knob | Schneider | France |
| 16 | VFD | Inovance | China |
| 17 | AC Contactor | Schneider | France |
| 18 | Load Cell | Mettler Toledo | Switzerland |
APPLICATION
granular product, such as seeds, feed, sugar etc
DIMENSIONAL DRAWING
Fully Automatic Bagging Machine with Sewing Machine
Fully Automatic Baging Machine with Sealing Machine
BAG SAMPLE
