Product Description
MW-2310S Series packing machine can carry out three or four sides sealing pouch. Equipped with different feeding device, it can pack liquid, viscosity product in high speed.
Characteristic:
- The machine is equipped with one set of vertical sealing roller, one set of horizontal sealing roller and one set of sealing roller to strengthen. The vertical sealing roller is completed, continuous grain vein with leak-resistant line. The horizontal sealing roller is grain vein with leak-resistant line or plain sealing with leak-resistant line.
- The whole set of machine combines forming -vertical sealing--filling -horizontal sealing -horizontal strengthen sealing--notching-cutting together.
- The feeding device depends the physical state of packing product, which includes Magnetic pump device M for liquid feeling; Hibar pump device H and Rotary pump device R for homogeneous viscosity, Piston pump P for viscosity with granule;
- There are line cutter, zigzag cutter and perferative cutter of option
- PLC control, operation on HMI panel, which shows working status, two servo motors driven pouch length adjustable, and with intelligent eye-mark sensor, which to control the first pouch located automatically, and the interruption information of the abnormal eye-mark print or incorrect design can be excluded and eye-mark system working stable.
- The 3rd sealing roller and cutter are electrical controlled.
- Film tensile device ensures the good-looking of finish pouch and stable pouch length controlled in different diameter of film roller.
- Direct sealing temperature detector ensures the stable sealing roller during high speed running
- Equipped with safety door, which protect operators efficient.
- Take instant noodle sauce pouch as example, pouch dimension as 80x80mm, the regular production speed could be up 130ppm.
Functions:
For liquid, viscous product, such as soy sauce, vinegar, oil, beauty care, shampoo, medicine, etc.
Technical Parameter
Item | Content | remark |
Pouch Length | 45~180mm | Order length +/-40mm adjustable |
Pouch Width | 3-side sealing: 30~95mm 4-side sealing:35~100mm | Replacing a pouch former to change the pouch width |
Packing Speed | 30~150p/m | Depends specification of product and pouch |
Electric Power | 3kw / AC380V 3P | |
Dimension | L1200mm× W1000mm×H1800mm | |
Weight | 400kg or so | |
Packing film | All laminate film Outer diameter of film roll ≤400;Inner diameter of film rollφ75 | |
Feeding device | Liquid: Magnetic pump device (M) homogeneous viscosity: Hibar pump device (H) Rotary pump device (R) Viscosity with granule: Piston pump device (P) | Depends packing products physical characteristic |
Optional device | Heat pressed device, Printer, Hard Air-exclusive Device, Liquid agitating device, Absorb-in device of Piston pump | Additional order |
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00YwPhZdcswnqU/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00pJDhSGkPnFqf/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00RQgbBKvCgaql/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
Kindly reminder
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Bag dimension
2. Bag weight
3. Your product
4. Bag shape
5. Bag material
Our products are suitable for many industries, such as food industry, daily chemical industry, pharmaceutical industry, chemical industry, etc.

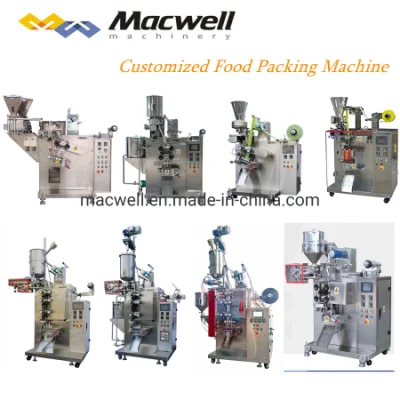

This is our model and the corresponding packaging material form.
Functions:
For liquid, homogeneous viscous product, such as soy sauce, vinegar, oil, sauce, shampoo, etc.
Product Model | Packaging Material |
PW/MW-110 series | Packing for granules, powders, dry vegetables, pills and some unshaped substances |
MW-120 series | Packing for granules, powders, liquids, homogeneous sticks |
PW/MW-129 series | Packing for granules, powders, dry vegetables, pills and some unshaped objects and fluids |
PW/MW-239 series | Individual packaging, double packaging, triple packaging for homogeneous and heterogeneous fluids |
PW/MW-2310 series | High-speed packaging for homogeneous and heterogeneous fluids |
MW-429 series | Long strip packaging for granules, powder and other materials |
MW-D8 series | Bag-feeding packaging for granules, powders, fluids, etc. |
MW-DLSZ series | Multi-column vacuum packaging production line |
MW-D570 series | 5-10 column long strip pillow type back seal |
MW-480/720 series | Vertical bag packaging machine |
You tell us what packaging product you want, feeding method, packaging speed.
we can recommend suitable products for you and customize services.
Wide Application
Our machinery can implement customized packaging for the following physical states , such as fine powder, edible powder, coffee powder,Liquids, sticky bodies, powders, granules, dried vegetables, pills, fluids,and other dry and mobile materials .
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00uJDhjKqdQOcG/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00pQrbBYePVEoi/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
Wide Bag Styles
We can realize three-side sealing, four-side sealing, back-sticking sealing (long strip type), double bag packaging, multi-row packaging, prefabricated bag packaging and other packaging forms. We have 70 related patented technologies in the packaging machinery industry.
1. Nearly 30 years of R & D and manufacturing experience in packaging equipment
2. 30 person packaging professional engineer team
3.Regarded as Top 200 enterprises of Chinese Packing Technique.
4. Team building: tree planting on arbor day, women's Day holiday, annual reunion meeting, regular physical examination of employees
5."Perfect technology, Reliable partner" is Macwell's value and culture.
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00IdHlsDkPfFoU/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00HdDhscoEEObY/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
1. Meet the diversified needs of customers, provide packaging machines and other supporting equipment.
2. We have a strong pre-sales, after-sales service
3. All parts are world-class or Chinese first-class brands.
4. There are many famous customers, such as Nestle, Heinz , P&G, L'OREAL, NIVEA, INDOFOOD, MASAN, VIFON,UNIBEN, AFOTECH, CG…
5. Macwell packing machines were exporting to America, Africa, the Southeast Asia, Russia, India…
1. All standard parts are world or Chinese famous brands with reliable performance.
2. Fast packaging, stable and reliable, simple maintenance and long service life
3. Timely after-sales service, multilingual and multimedia after-sales service
![Vffs Granular/Soy/Sauce/Vinegar/Oil/Coffee/Honey/Powder/Paste/Seasoning/Sugar Packin Sachet Strip Pouch Automatic Sealing Filling Food Packing Packaging Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00PJHhZScswOoU/Vffs-Granular-Soy-Sauce-Vinegar-Oil-Coffee-Honey-Powder-Paste-Seasoning-Sugar-Packin-Sachet-Strip-Pouch-Automatic-Sealing-Filling-Food-Packing-Packaging-Machine.webp)
Question & Answer
Q1. What kind of Macwell company is ?
Macwell Company has a history of nearly 30 years. It is a company integrating R & D, manufacturing and sales.
Q2. What is your manufacturing capacity?
Our factory has nearly 100 employees and 20000 square meters of manufacturing workshop. We manufacture more than 500 packaging machines every year. Users are world-class food processing and packaging enterprises.
Q3. What is the technology and quality level of the packaging machine?
The product prototype of MACWELL packaging machinery comes from Japanese packaging machinery. The machine uses world-class devices, especially electrical control elements. All parts in contact with materials are made of stainless steel. The overall operation of the packaging machine is long. It is the technology leader of China's packaging machinery.
Q4. What is the warranty?
According to international practice, the packaging machinery is guaranteed for one year, including lifelong after-sales service, long-term spare parts and technical support.
Q5. How long will it take to complete the order and deliver the equipment?
Normally, the manufacturing is completed within 30 days, the factory test is completed within 7 days, and the product is delivered to the customer within 40 days.
Q6. Is it a general purpose machine?
No, we are not general machinery. Each of our machines is customized according to the customer's detailed requirements. The machine meets 100% of the customer's needs. Therefore, it can save cost, improve speed and prolong service life for customers.
Q7. What information does the customer need to provide before we can provide a quotation?
Generally, we need to know the packaging information of customers, including the name of packaging materials, the weight of each pouch, the shape (3 / 4 side seal, Pillow type)and size (length and width) of each packaging pouch. We can choose the right machine to quote for our customers.
If customers can provide photos of products, it will be more convenient for us to confirm our technology and provide quotations
