Basic Info.
Model NO.
HSYT-450X2
Speed
High
Continuous-Rolled
Yes
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
4
Machine Type
Bag Forming Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Width of Bags
200-330mm
Length of Bags
330mm(Min)
Max. Diameter of Roll
160mm
Film Thickness
10-35um Per Minute
Bag Making Speed
100-150m/Min X 2lines
Max. Roll Size
160X330mm
Max. Unwinder Film Size
900X330mm
Core Size
25-65mm
Air Compressor
6HP
Main Power
25kw
Machine Weight
4600kg
Transport Package
Wooden Pallet
Specification
L6500X2400X1900mm
Trademark
High Sea
Origin
Made in China
HS Code
84778
Production Capacity
500sets/Year
Product Description

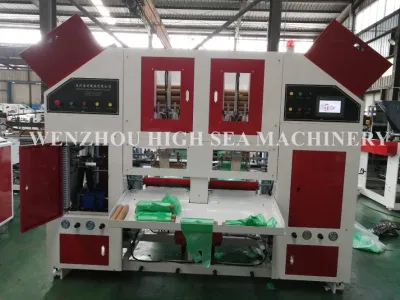

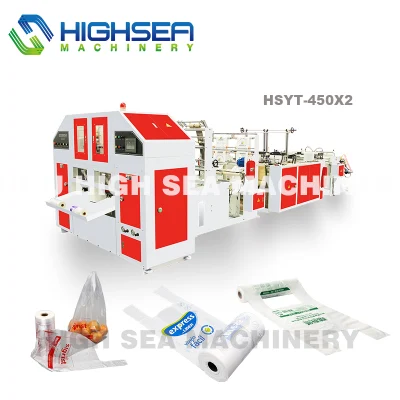

| HSYT-450X2 Two Lines Fully Automatic T-shirt Bag-on-roll Making Machine With Core |
| Application |
| These machines are heat sealing and cold cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE. HSLB-450X2 T-shirt bag making machine is special design for 2 lines high speed T-shirt bag production . 2 independent computers control design and driven by 4.4 kw servo motor , high efficiency, easy and stable operation, low noise, non-stop working. Suitable for producing disposable plastic T-shirt bags. |
| TECHNICAL PARAMETER | |
| Model | HSYT-450X2 |
| Bag Width | 200-380mm |
| Bag Length | 330mm(min) |
| Film thickness | 10-35um per minute |
| Production Speed | 100-150m/min x 2lines |
| Total Power | 25KW |
| Air consumption | 6HP |
| Machine Weight | 4600KG |
| Machine Dimension | L6500*W2400*H1900mm |
| Samples of Plastic Bag |
| SPECIFICS |
| The condition of machine operating |
| A. illumination no exceed 3000LX B. altitude no exceed 1000m C. The temperature of stuff around the machine should be no higher than +40ºC and no lower than -20ºC. D. The relative humidity of air no exceeds 85%. E. The place should no have conductive dust. F. Circumstance of no blast danger and fire. |
| Company Brief Introduction |
| Wenzhou High Sea Machinery CO.,LTD is founded in 1996 (Formerly known as Jinfeng plastic packaging machinery factory). For more than 22 years, we focus on researching, developing, manufacturing and marketing on plastic bag making machine. Our products include : 1.Plastic T-shirt Bag Making Machine 2.Vegetable Bag on Roll Making Machine With Core 3.Garbage Bag Making Machine Coreless 4.Draw Tape Garbage Bag on Roll Making Machine 5.Soft Loop Handle Bag Making Machine There are more than 54 countries and regions cooperating with us, such as south Korea, Turkey, Malaysia, Russia,Iran, Ethiopia, Chile, Saudi Arabia, Peru, Algeria,Vietnam,etc. |
