Basic Info.
Model NO.
MR8-240ZK
Condition
New
Bag Sizes
W: 120~240mm L: 150-320mm
Pouch Types
Pre-Made Pouchs Such as Zipper Bag, Stand up Pouch
Max Filling
2.5kg
Compress Air Requirement
≥0.6m3/Min Supply by User
Transport Package
by Sea or Air. Wooden Case
Specification
2200kg
Trademark
Lin-Pack
Origin
Wenzhou, Zhejiang, China
HS Code
8422400000
Production Capacity
1000 Sets/Year
Product Description
Product Description:
1. The machine can pack different products which need vacuum packing
2. Automatic rotary vacuum packaging consists of filling system and vacuum system. The former is intermittent,
the latter Incessant
3. Quick change-over, the height of automatic bag feeding device can be adjusted automatical
4. Comply with the sanitation requirements of food processing machines. Materials contact parts adopt 304 stainless
steels, or other materials complying with food hygiene requirements to ensure food hygine and safety
5. The machine is easy to wash down
6. The machine adopts premade pouches with a complete pattern a high-quality sealing, resulting in improved product
quality and grades
7. Easy to operate The machine adopts PLC and POD(touch screen) electrical control system, with a friendly man-machine
interface. No Sealing will happen if no filling occurs, causing bags not filled to be recycled, thus no bags wasted
8. Sealing temperature detection. Alarm system will be started, if heating pipe is damaged
Work Process:
Pouch Type:
Main Standard Equipment Part:
Optional Configuration:

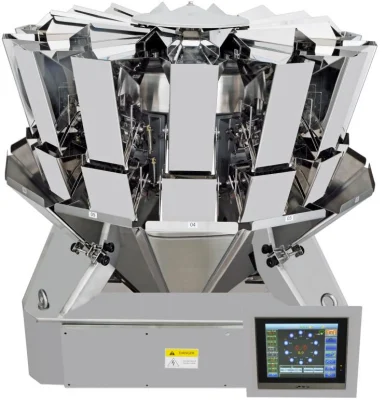

material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor, metal detector
If you have any questions, pls feel free to contact me.

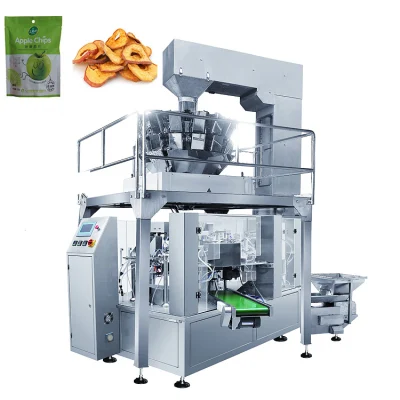

Model | MR8-240ZK |
Working Positions | Eight Positions |
Pouch Type | Four-side Sealed Bags, stand-up pouches, zipper bags, three-side sealed bags, paper bags, etc. |
Capacity | 40-55 bags/min |
Bag Size | Width:120~240mm Length:150-320mm |
Filling Volume | 20-2000g(Depend on type of products) |
Dimension | 2500*1550*1600mm(L*W*H) |
Weight | 2200KGS |
Compress air requirement | ≥0.6m³/min supply by user |
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00CmjTvadKQAku/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
Application:
Puffed food, candy, biscuit, peanut, cookies, pistachio, crystal candy, brown sugar, daily cpmmodities, cooked food and pickles
1. The machine can pack different products which need vacuum packing
2. Automatic rotary vacuum packaging consists of filling system and vacuum system. The former is intermittent,
the latter Incessant
3. Quick change-over, the height of automatic bag feeding device can be adjusted automatical
4. Comply with the sanitation requirements of food processing machines. Materials contact parts adopt 304 stainless
steels, or other materials complying with food hygiene requirements to ensure food hygine and safety
5. The machine is easy to wash down
6. The machine adopts premade pouches with a complete pattern a high-quality sealing, resulting in improved product
quality and grades
7. Easy to operate The machine adopts PLC and POD(touch screen) electrical control system, with a friendly man-machine
interface. No Sealing will happen if no filling occurs, causing bags not filled to be recycled, thus no bags wasted
8. Sealing temperature detection. Alarm system will be started, if heating pipe is damaged

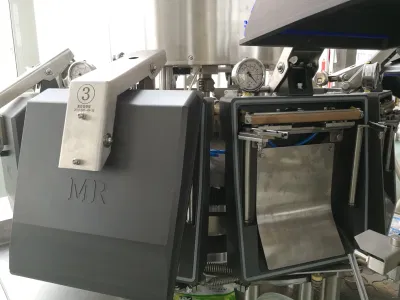

Work Process:
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00eAjQCgJspwbu/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00BwjQeDmtMdog/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
Pouch Type:
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00MASQeiJaSmcg/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)

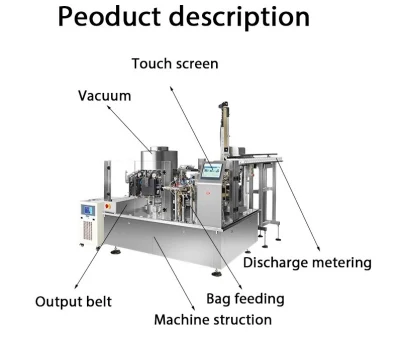

Main Standard Equipment Part:
1. Date printer |
2. PLC control system |
3. Pouch opening devices |
4. Vibrator device |
5. Cylinder |
6. Magnetic valve |
7. Temperature controller |
8. Vacuum pump |
9. Frequency convertor |
10. Output system |
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00MdKQBcmIGAbz/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
Optional Configuration:
material weighing filling machines, work platform, weight checker, material elevator, finished product conveyor, metal detector
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00MwsQevJPpdqu/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00MASEeKdYGwbz/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00eJZavFwBKdqg/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00ZdKQCtmhywqg/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00SJjQMzdKPmop/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
![High Speed Automatic Bean Pulses Pouch Rotary Vacuum Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00SJKQCWmtydoz/High-Speed-Automatic-Bean-Pulses-Pouch-Rotary-Vacuum-Packing-Machine.webp)
If you have any questions, pls feel free to contact me.
