Basic Info.
Model NO.
LUYE
Type
PE Shrink Film Machine
Heating Mode
Stainless Steel Heating
Packaging Material
Film
Processing
Packing
Condition
New
Transport Package
Wooden Package
Specification
By Model
Trademark
LUYE
Origin
Zhangjiagang
HS Code
84222400
Production Capacity
20sets/Month
Product Description
Product Description

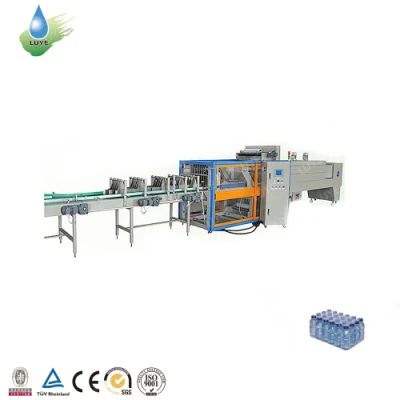

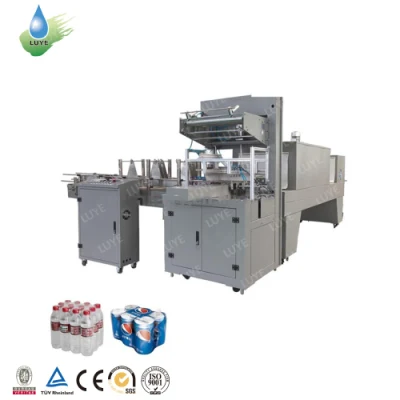

Automatic Plastic Bottle PE Film Thermal Heat Shrink Case Wrapping Packing Machine
Automatic shrink packing machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the Germany advanced technology ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine
-Frequancy control,Secondary bottle transport device.
-The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
-Inductive switch control film length.
-Touch screen,PLC control system advanced reliability of the equipemtn function.
-Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
-Strong cooling system can reassure finalize the design quickly.
-Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
-Frequancy conversion timing net transportation structure.
-The height of the conveyer belt can be made according to the user,adustable range±50mm
-Bottole transport machine can satisfy the direction of the user,it can prolong and shorten
-Pterygoid stainless iron heating system,durability.
-Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
ADVANTAGE
A) PLC and Touch screen full automatic control. Easy for operate
B) Fastly different bottle size replacement
C) Concise structure, reliable and durable, easy to maintain.
FAQ
1.ARE YOU MANUFACTURER OR TRADE COMPANY?
We are manufacturer, located in Zhangjiagang. We are Specialized in beverage machinery 30 years! Our company business is supply all kind of beverage filling machine, package machine, water treatment machine And complete line from A-Z for water, juice, carbonated drink, beer, Aluminum Can drink, all kind of bottle drink filling machine
2.WHAT'S THE ORDER PROCESS?
a. Inquiry-- Provide us all your clear requirements.
b. Quotation-- Official quotation form with all clear specifications.
c. Payment terms-- T/T 30% in advanced, balanced before shipment. We can talk about this when deal.
d. Shipping-- By sea, Detailed picture of package will be provided.
3.CAN YOU GIVE ME YOUR PRICE LIST?
Sorry, we are machine manufacturer, we have more than 100 items, and each machine have different bottle Type, weight, Voltage, Dimension, Capacity, Usage so on request. So please send me your detail request, then I will email you back the price.
4.WILL YOU HAVE SOME DISCOUNT?
a. To clients who bring repeat orders and large orders
b. Please contact us for Better Quote.
5.HOW CAN I INSTALL MY MACHINE WHEN IT ARRIVES?
We will send our engineer to go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
AFTER-SALES SERVICE
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee untill they can operate the machine well.
3.We often ask feed back and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty.
5.Well-trained & experienced staff are to answer all your inquires in English and Chinese
6.24 hours for engineer response ( all services part 5days in customer hand by Intl' courier).
7.12 months guarantee and life-long technical support
8.Your business relationship with us will be confidential to any third party.
9.Good after-sale service offered, please get back to us if you got any questions.
LUYE MACHINERY COMPANY INTRODUCTION
SINCE 1989
LUYE has More than 30 years Professional Manufacturer of Turn-key Beverage Machinery.
1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
Certification
Automatic Plastic Bottle PE Film Thermal Heat Shrink Case Wrapping Packing Machine
![Full Automatic PE Film Fresh Vegetable Tray Wrap Packing Food Over Wrapping Machinery](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00DmvaCgLPHQce/Full-Automatic-PE-Film-Fresh-Vegetable-Tray-Wrap-Packing-Food-Over-Wrapping-Machinery.webp)
Automatic shrink packing machine is suitable for wrapping of such products as pop-top,mineral water ,bottles.beer,drinks etc without bottom tray ,working with PE film shrink tunnel to pack the goods perfectly ,the whole production process adopts the Germany advanced technology ,and the main parts are imported from international famous companies ,Capacity stable and using long-time ,it consists of seven actuating motor ,through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group come out from the hot shrinking packing machine
Specifications for Shrink Wrapping Machine | ||||
Model | LYBS6545 | LYBS20 | LYBS26 | LYBS35 |
Process | Automatic | Automatic | Automatic | Automatic |
Capacity | 8-12 bags/min | 15-22 bags/min | 20-26bags/min | 20-35bags/min |
Material of film | Transparent PE film | Transparent PE film | Transparent or Color PE film | Transparent or Color PE film |
Max shrink temperature | 160-260degree | |||
Bottle diameter | 60-90mm ,height<330mm | |||
Power | 15KW | 18KW | 22KW | 25KW |
Weight | 600kg | 1200kg | 1600kg | 2000kg |
![Full Automatic PE Film Fresh Vegetable Tray Wrap Packing Food Over Wrapping Machinery](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00LAMteVPdfToC/Full-Automatic-PE-Film-Fresh-Vegetable-Tray-Wrap-Packing-Food-Over-Wrapping-Machinery.webp)
Main Function:
-Frequancy control,Secondary bottle transport device.
-The whole set which are push bottle,heat sealing cutting adopt pneumatic structure.
-Inductive switch control film length.
-Touch screen,PLC control system advanced reliability of the equipemtn function.
-Circular wind machine ,resuare well-proportioned temperature of the shrink furnace.
-Strong cooling system can reassure finalize the design quickly.
-Heat-fast Teflon transport net,transport steady,high strength and stand wear and tear.
-Frequancy conversion timing net transportation structure.
-The height of the conveyer belt can be made according to the user,adustable range±50mm
-Bottole transport machine can satisfy the direction of the user,it can prolong and shorten
-Pterygoid stainless iron heating system,durability.
-Satisfy the bear storage rack device of the short duration for the product,assure consecutive work for the production line.
![Full Automatic PE Film Fresh Vegetable Tray Wrap Packing Food Over Wrapping Machinery](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00PdMtebDEHaoC/Full-Automatic-PE-Film-Fresh-Vegetable-Tray-Wrap-Packing-Food-Over-Wrapping-Machinery.webp)
WOULD LIKE TO KNOW MORE ABOUT LUYE MACHINE EQUIPMENTS, FEEL FREE TO SEND US AN INQUIRY!
ADVANTAGE
A) PLC and Touch screen full automatic control. Easy for operate
B) Fastly different bottle size replacement
C) Concise structure, reliable and durable, easy to maintain.
FAQ
1.ARE YOU MANUFACTURER OR TRADE COMPANY?
We are manufacturer, located in Zhangjiagang. We are Specialized in beverage machinery 30 years! Our company business is supply all kind of beverage filling machine, package machine, water treatment machine And complete line from A-Z for water, juice, carbonated drink, beer, Aluminum Can drink, all kind of bottle drink filling machine
2.WHAT'S THE ORDER PROCESS?
a. Inquiry-- Provide us all your clear requirements.
b. Quotation-- Official quotation form with all clear specifications.
c. Payment terms-- T/T 30% in advanced, balanced before shipment. We can talk about this when deal.
d. Shipping-- By sea, Detailed picture of package will be provided.
3.CAN YOU GIVE ME YOUR PRICE LIST?
Sorry, we are machine manufacturer, we have more than 100 items, and each machine have different bottle Type, weight, Voltage, Dimension, Capacity, Usage so on request. So please send me your detail request, then I will email you back the price.
4.WILL YOU HAVE SOME DISCOUNT?
a. To clients who bring repeat orders and large orders
b. Please contact us for Better Quote.
5.HOW CAN I INSTALL MY MACHINE WHEN IT ARRIVES?
We will send our engineer to go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
AFTER-SALES SERVICE
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee untill they can operate the machine well.
3.We often ask feed back and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty.
5.Well-trained & experienced staff are to answer all your inquires in English and Chinese
6.24 hours for engineer response ( all services part 5days in customer hand by Intl' courier).
7.12 months guarantee and life-long technical support
8.Your business relationship with us will be confidential to any third party.
9.Good after-sale service offered, please get back to us if you got any questions.
LUYE MACHINERY COMPANY INTRODUCTION
SINCE 1989
![Full Automatic PE Film Fresh Vegetable Tray Wrap Packing Food Over Wrapping Machinery](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00PJBtCSLsrEbe/Full-Automatic-PE-Film-Fresh-Vegetable-Tray-Wrap-Packing-Food-Over-Wrapping-Machinery.webp)
LUYE has More than 30 years Professional Manufacturer of Turn-key Beverage Machinery.
1.Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
Certification
![Full Automatic PE Film Fresh Vegetable Tray Wrap Packing Food Over Wrapping Machinery](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00LmetvdDWfaqC/Full-Automatic-PE-Film-Fresh-Vegetable-Tray-Wrap-Packing-Food-Over-Wrapping-Machinery.webp)
• Your inquiry related to our product & price will be replied within 24hours
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• OEM & ODM projects are both available
• Your business relationship with us will be confidential to any third party.
• Good after-sale service offered, please get back to us if you got any questions.
Welcome To Visit ZhangJiaGang LUYE Machinery CO.,LTD
