Basic Info.
Model NO.
HFTF-82C/3
Driven Type
Electric, Pneumatic, Mechanical
Application
Plastic Tray, Box, Dish, Lid, Container, etc
Computerized
Computerized
Max Forming Area
750*560mm
Thickness of Sheet
0.2-2.5mm
Transport Package
Sea-Worthy Packing
Specification
CE Certificate
Trademark
HENGFENG
Origin
China
HS Code
8477590000
Production Capacity
50cycles/Min
Product Description
Automatic Multi-Station Thermoforming Machine for Lunch Packing /Egg/tray
Machine Photo:
Application
Thermoforming Machine are mainly produce upscale plastic containers like bowls,square boxes,lids,trays,etc. It is suitable for PP,PS,OPS,PVC,PETand PLA
material.
Feature
Have four stations: Thermoforming-Punching-Cutting-Stacking.
All movements driven by servo motor.
Feeding,forming,cutting and stacking processing are compete production automatically.
Mould with rapid change device,easy maintenance.
Forming with 6bar air pressure and vacuum.
Maximum speed 50 cycles per minutes.
Main Specification:

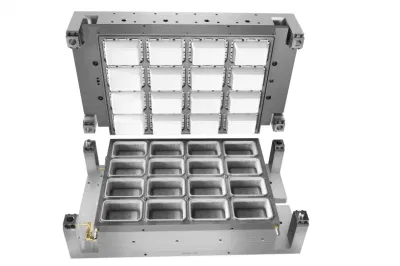

Mould:

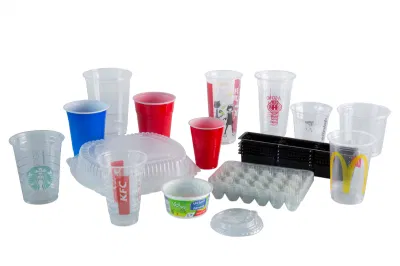

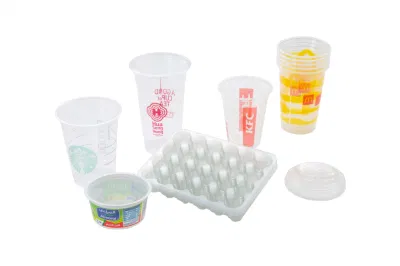

Sample:
Shipping Packaging:
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
Contract Person:
Homepage: http://hf-sheetmachine.en.made-in-china.com
MS VANE
Machine Photo:
![Automatic Multi-Station Thermoforming Machine for Lunch Packing /Egg/Tray Container](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00NToWzInhLvkO/Automatic-Multi-Station-Thermoforming-Machine-for-Lunch-Packing-Egg-Tray-Container.webp)
Application
Thermoforming Machine are mainly produce upscale plastic containers like bowls,square boxes,lids,trays,etc. It is suitable for PP,PS,OPS,PVC,PETand PLA
material.
Feature
Have four stations: Thermoforming-Punching-Cutting-Stacking.
All movements driven by servo motor.
Feeding,forming,cutting and stacking processing are compete production automatically.
Mould with rapid change device,easy maintenance.
Forming with 6bar air pressure and vacuum.
Maximum speed 50 cycles per minutes.
Main Specification:
Model | HFTF-82C/3 |
Max. tool size with pneumatic clamp frame | 780*610mm |
Max. pos/neg depth | 120/120mm |
Max. sheet width | 820mm |
Max. sheet length | 620 mm |
Clamping force | 350 KN |
Sheet Thickness Range | 0.2-2.5mm |
Max. Speed | 50Cycles/min |
Upper/Lower heating | 55/55 KW |
CUTTING PRESS (STEEL RULE CUTTING) | |
Max. cut dimensions | 780*610mm |
Platen clamping force | 750KN |
![Automatic Multi-Station Thermoforming Machine for Lunch Packing /Egg/Tray Container](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00FabVgknSyMoy/Automatic-Multi-Station-Thermoforming-Machine-for-Lunch-Packing-Egg-Tray-Container.webp)
![Automatic Multi-Station Thermoforming Machine for Lunch Packing /Egg/Tray Container](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00yEbVgjnWSeqF/Automatic-Multi-Station-Thermoforming-Machine-for-Lunch-Packing-Egg-Tray-Container.webp)
![Automatic Multi-Station Thermoforming Machine for Lunch Packing /Egg/Tray Container](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00nakWuJyspBcN/Automatic-Multi-Station-Thermoforming-Machine-for-Lunch-Packing-Egg-Tray-Container.webp)
![Automatic Multi-Station Thermoforming Machine for Lunch Packing /Egg/Tray Container](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00dtciuYOqLBkN/Automatic-Multi-Station-Thermoforming-Machine-for-Lunch-Packing-Egg-Tray-Container.webp)

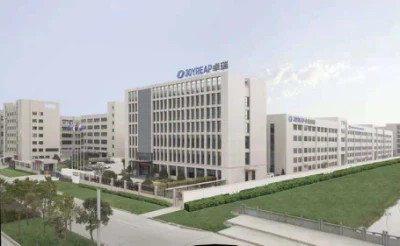

Company History:
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.
Factory Address:
NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.

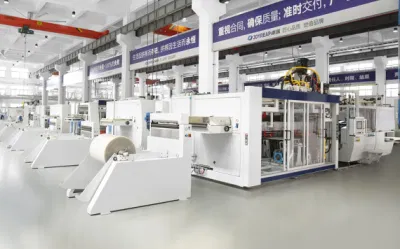

Operation:
