Product Description
They are fast, economical packaging solutions that conserve valuable plant floor space.
Whether you're new to packaging machinery or already have multiple systems, chances are you're curious as to how they work.
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00JcvlOhWMKwbj/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00JcClnehdzmqs/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)

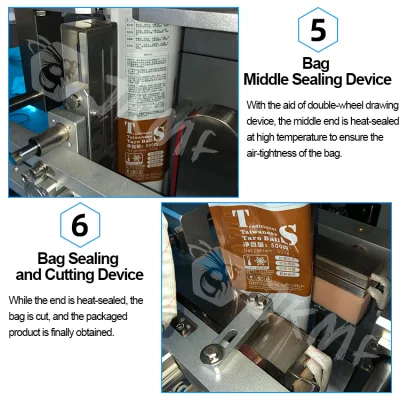

Simplified, vertical packing machines start with a large roll of film, form it into a bag shape, fill the bag with product, and seal it, all in a vertical fashion.
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00mcvVOFWszJoK/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00QoeVFaiEAJkN/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)
Model | DS-420 | DS-520 | DS-620 | DS-720 | DS-1020 |
Film Width | Max.420mm | Max.520mm | Max.620mm | Max.720mm | Max.1020mm |
Bag Length | 80~300mm | 80~350mm | 150~350mm | 100~450mm | 150~500mm |
Bag Width | 60~200mm | 80~250mm | 200~350mm | 100~350mm | 100~500mm |
Filling Range | 150~1500ml | 150~2000ml | 150~3000ml | 150~4000ml | 150~5000ml |
Packing Speed | Max.60bags/min | Max.50bags/min | Max.50bags/min | Max.40bags/min | Max.30bags/min |
Machine Power | 220V,50/60HZ,2.5KW | 220V,50/60HZ,3KW | 220V,50/60HZ,4KW | 220V,50/60HZ,4.5KW | 220V,50/60HZ,5KW |
Machine Size | 1217*1015*1343mm | 1488*1080*1490mm | 1700*1250*1780mm | 1716*1260*1820mm | 1980*1560*2000mm |
Machine Weight | 650KG | 750KG | 800KG | 900KG | 1000KG |
Machine Characteristics
1. The new design, beautiful appearance, the structure is more reasonable, more advanced technology.
2. English and Chinese screen display. PLC control, servo motor, very easy to operate. Do not need to stop machine to adjust any parameters.
3. Fully automatic bag forming, dosing Filling, sealing, coding, conveying, counting can be finished in one operation, most labor-saving equipment.
4. High quality stainless steel, suitable for GMP, good for food packaging with high standard.
5. Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
6. Pocket diversification, can provide customers with pillow bags, angled bags, hanging-hole bags, vertical bags, punched bags, etc.
7. A variety of automatic alarming protective function, maximum limit to reduce wear and tear.
8. Double sever motors, drawing film position accurately, and the speed is faster.
9. Temperature independent control system, precision get to ±1°C.
Dession Machinery is a modern packaging equipment solution provider integrating R&D, production and sales. Since the establishment of the company, with the continuous exploration, research and application of advanced technology. The company has been developing for more than 10 years and has a team composed of professional technicians, engineers, sales and after-sales service personnel. We have developed many series of packaging machinery and related supporting equipment, which are widely used in food, medical supplies, hotel supplies, daily necessities, hardware accessories and other product packaging industries. All equipment has CE, ROHS certificates, quality inspection reports, etc. to ensure the quality of the equipment. Choose us, choose success.
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00QoelygWPlAkn/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00QqBlnWhCwmbF/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)
![Auto Dry Food Weighing Packing Line Dry Fruits Packing Machine Dried Mango Packaging Machine Dry Fish Seaweed Packing Machine](http://img6.grofrom.com/www.yitaymachineshop.com/226f3j00aqBlyeibQdcN/Auto-Dry-Food-Weighing-Packing-Line-Dry-Fruits-Packing-Machine-Dried-Mango-Packaging-Machine-Dry-Fish-Seaweed-Packing-Machine.webp)
All machines on sale have CE certificate and ROHS certificate to ensure the safety of import, export and use of the machine.
As a company integrating R&D, production and sales, we have obtained 20+ patents, IOS9001 management certification and other qualifications.
It is an Alibaba Gold Merchant and an Alibaba Certified Strength Factory.
We provide complete machine installation and commissioning manuals and videos to ensure that the machine can be used as soon as you receive it.
Professional after-sales engineers escort customers, and the machine is guaranteed for life.When customers encounter problems during use, we will reply and provide solutions within 24 hours.
1.Does it support proofing service?
If it's necessary according to your requirements, we can make sample bags for your reference.
3.How to ensure that the customer receives the machine can be used normally?
4.What are the guarantees for after-sales service?
